Source : ORION-KL

Line : 12CO(3-2)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

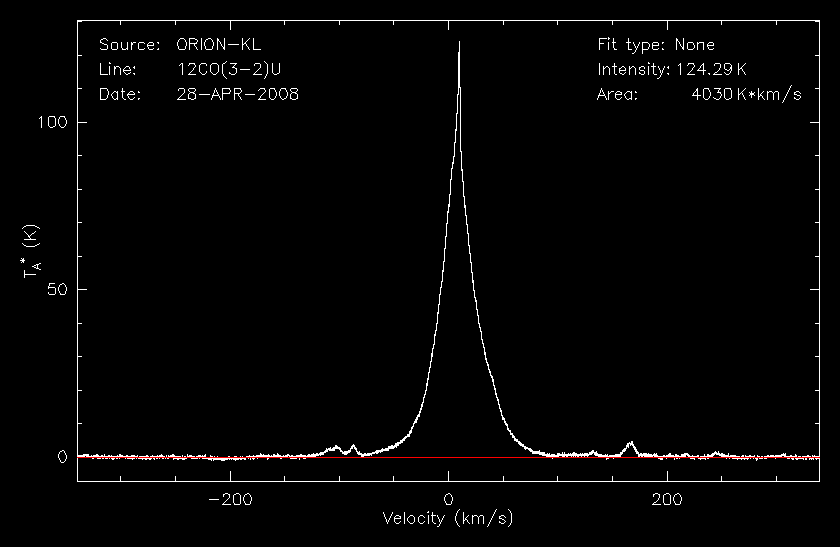

2008-04-28
1.18
40.0
124.29
4030.24
8.732
32.43

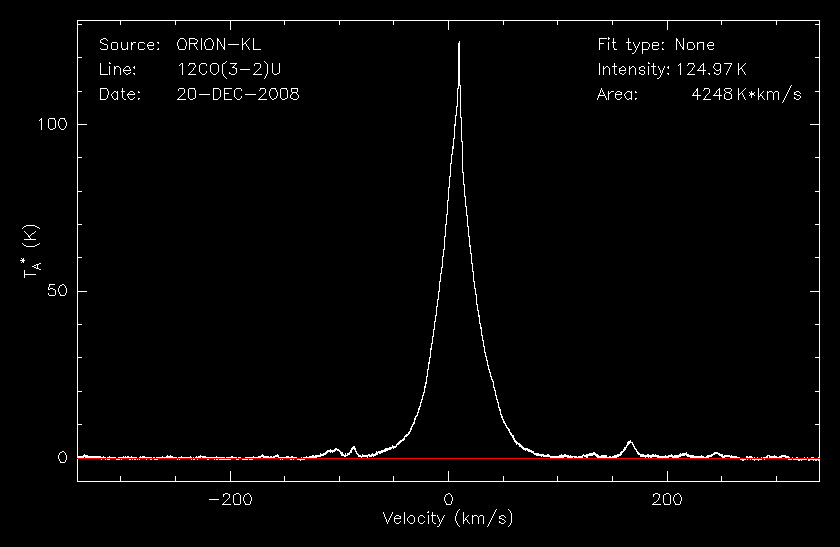

2008-12-20
0.99
66.9
124.98
4248.30
8.239
33.99

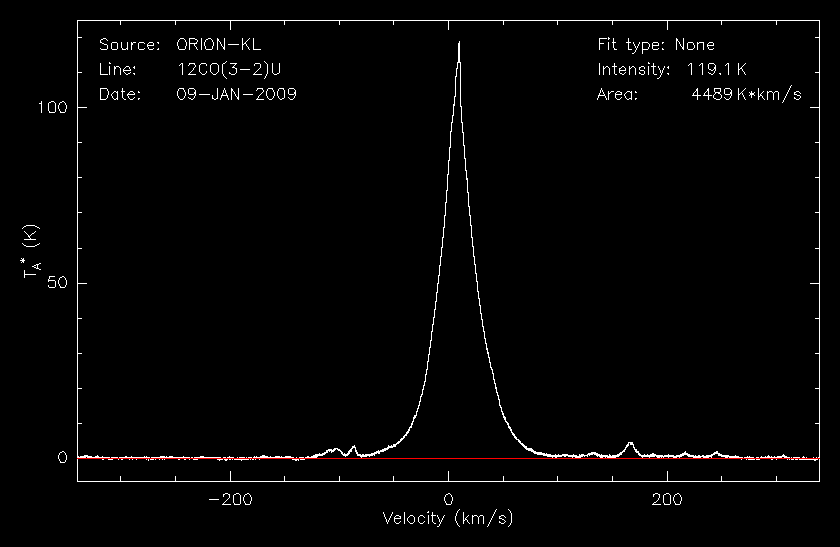

2009-01-09
0.51
31.6
119.11
4489.63
8.561
37.69
2009-07-11
0.12
47.6
108.71
3965.09
8.901
36.47

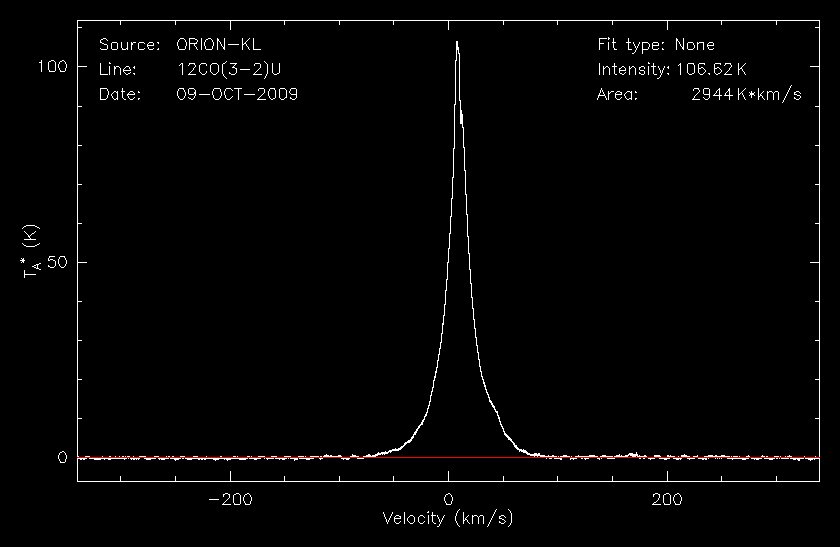

2009-10-09
0.87
69.2
106.63
2944.74
9.605
27.62

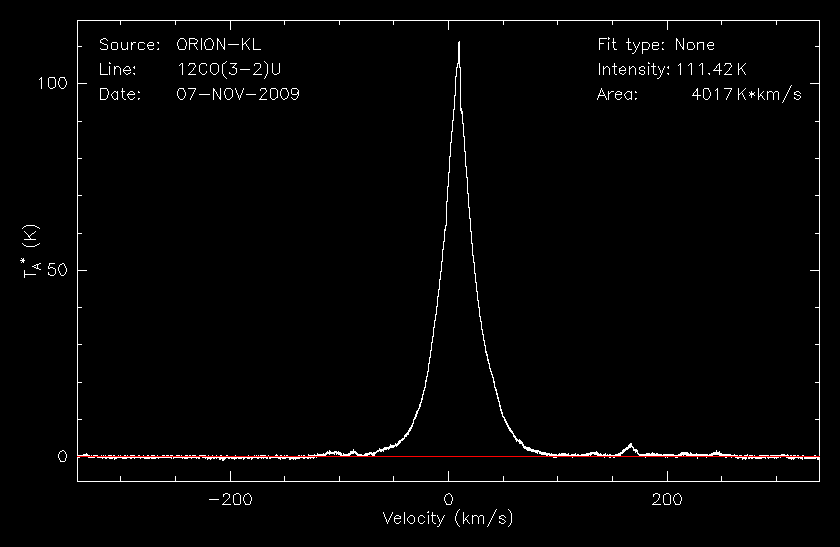

2009-11-07
1.06
37.1
111.43
4017.48
8.999
36.05

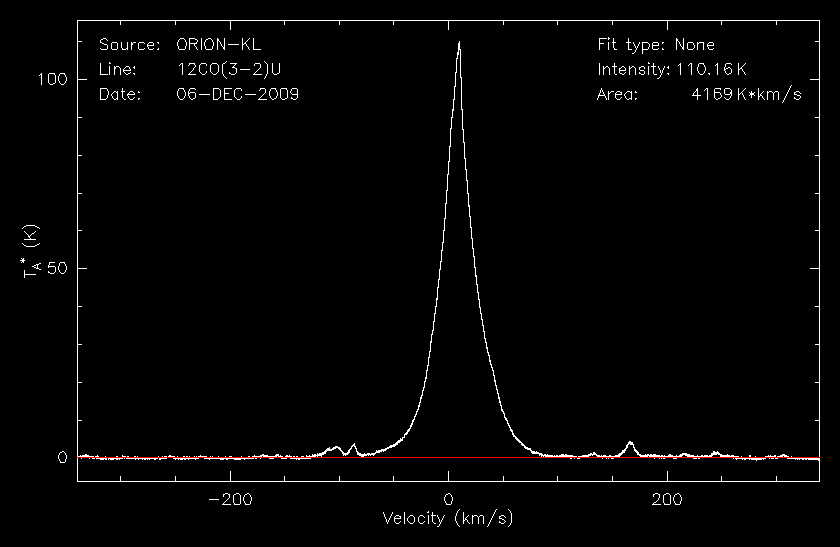

2009-12-06
0.71
45.3
110.16
4169.06
8.585
37.84

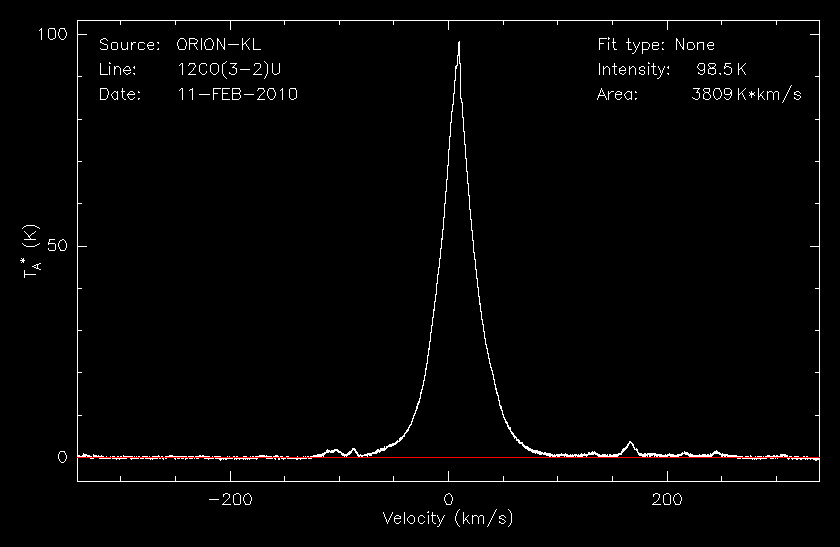

2010-02-11
0.59
50.9
98.50
3809.76
8.267
38.68

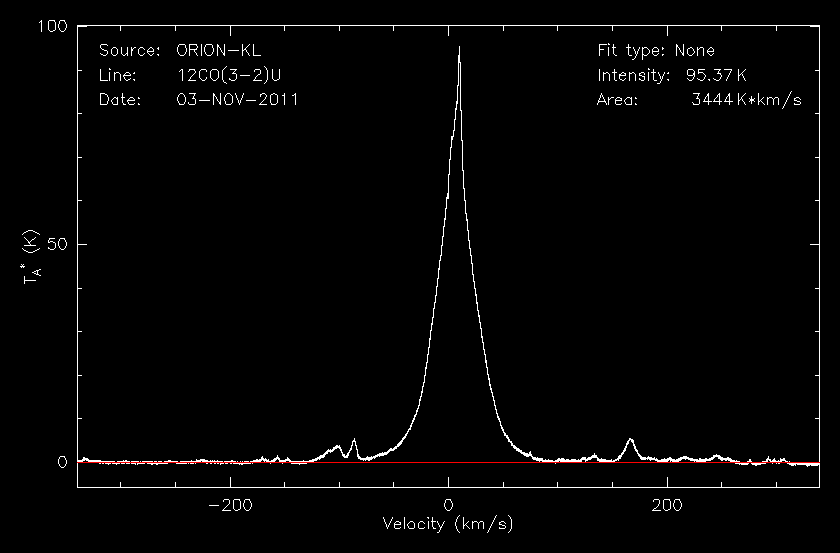

2011-11-03
0.47
72.2
95.38
3444.57
5.933
36.12

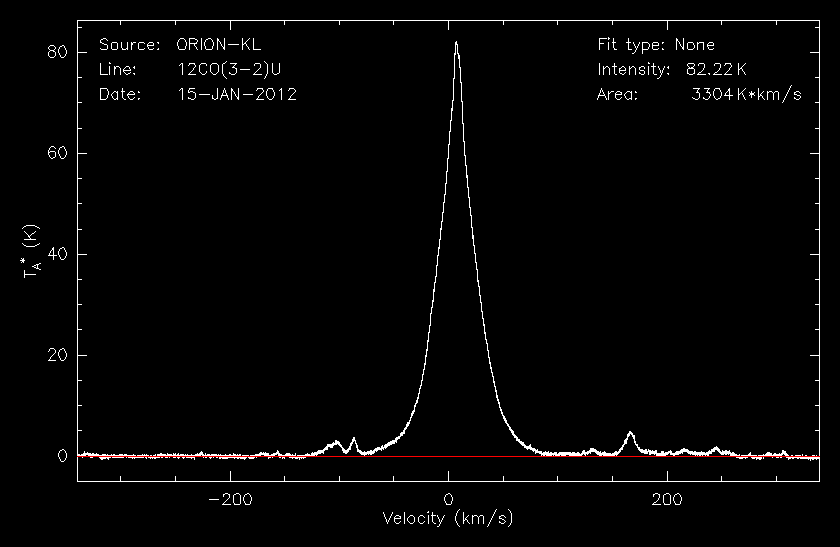

2012-01-15
1.25
71.4
82.22
3304.74
7.093
40.19
