Source : OMC1

Line : 12CO(3-2)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

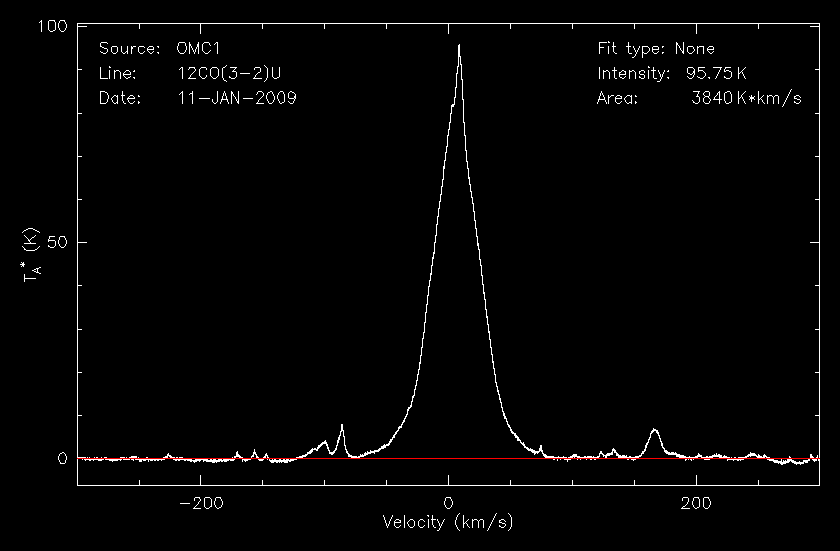

2009-01-11
0.78
59.1
95.75
3840.75
5.140
40.11

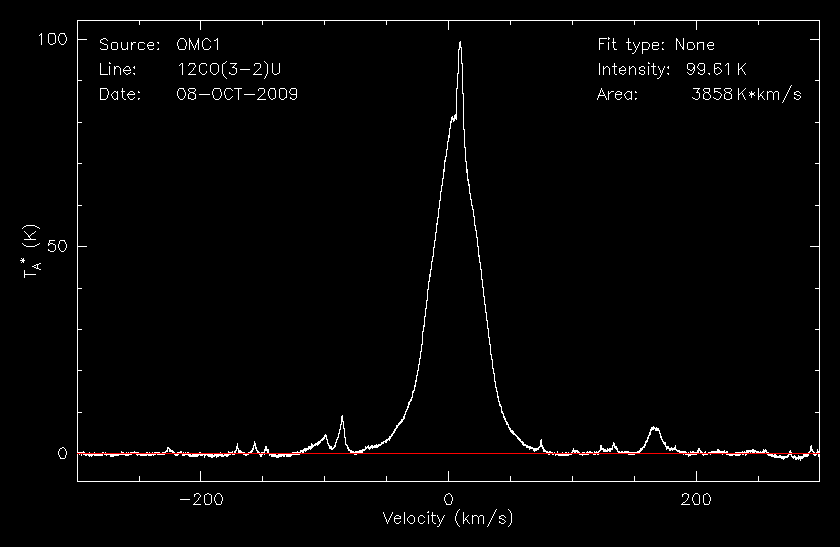

2009-10-08
0.96
51.9
99.62
3858.79
4.611
38.74

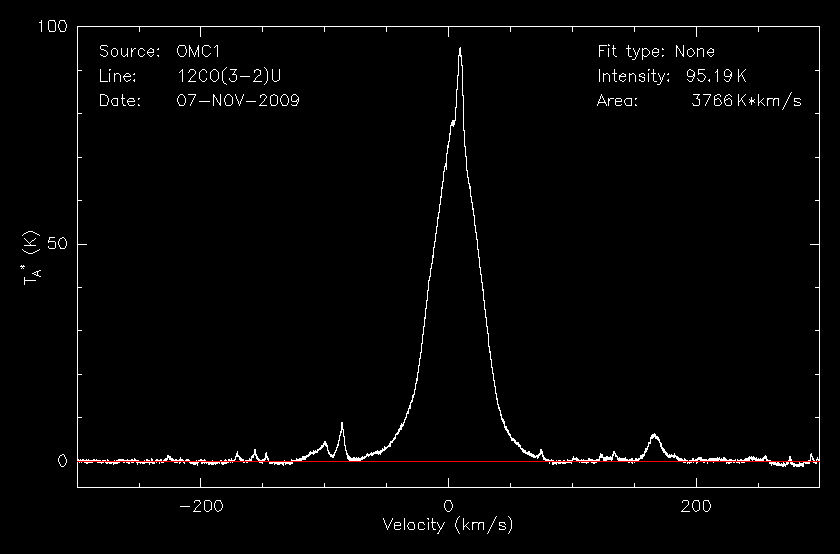

2009-11-07
1.34
50.6
95.19
3766.64
4.480
39.57

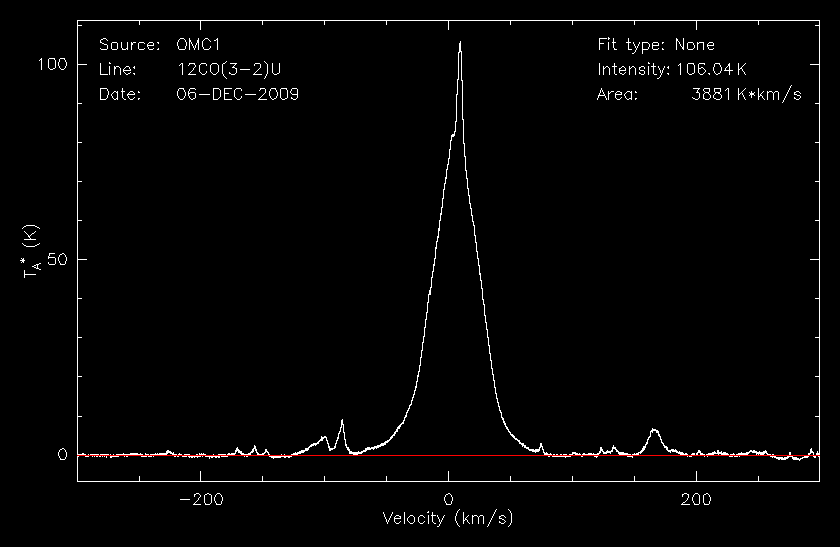

2009-12-06
0.50
38.4
106.04
3881.20
4.617
36.60
2010-02-10
1.49
41.7
91.03
3524.19
4.878
38.71

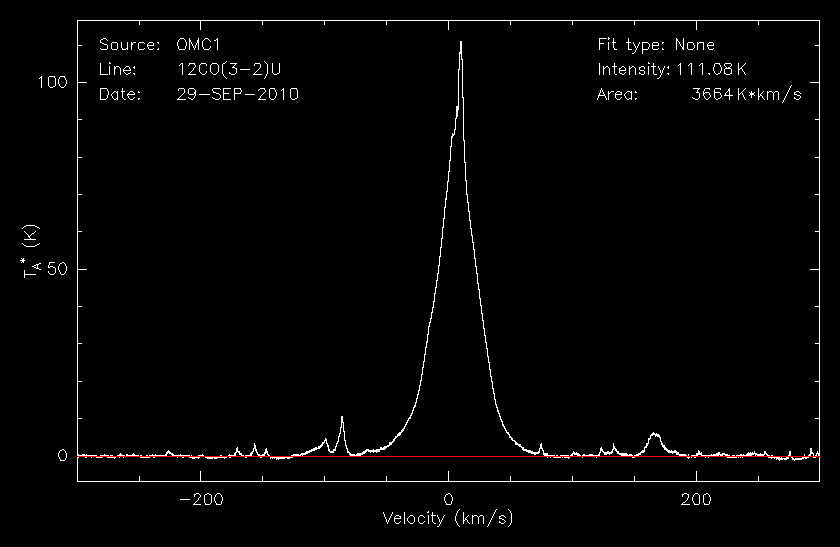

2010-09-29
0.64
56.0
111.08
3664.14
5.361
32.99
2010-12-08
1.20
39.8
108.61
4040.95
5.015
37.21

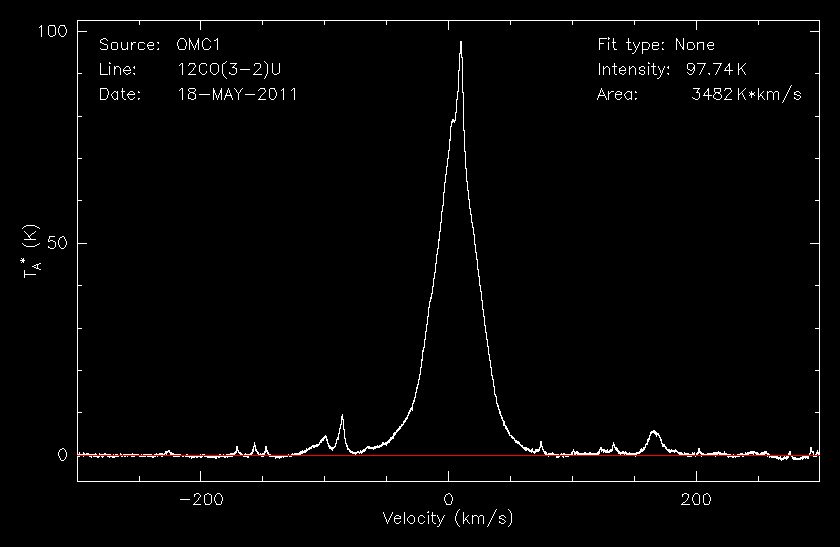

2011-05-18
1.22
55.2
97.74
3482.74
4.709
35.63

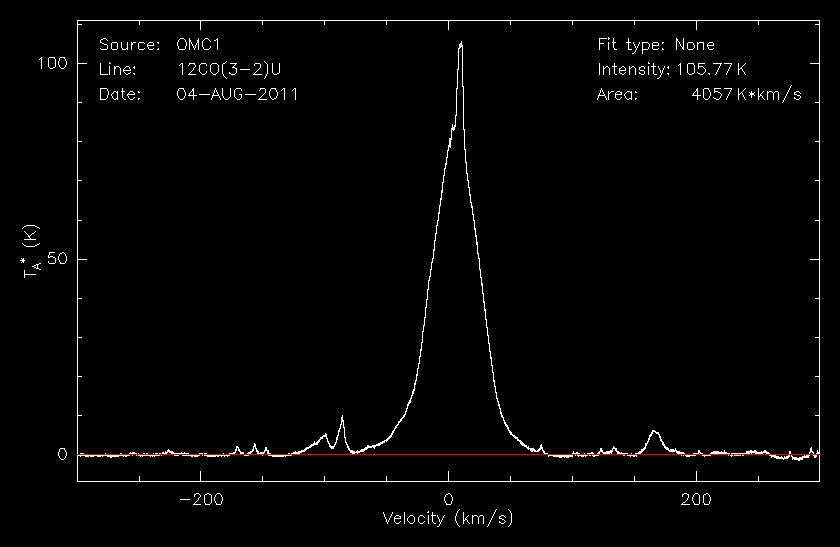

2011-08-04
0.31
43.8
105.78
4057.43
4.113
38.36

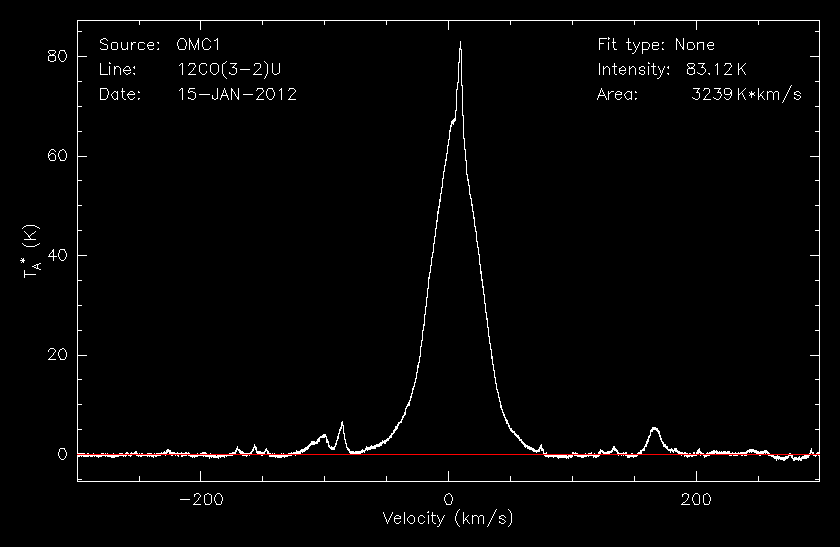

2012-01-15
0.61
45.9
83.13
3239.14
4.472
38.97

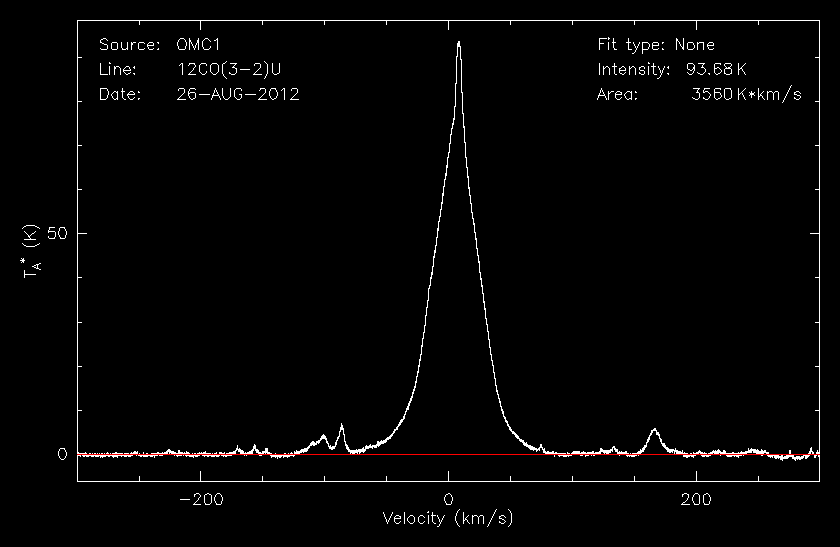

2012-08-26
1.50
67.6
93.68
3560.71
4.660
38.01

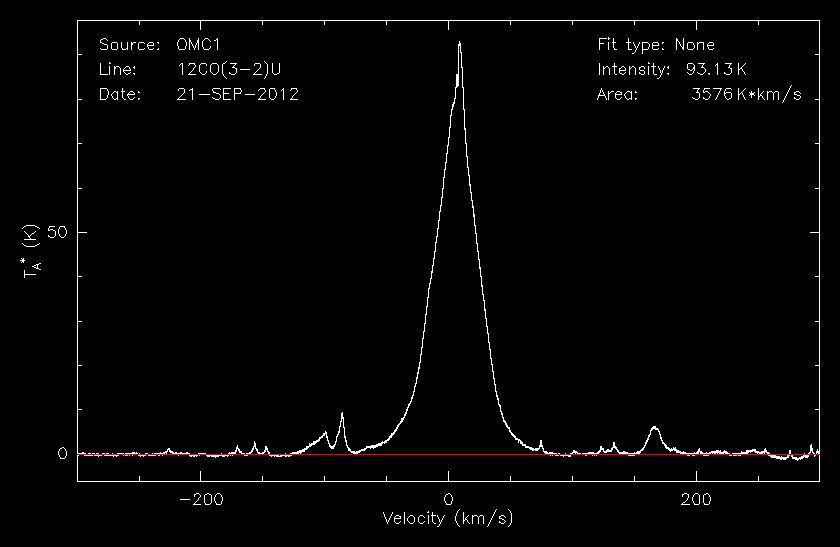

2012-09-21
0.27
57.1
93.13
3576.39
4.595
38.40

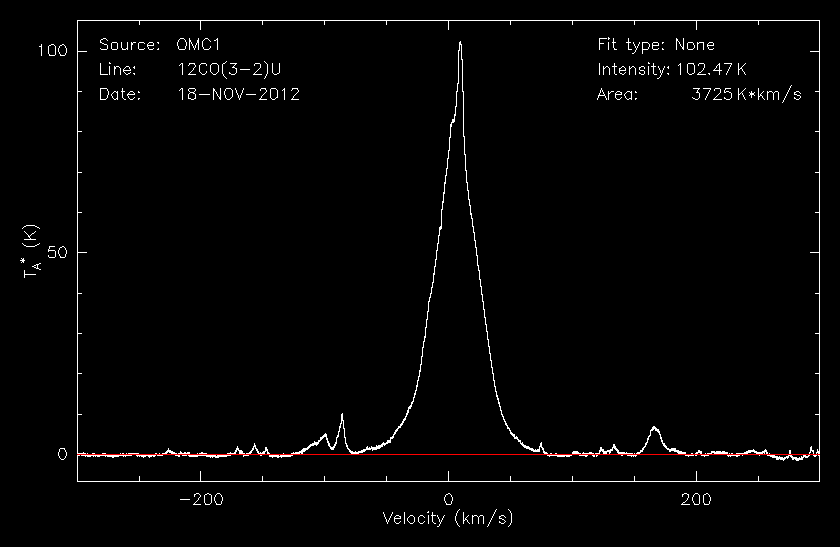

2012-11-18
0.75
60.5
102.47
3725.89
4.973
36.36

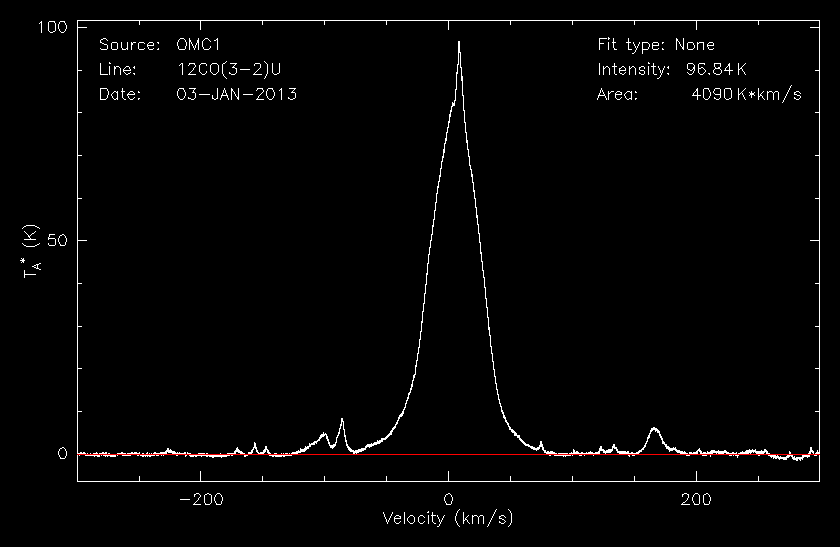

2013-01-03
0.87
59.0
96.84
4090.35
3.931
42.24
2013-01-05
1.16
70.4
100.02
3482.40
5.546
34.82

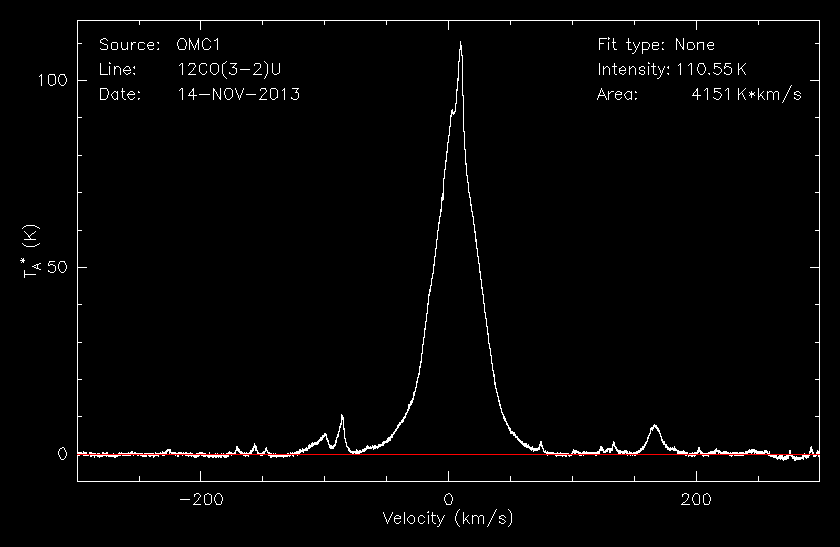

2013-11-14
1.72
56.1
110.55
4151.88
4.882
37.56
2013-11-29
0.71
48.2
111.51
4316.14
3.959
38.71

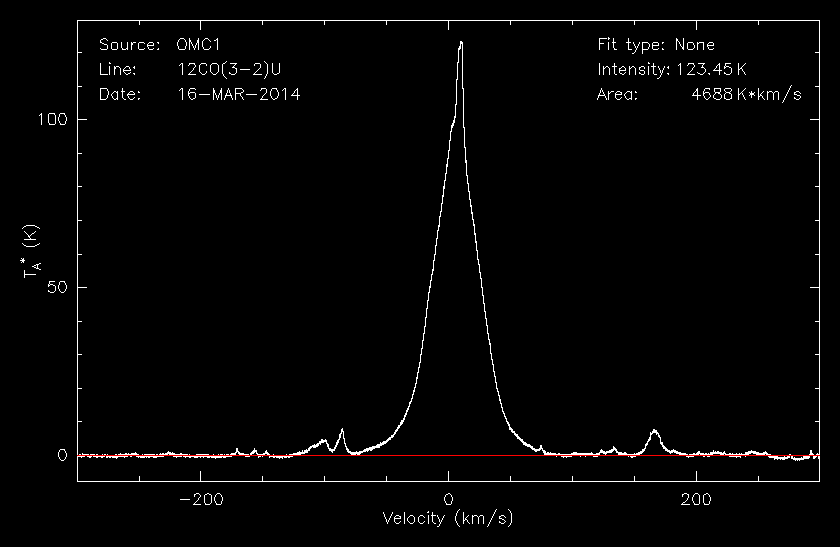

2014-03-16
1.01
40.6
123.45
4688.91
4.918
37.98

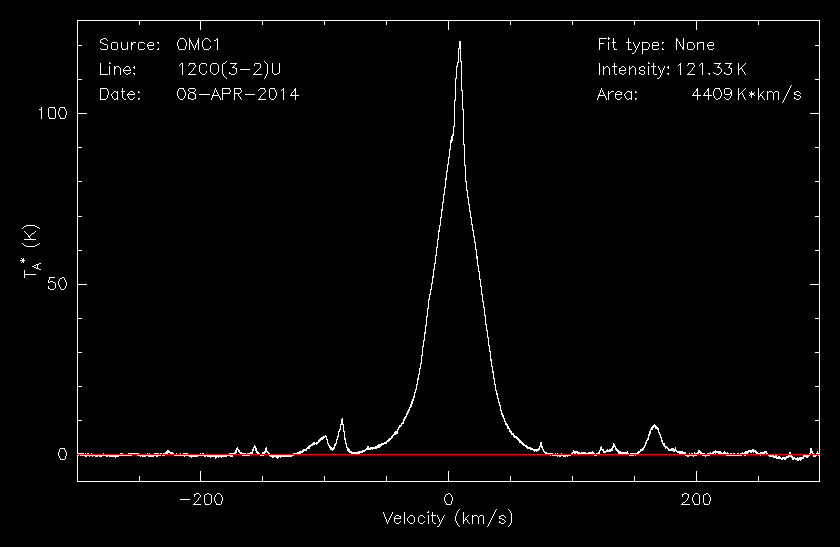

2014-04-08
0.76
70.8
121.33
4409.16
4.846
36.34

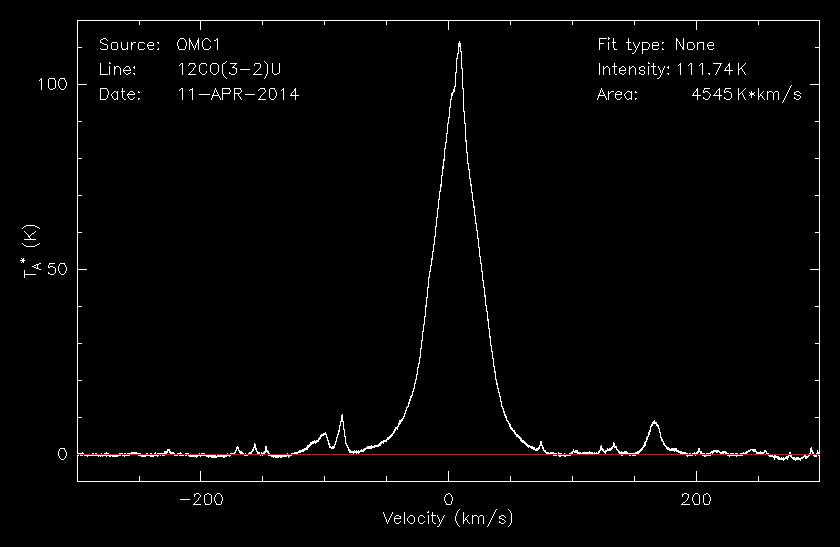

2014-04-11
1.69
64.2
111.75
4545.86
4.838
40.68

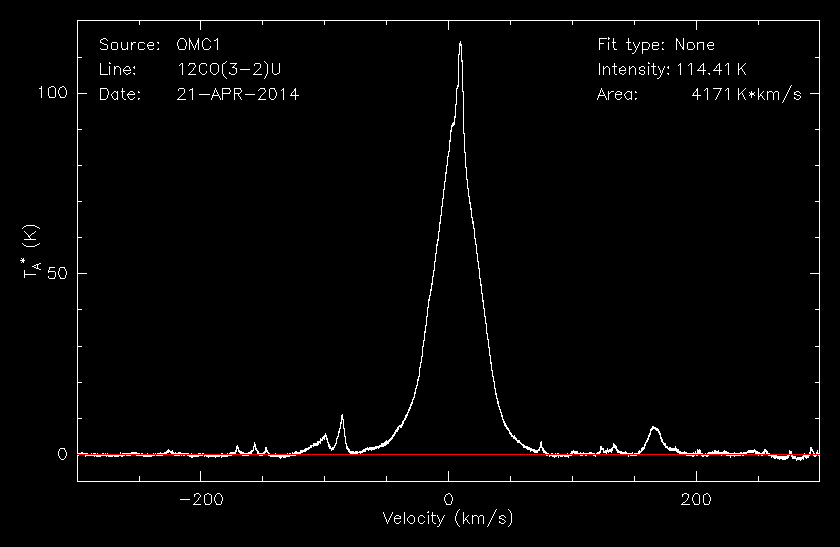

2014-04-21
1.02
61.6
114.42
4171.48
4.818
36.46
2014-08-22
0.96
66.6
104.62
3780.94
5.101
36.14

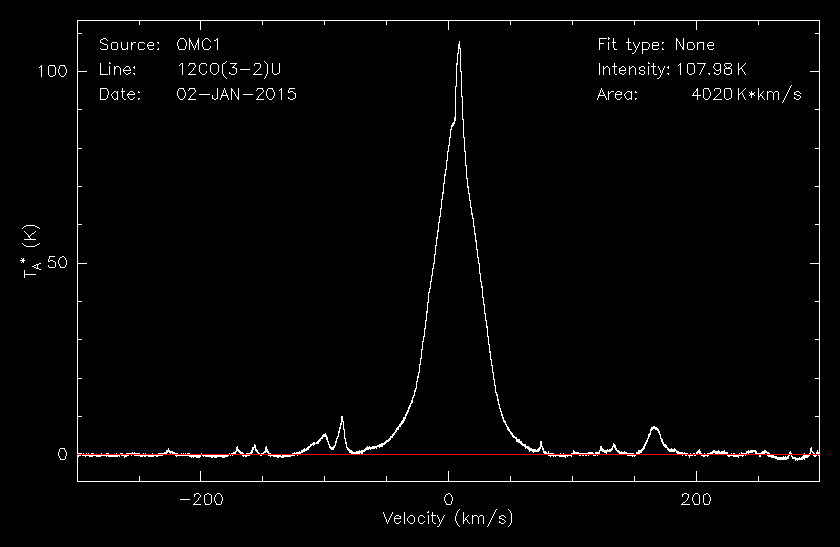

2015-01-02
0.94
66.7
107.98
4020.92
4.657
37.24

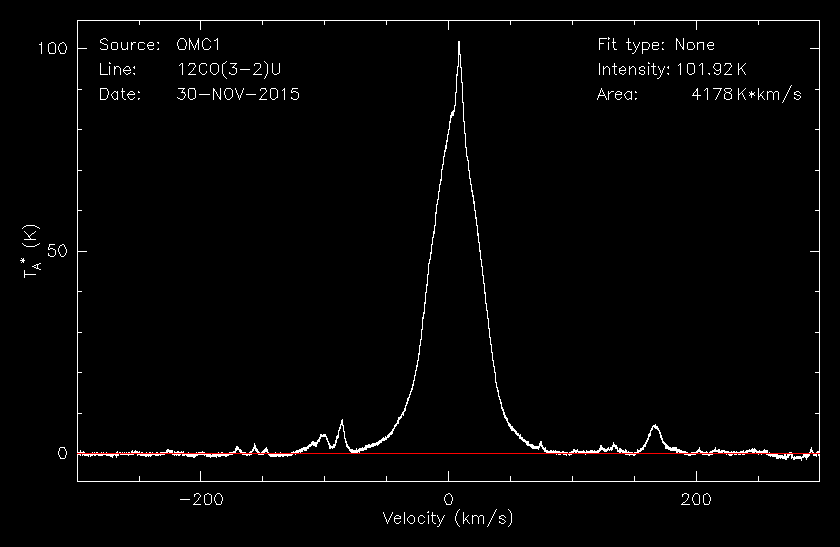

2015-11-30
1.57
59.4
101.93
4178.40
4.248
40.99

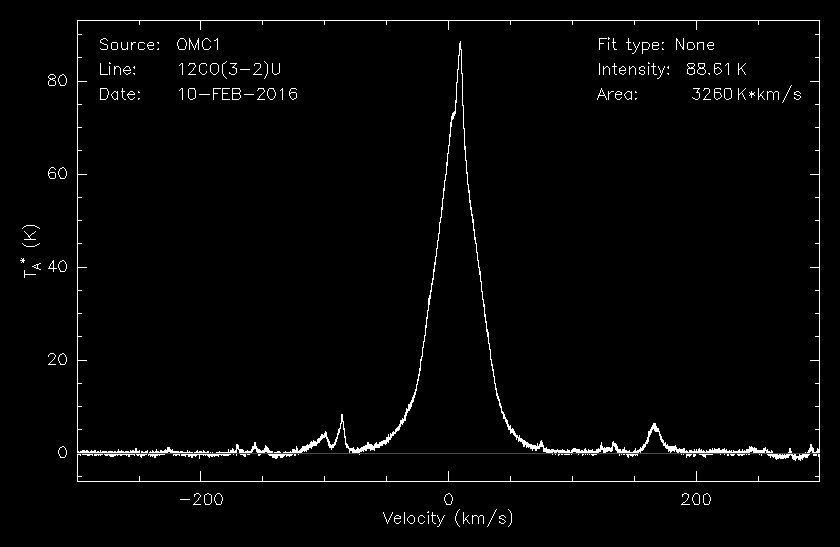

2016-02-10
2.32
39.7
88.62
3260.48
5.044
36.79

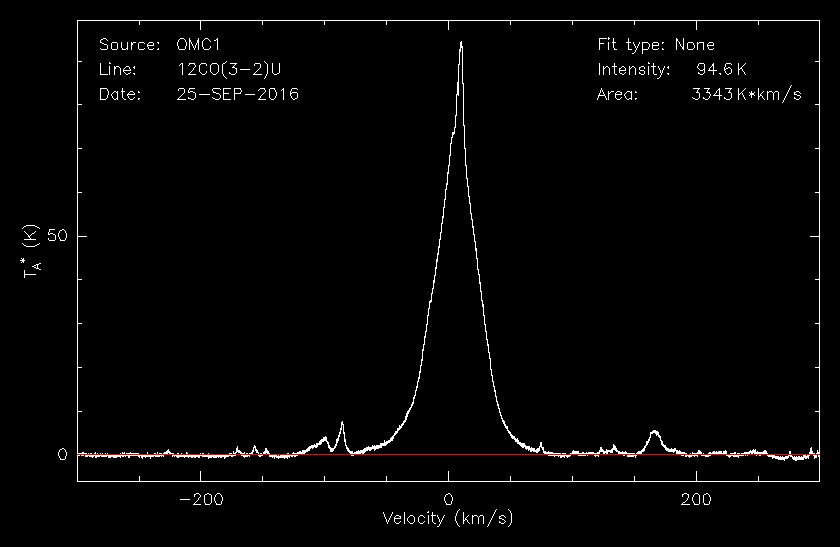

2016-09-25
1.01
39.5
94.60
3343.37
4.897
35.34

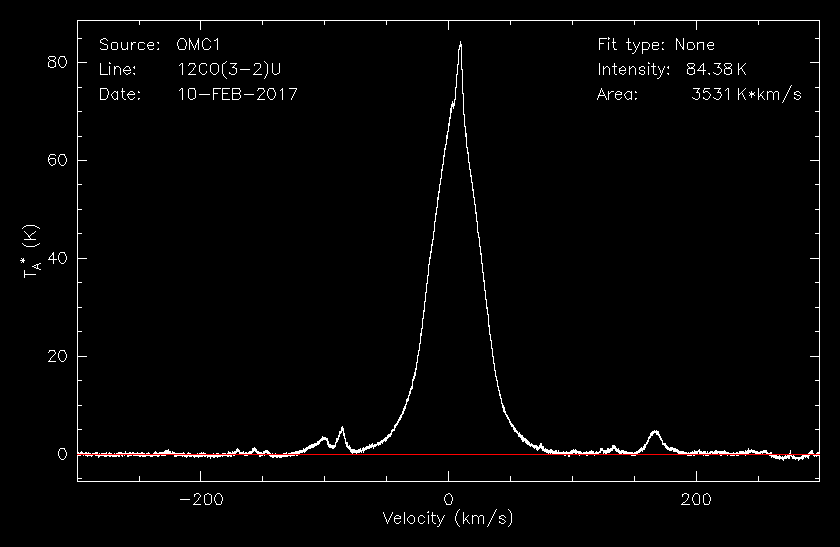

2017-02-10
1.42
42.5
84.39
3531.37
4.493
41.85
