Source : N2071IR

Line : C18O(3-2)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

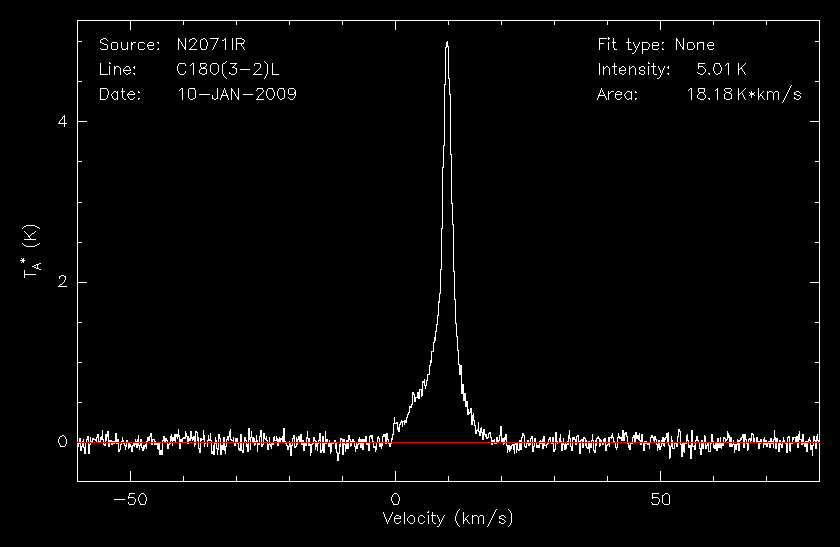

2009-01-10
0.29
54.7
5.01
18.19
9.049
3.63
2009-10-09
0.53
33.0
4.41
16.76
8.847
3.80

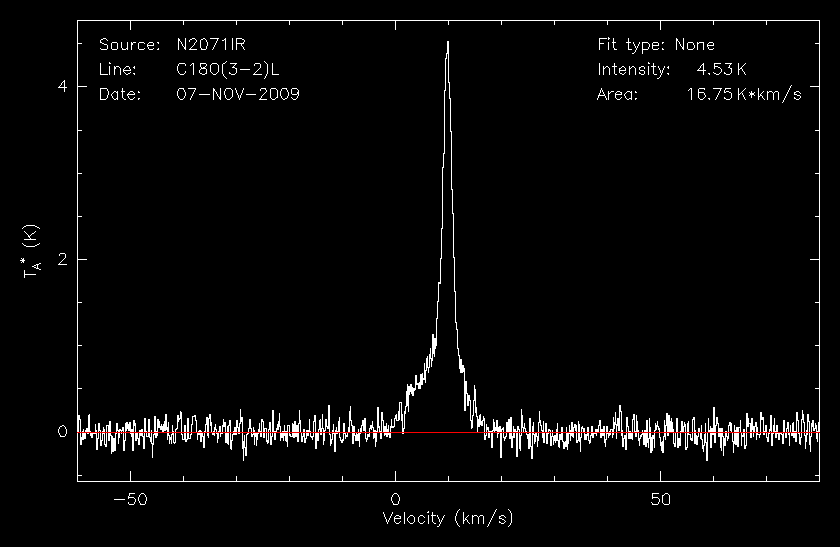

2009-11-07
1.12
52.8
4.53
16.75
8.071
3.70

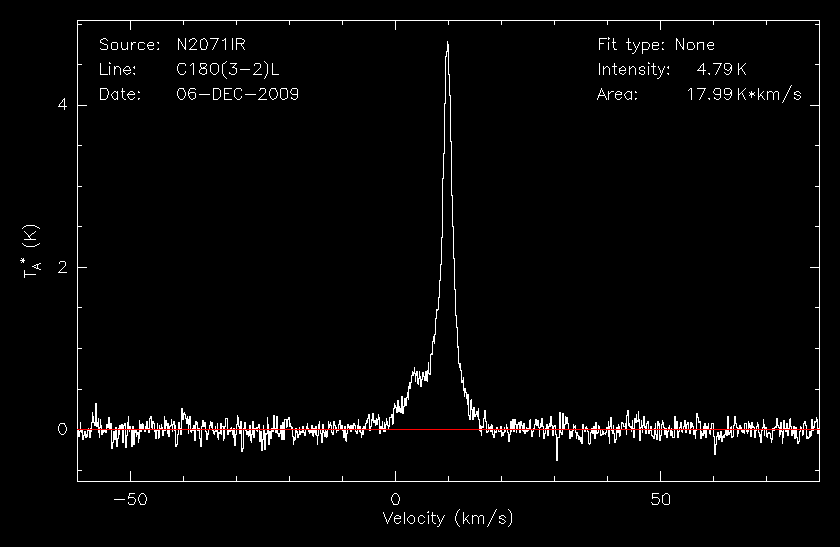

2009-12-06
0.61
50.1
4.79
17.99
8.368
3.76
2010-02-11
0.82
55.0
5.22
17.63
8.434
3.38

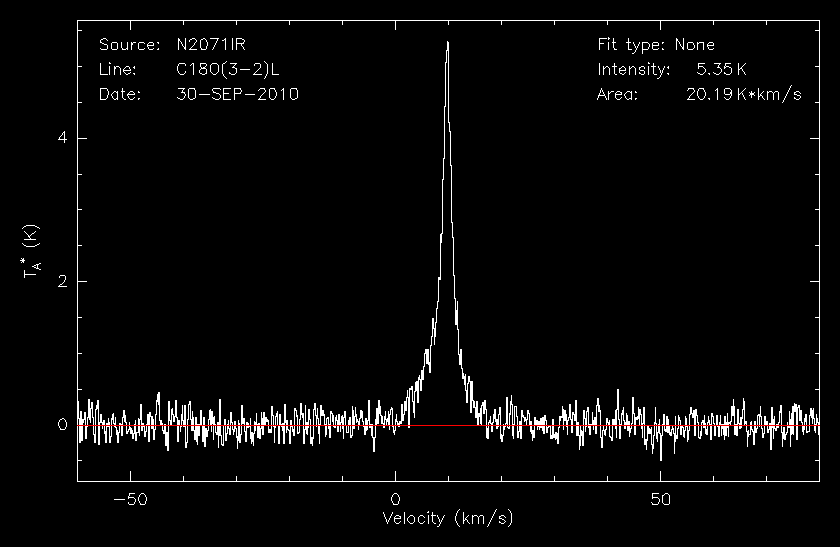

2010-09-30
0.65
41.1
5.35
20.19
8.836
3.77

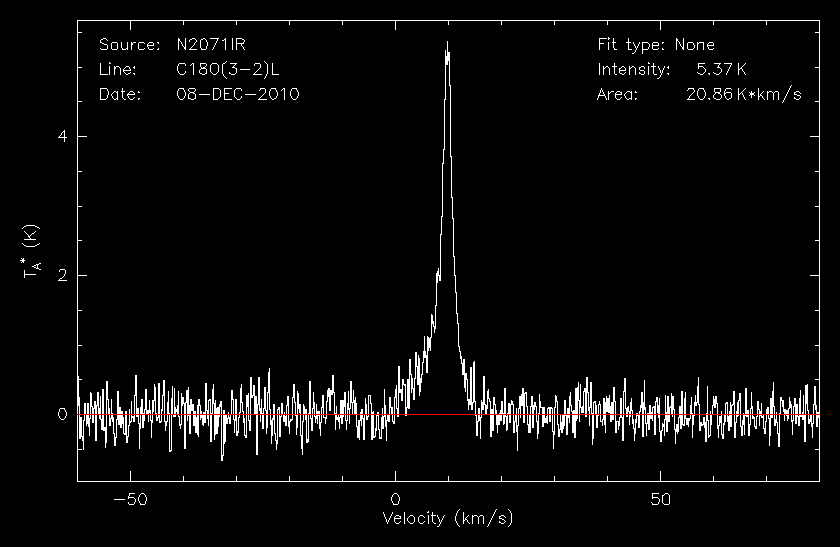

2010-12-08
1.47
52.4
5.37
20.87
9.097
3.88

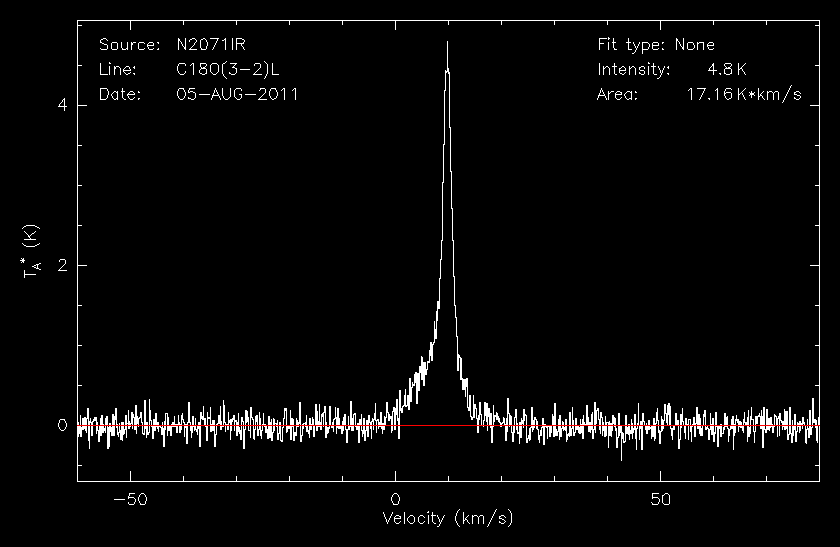

2011-08-05
0.47
51.8
4.80
17.17
8.299
3.57

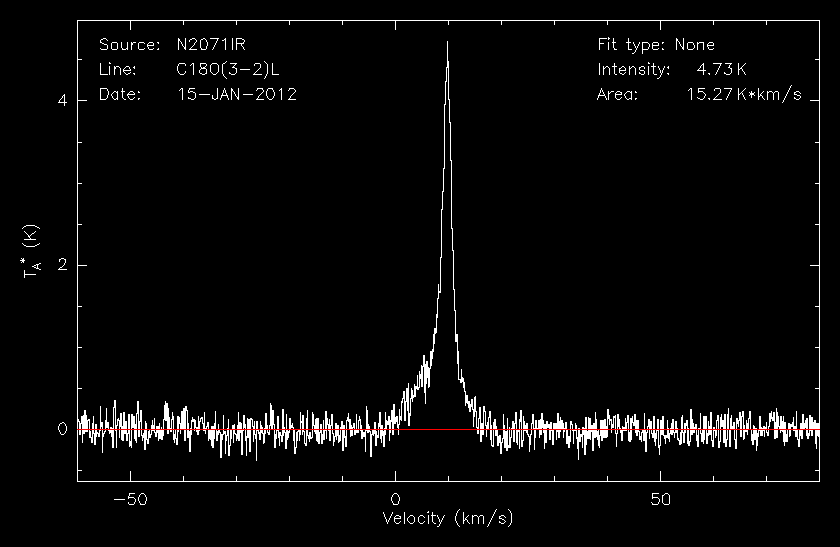

2012-01-15
0.55
48.7
4.73
15.27
8.373
3.23

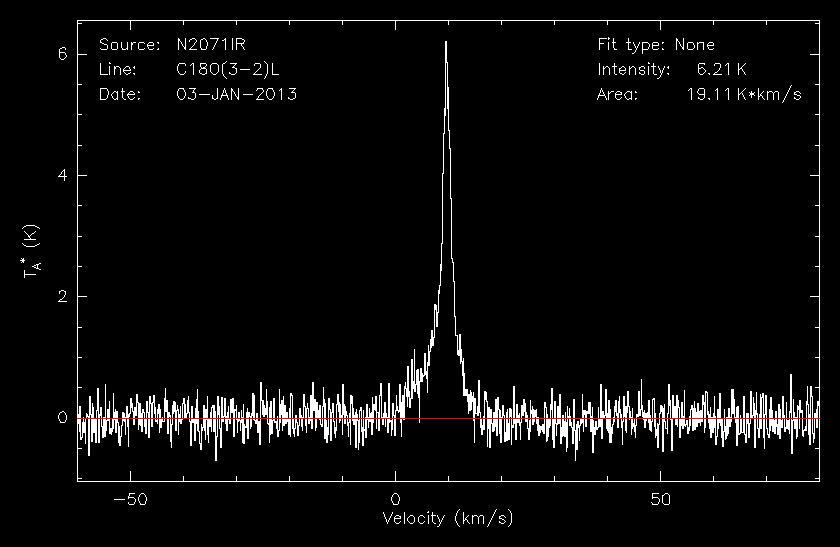

2013-01-03
1.07
56.4
6.22
19.11
7.551
3.07

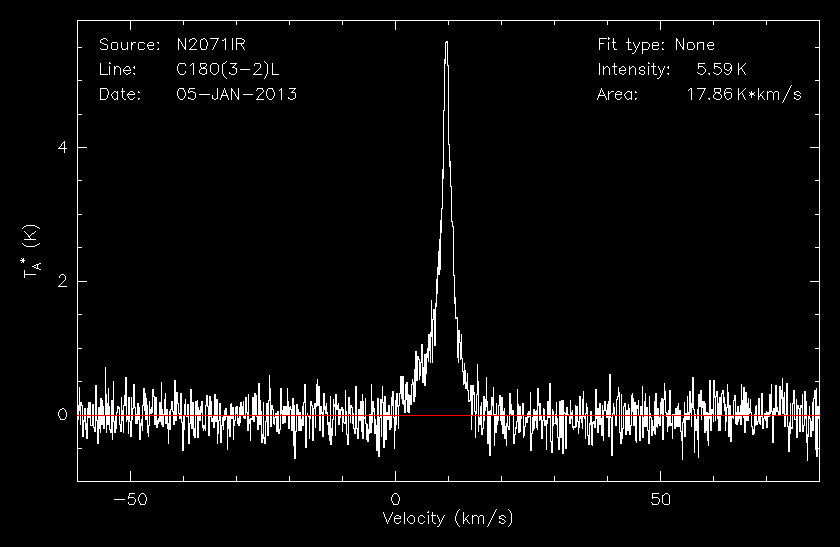

2013-01-05
1.17
61.0
5.59
17.86
7.746
3.19

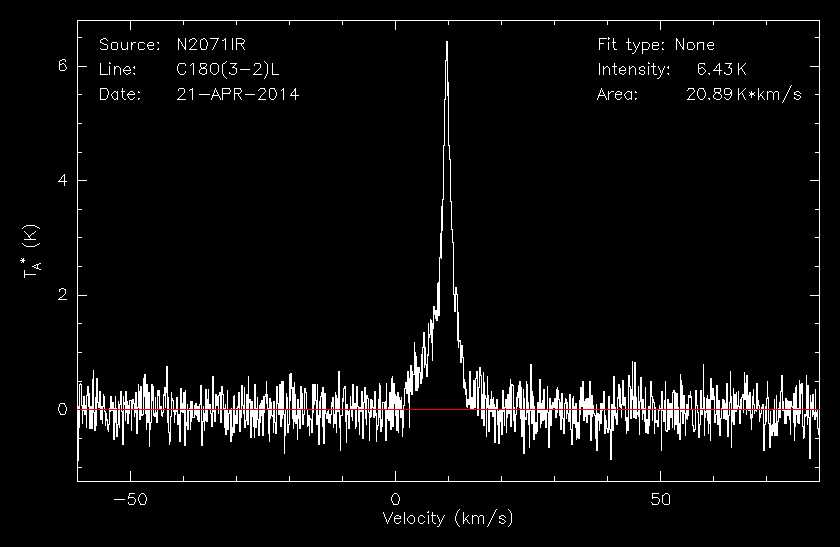

2014-04-21
1.15
66.5
6.44
20.89
8.547
3.25

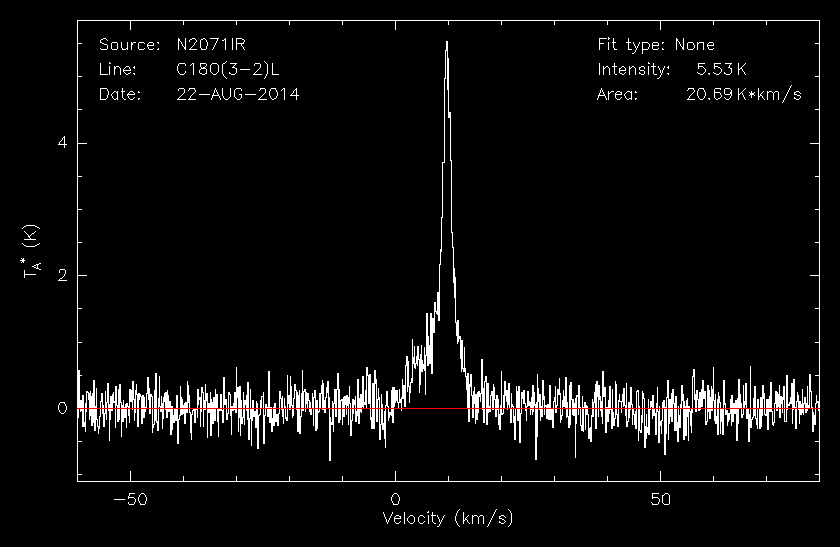

2014-08-22
0.87
46.4
5.54
20.70
8.178
3.74

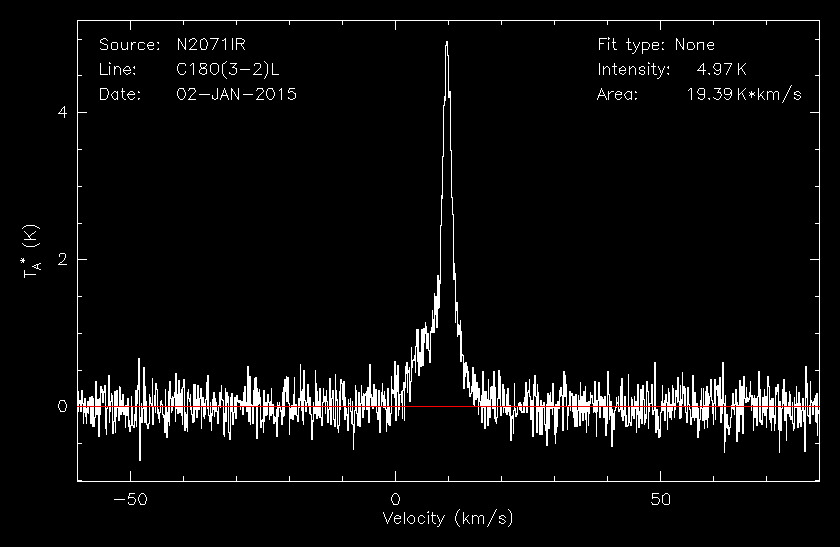

2015-01-02
0.73
43.9
4.98
19.40
8.649
3.90

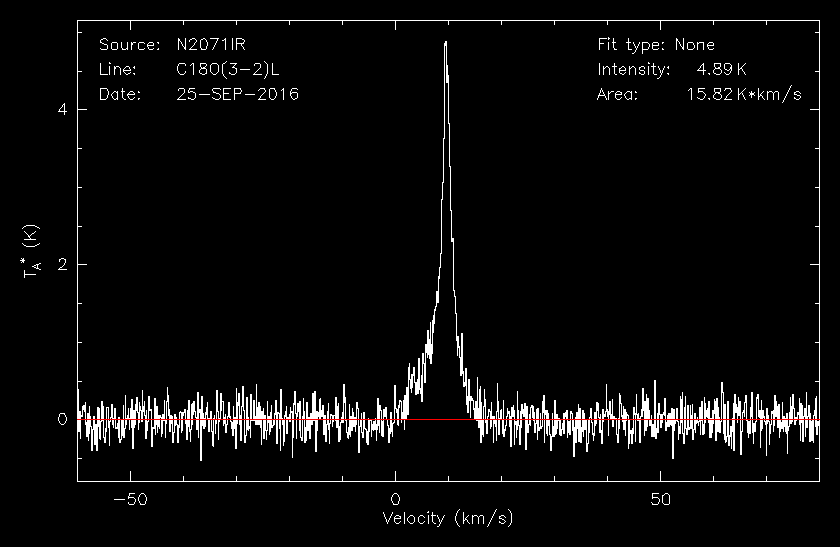

2016-09-25
0.82
54.2
4.89
15.82
8.485
3.24

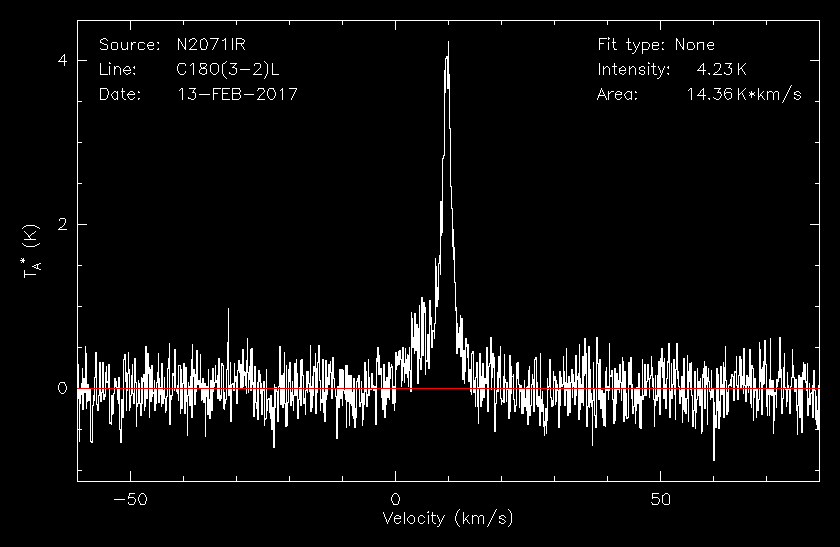

2017-02-13
0.76
26.8
4.24
14.36
7.794
3.39
