Source : G34.3

Line : HCN(4-3)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

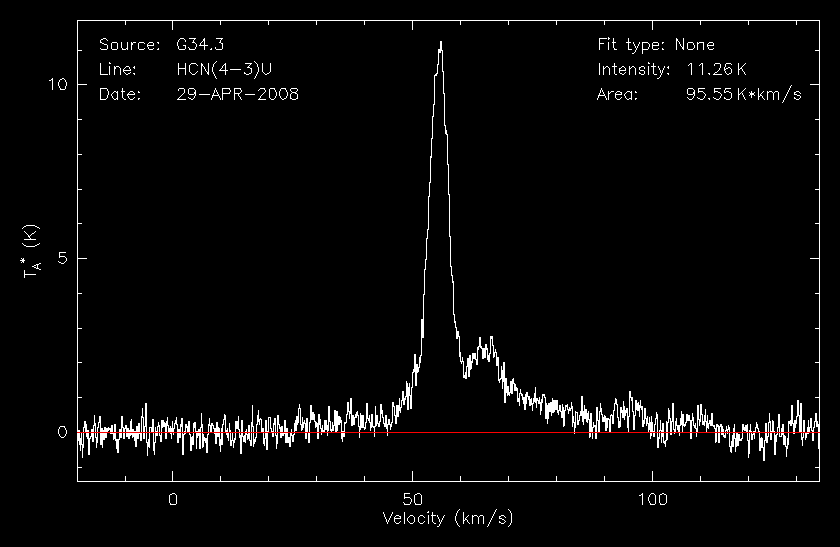

2008-04-29
1.56
54.2
11.26
95.55
59.775
8.48

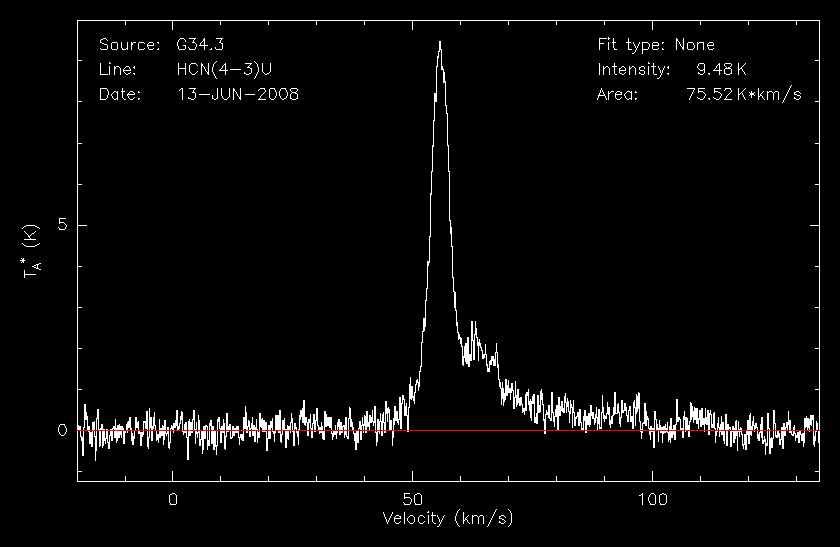

2008-06-13
1.21
39.7
9.48
75.52
59.749
7.96

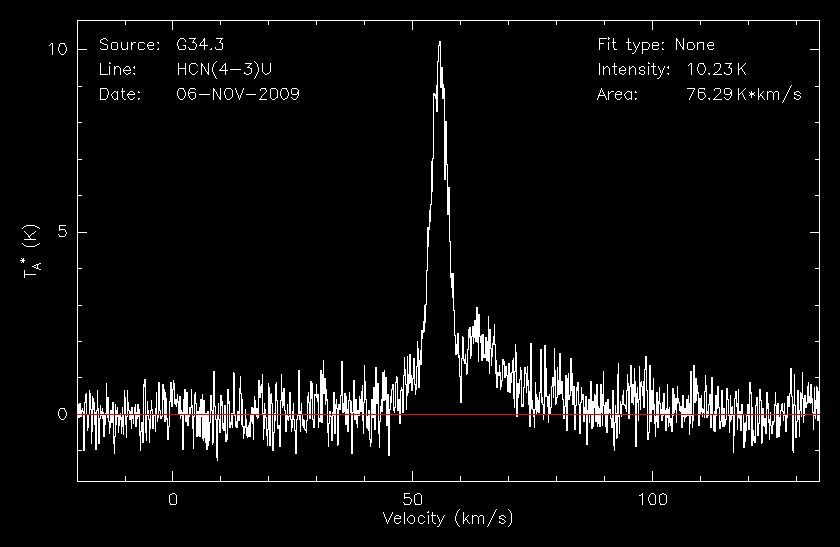

2009-11-06
2.79
35.1
10.24
76.30
59.815
7.45

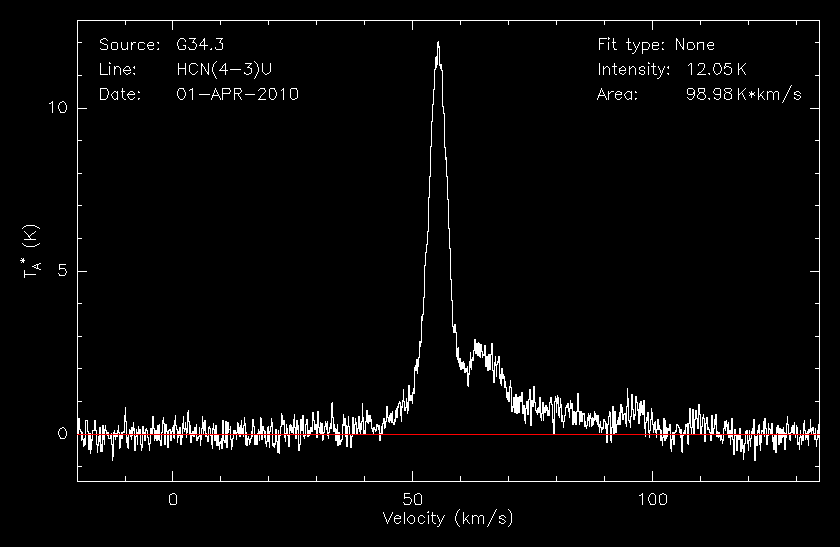

2010-04-01
1.59
46.4
12.06
98.99
59.666
8.21

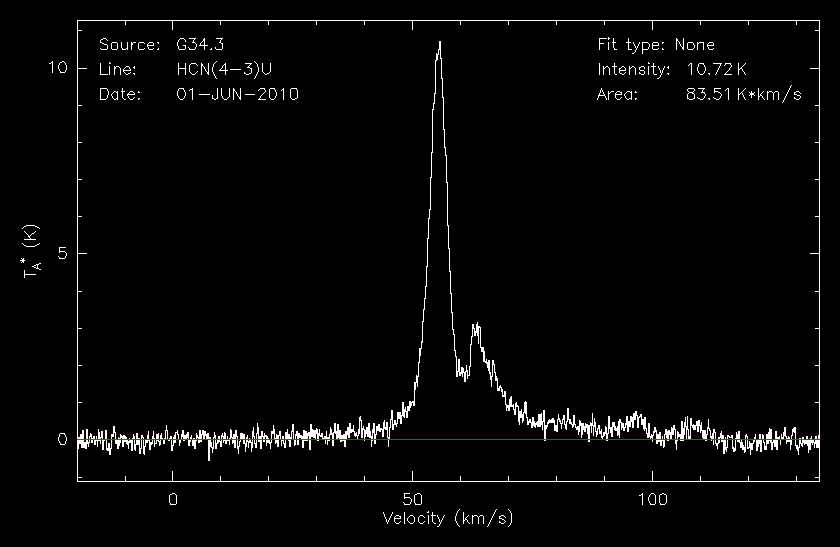

2010-06-01
0.61
51.4
10.73
83.51
59.271
7.79

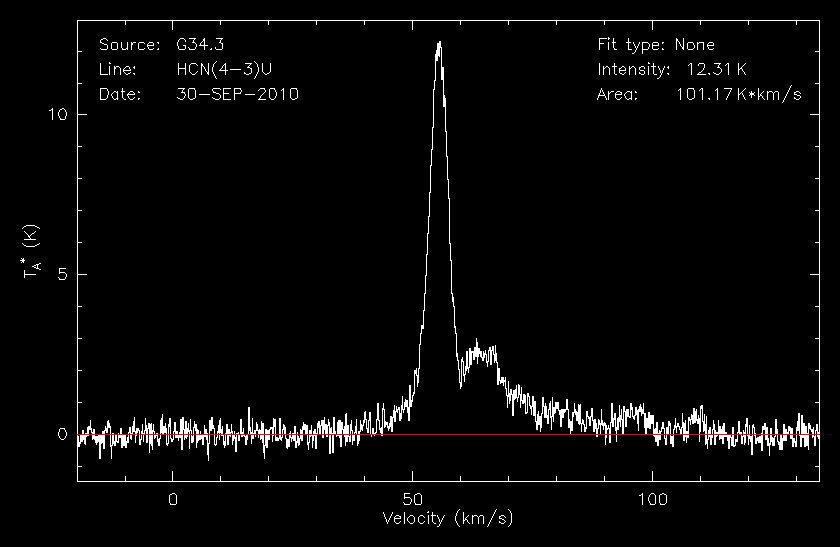

2010-09-30
1.25
35.1
12.31
101.17
59.698
8.22

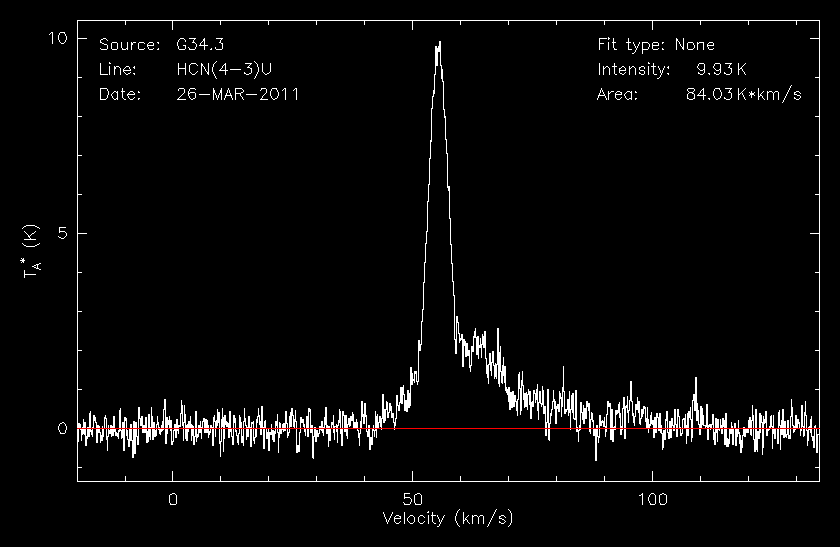

2011-03-26
2.33
63.1
9.93
84.04
59.438
8.46

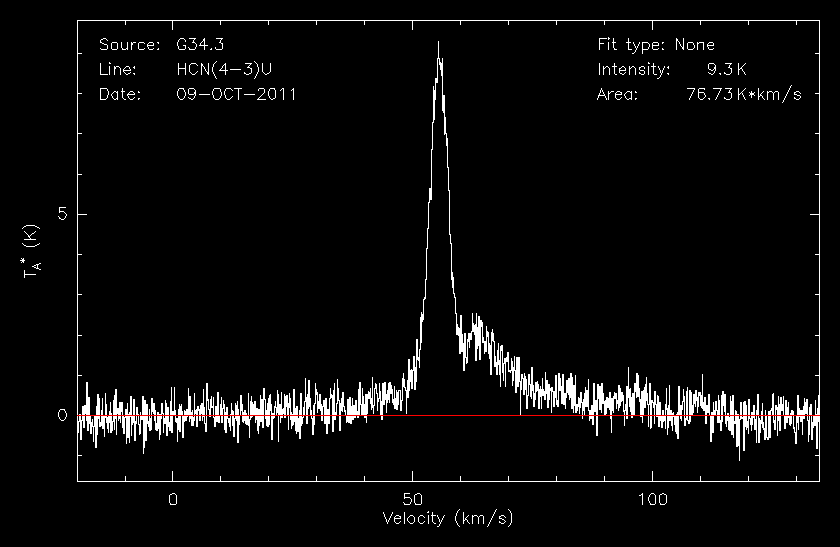

2011-10-09
1.39
35.1
9.30
76.74
59.905
8.25

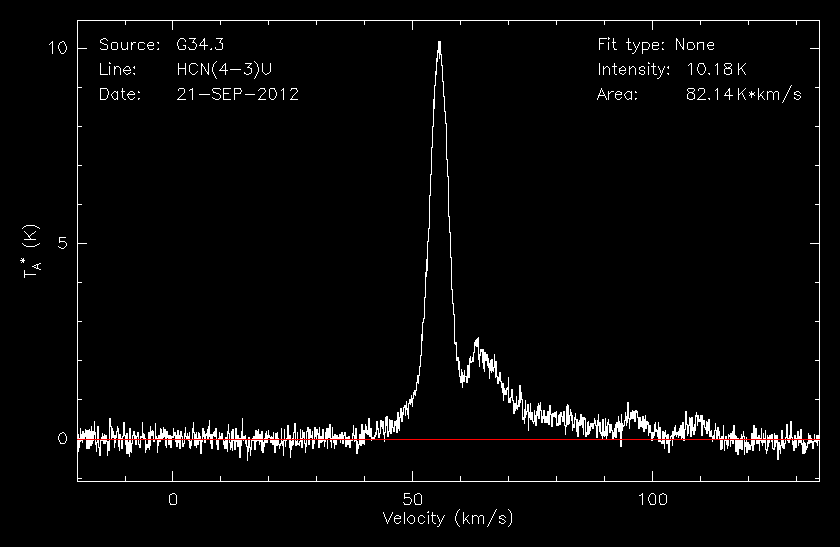

2012-09-21
0.93
43.9
10.18
82.15
59.643
8.07

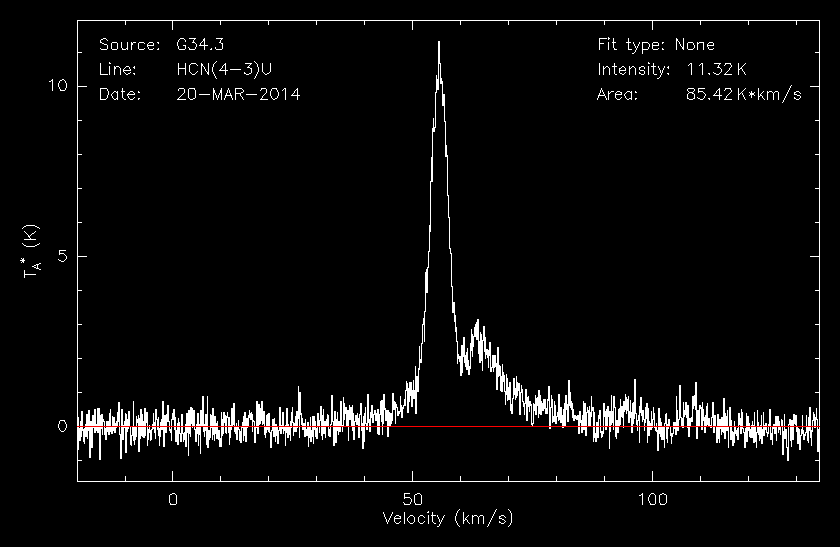

2014-03-20
1.66
35.6
11.33
85.43
59.549
7.54

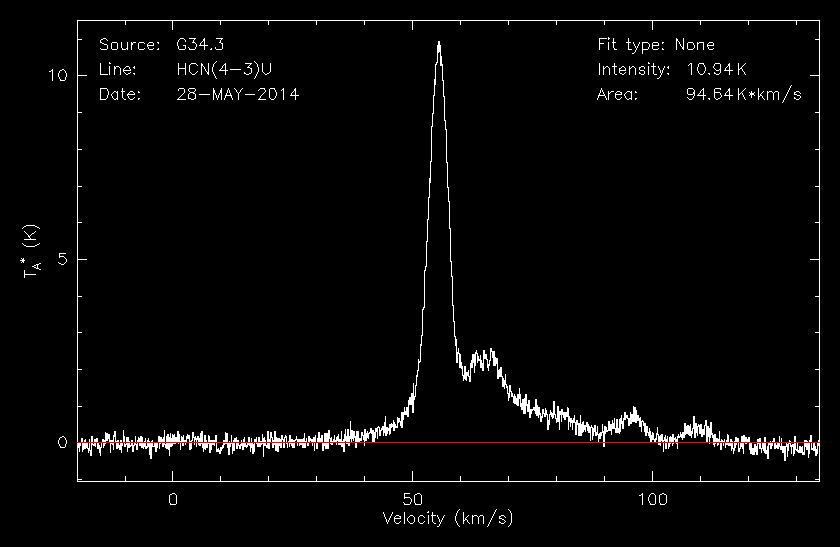

2014-05-28
0.42
51.7
10.95
94.65
60.006
8.64
2014-07-22
1.90
42.9
10.85
89.13
59.978
8.21

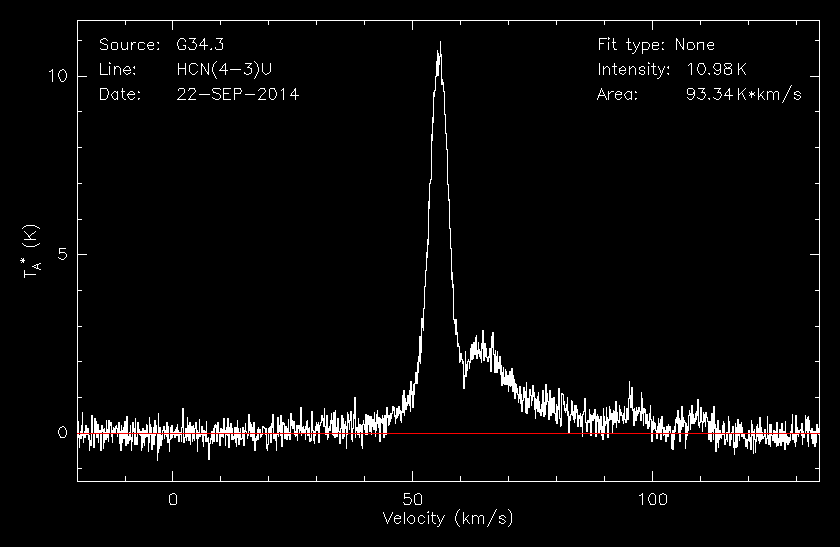

2014-09-22
1.94
52.7
10.99
93.34
60.036
8.50

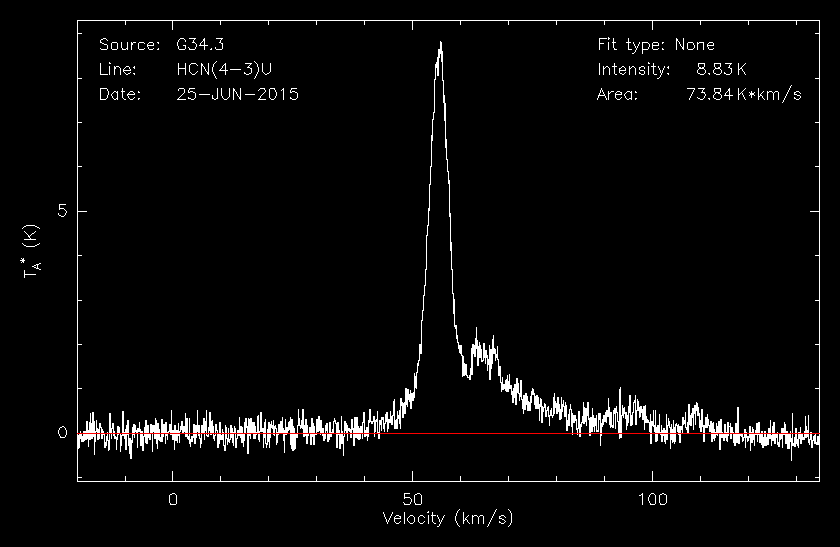

2015-06-25
0.83
38.0
8.84
73.85
59.731
8.36
2015-07-25
1.23
56.2
9.02
75.13
59.843
8.33

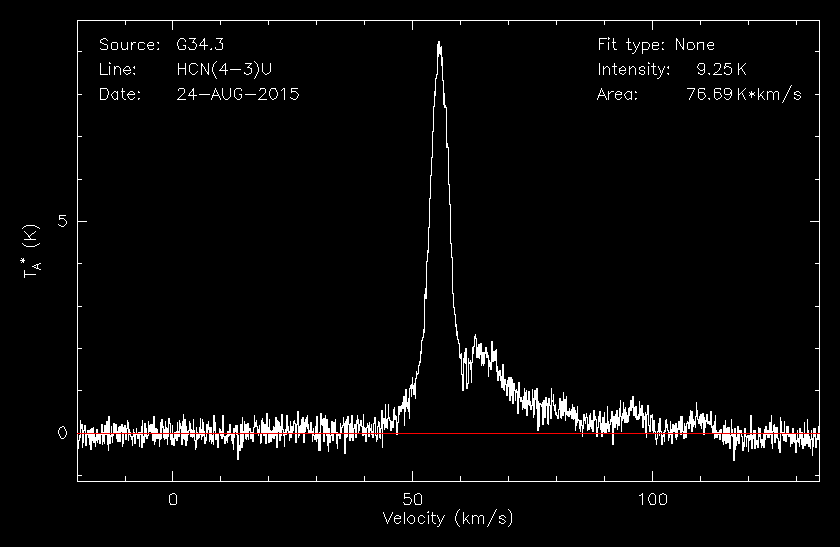

2015-08-24
1.19
50.7
9.26
76.70
59.947
8.29
2016-07-23
1.18
51.1
10.09
82.17
59.880
8.15
