Home > Instrumentation > SHeFI receivers > APEX-2 (345 GHz) > APEX-2 Calibration

Source : G34.3

Line : CH3OH(7-6)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s]Linewidth [km/s]Spectrum

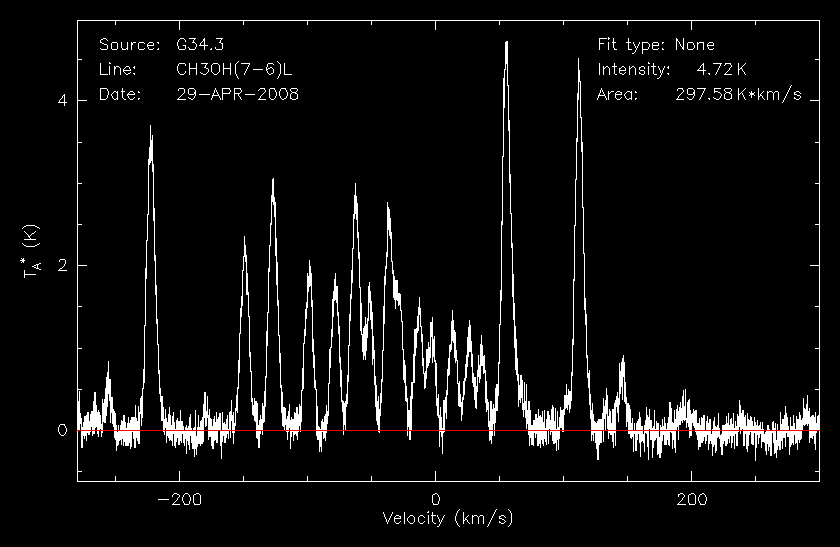

2008-04-29
0.78
55.9
4.73
297.59
---
---

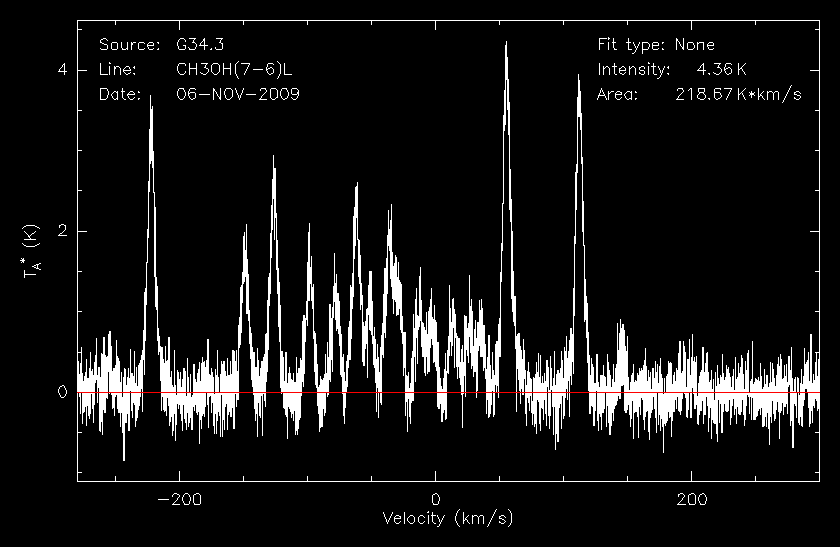

2009-11-06
2.31
33.1
4.36
218.67
---
---

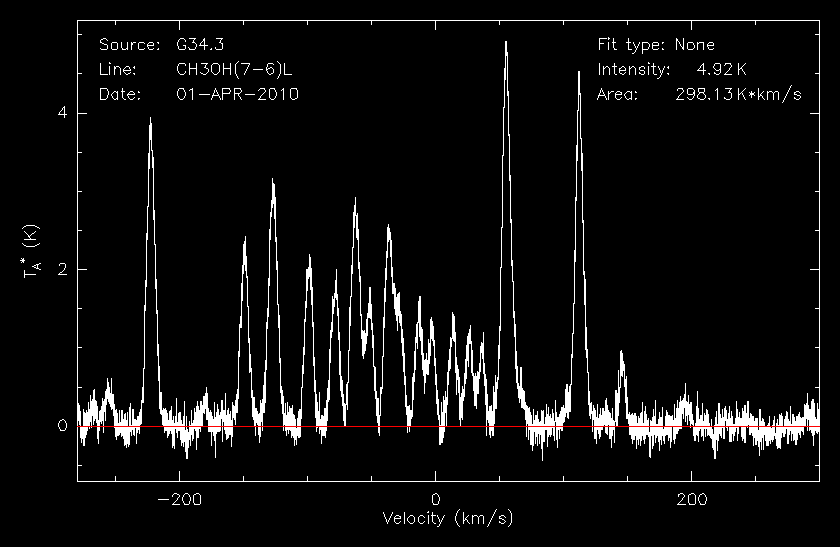

2010-04-01
1.08
48.6
4.92
298.14
---
---

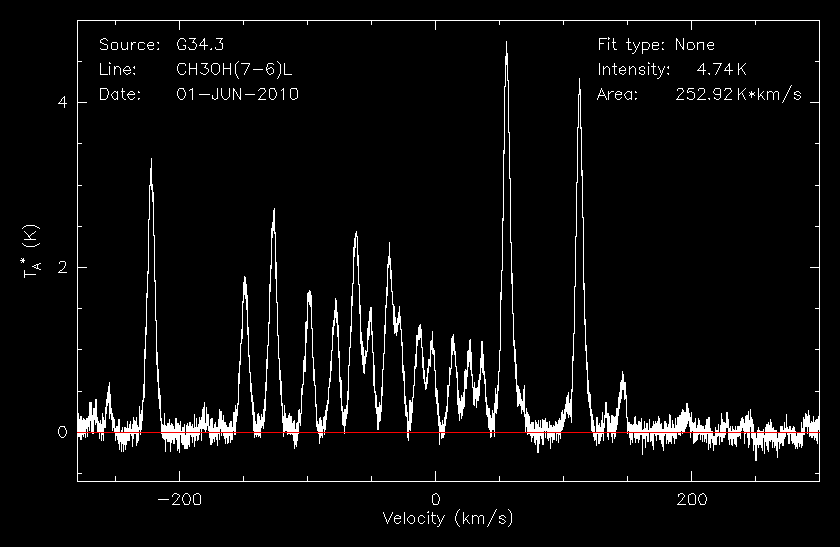

2010-06-01
0.18
54.8
4.75
252.93
---
---

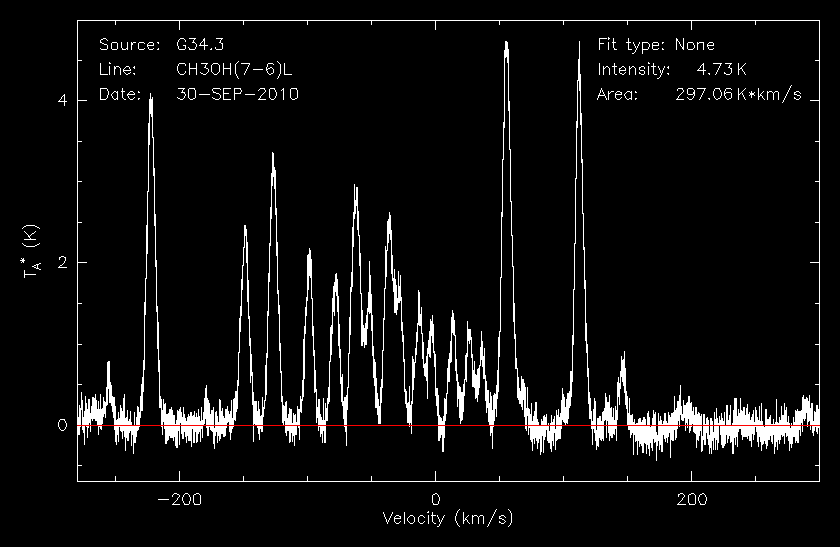

2010-09-30
0.91
32.8
4.73
297.07
---
---

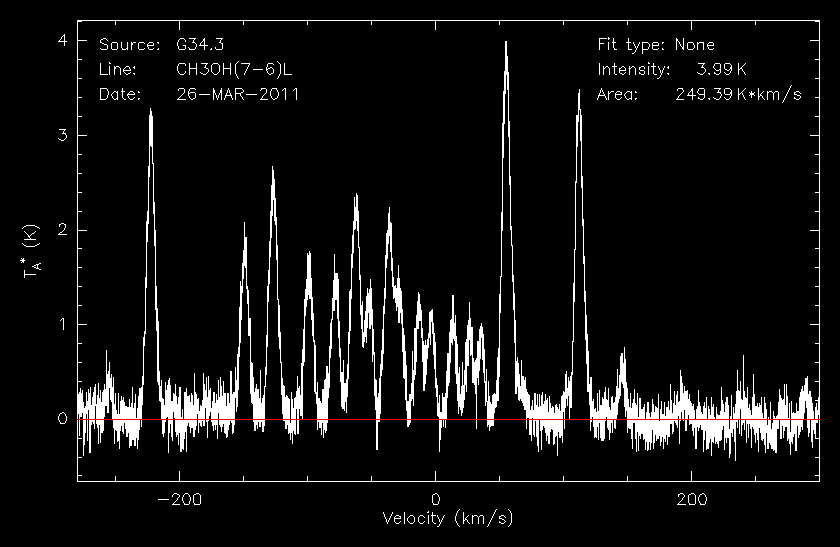

2011-03-26
2.10
64.1
4.00
249.40
---
---

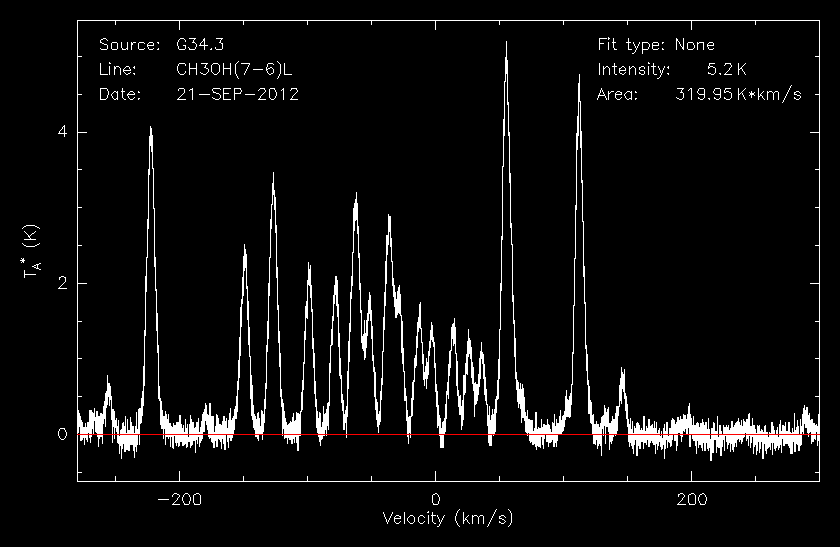

2012-09-21
0.63
42.1
5.20
319.96
---
---

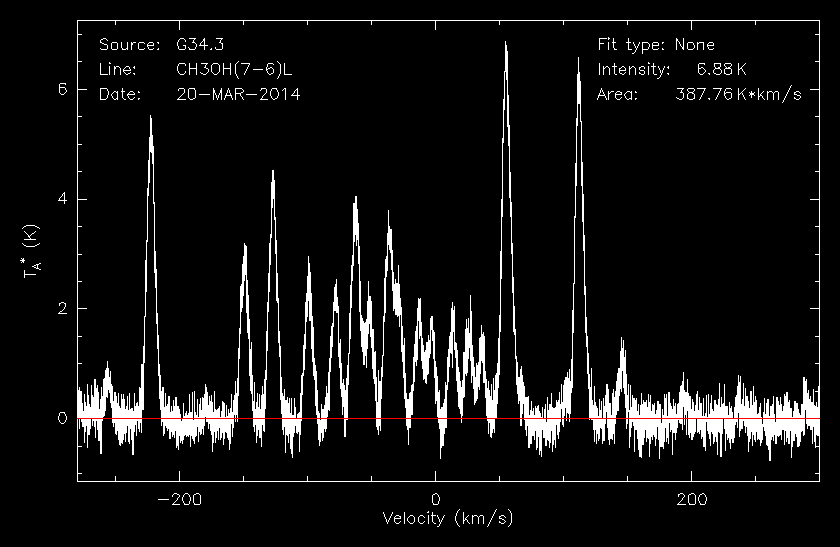

2014-03-20
1.84
33.7
6.88
387.77
---
---

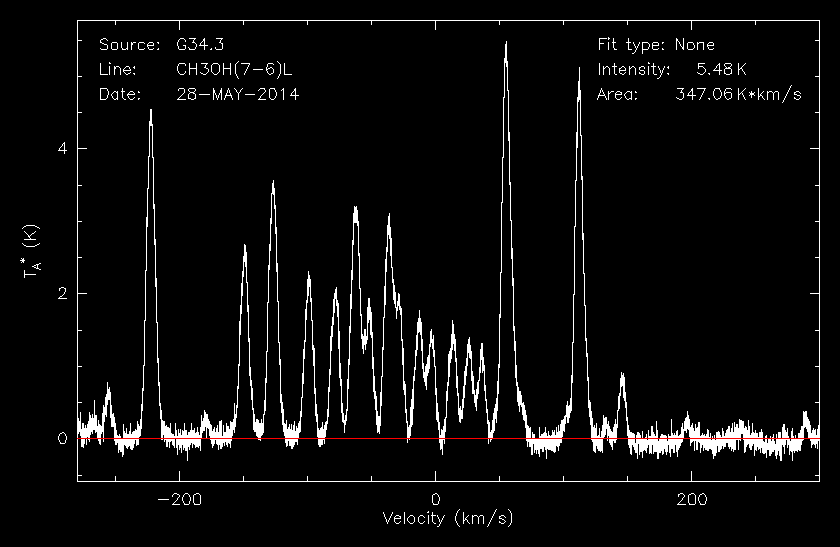

2014-05-28
0.23
53.6
5.49
347.06
---
---

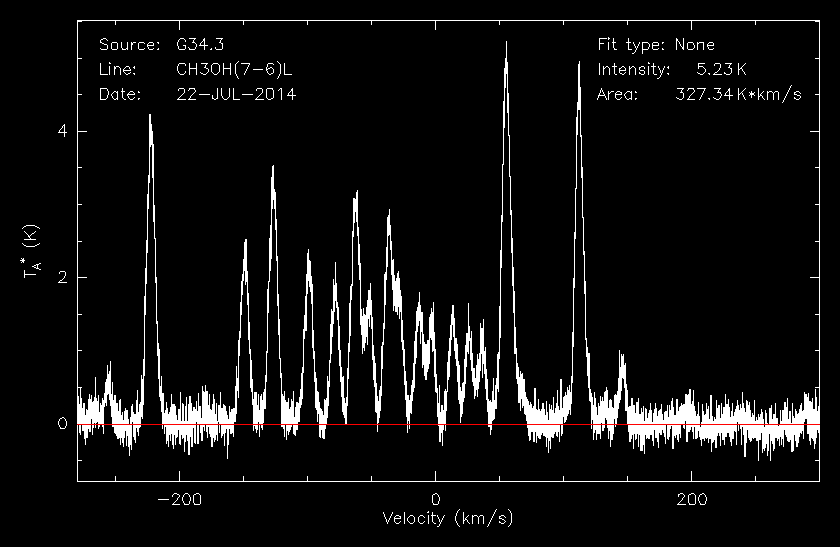

2014-07-22
1.46
40.9
5.23
327.34
---
---

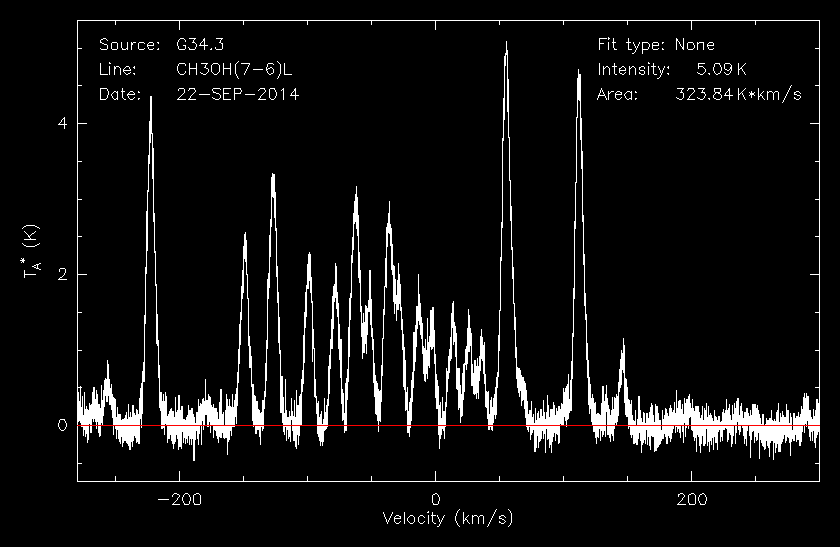

2014-09-22
1.70
54.4
5.09
323.85
---
---
2015-06-25
0.72
39.9
5.07
297.21
---
---

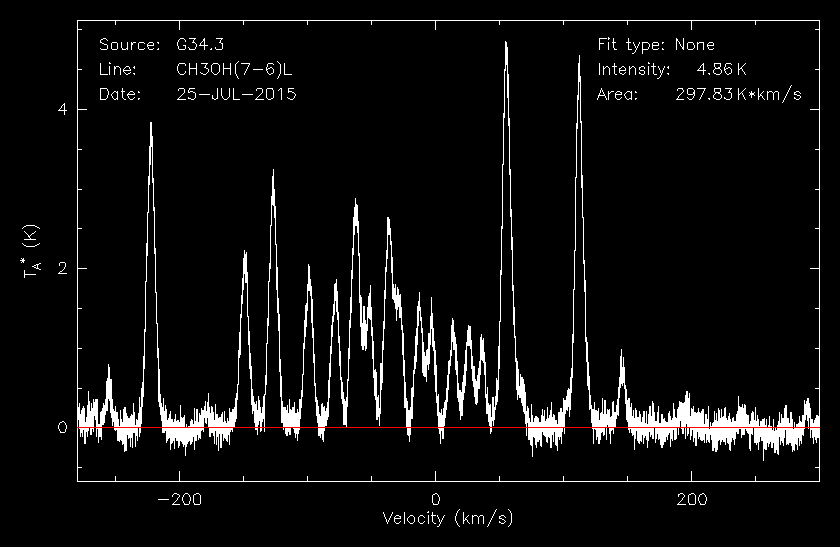

2015-07-25
1.10
57.9
4.86
297.83
---
---

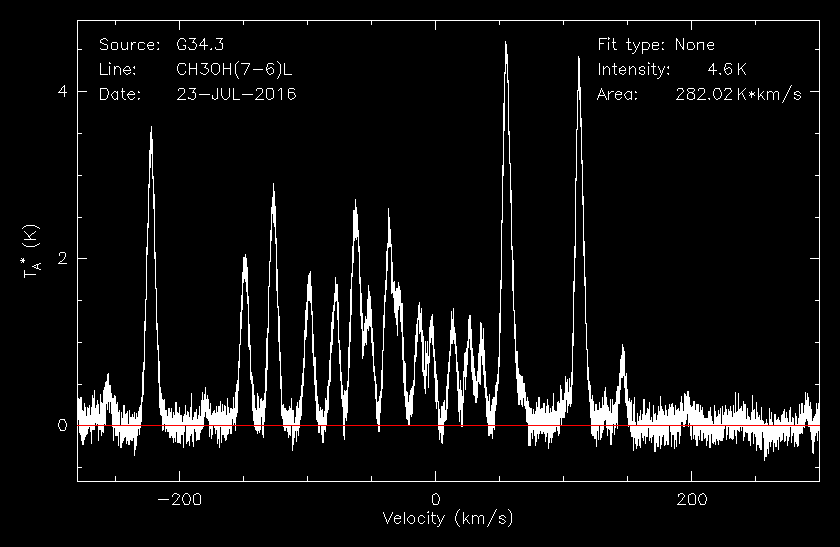

2016-07-23
1.07
49.5
4.61
282.03
---
---
