Home > Instrumentation > SHeFI receivers > APEX-2 (345 GHz) > APEX-2 Calibration

Source : G34.3

Line : 13CO(3-2)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

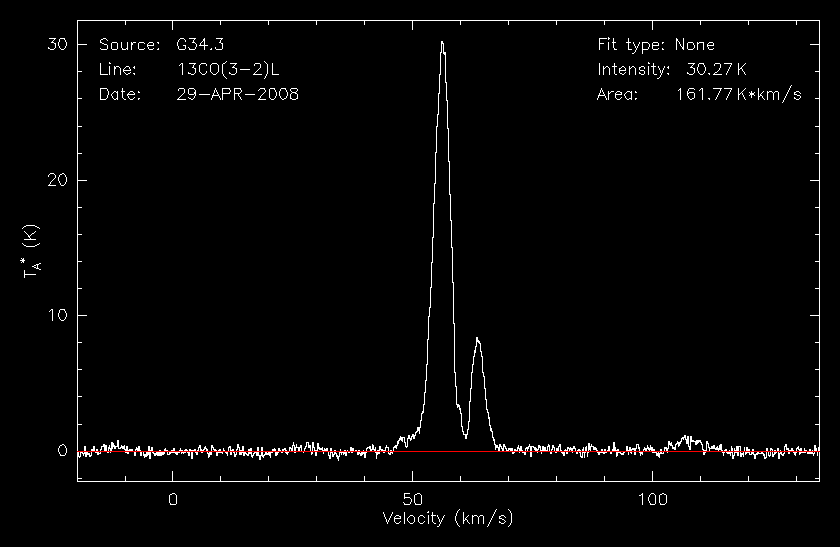

2008-04-29
0.96
60.6
30.27
161.78
57.303
5.34

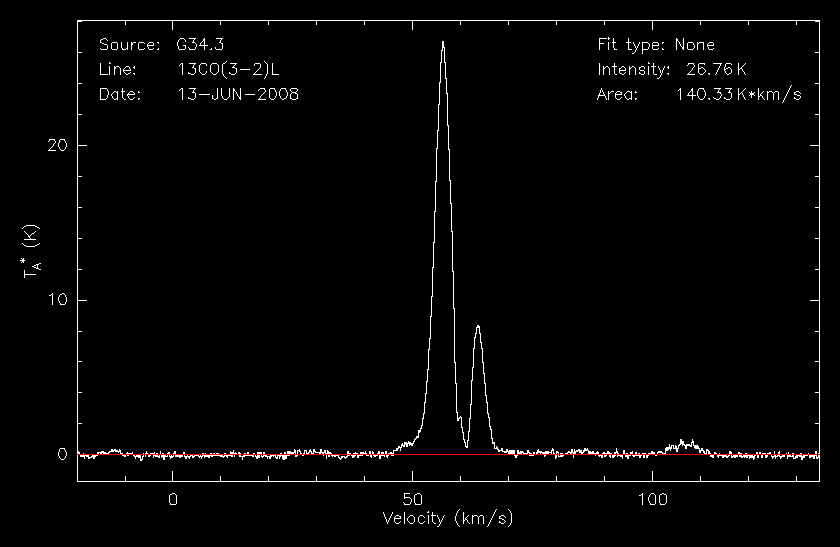

2008-06-13
0.63
46.6
26.77
140.33
57.550
5.24

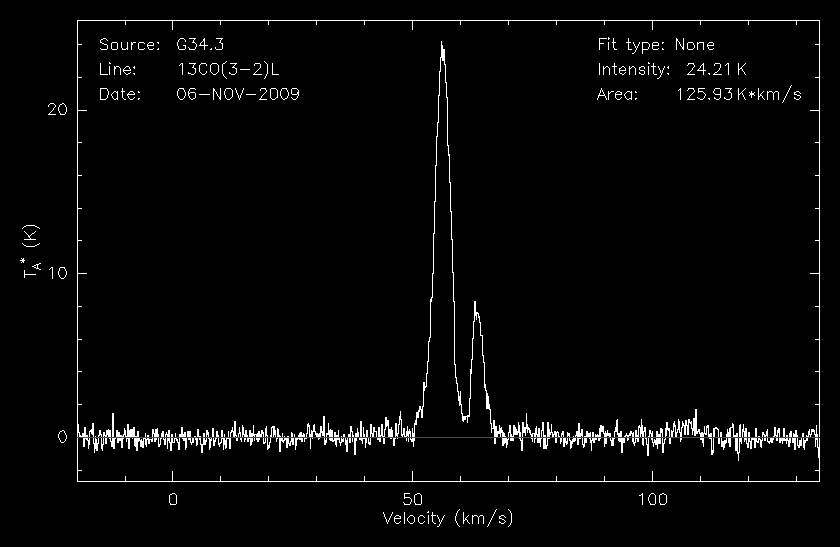

2009-11-06
2.23
31.8
24.21
125.93
57.668
5.20
2010-04-01
1.18
49.9
31.40
165.58
57.125
5.27

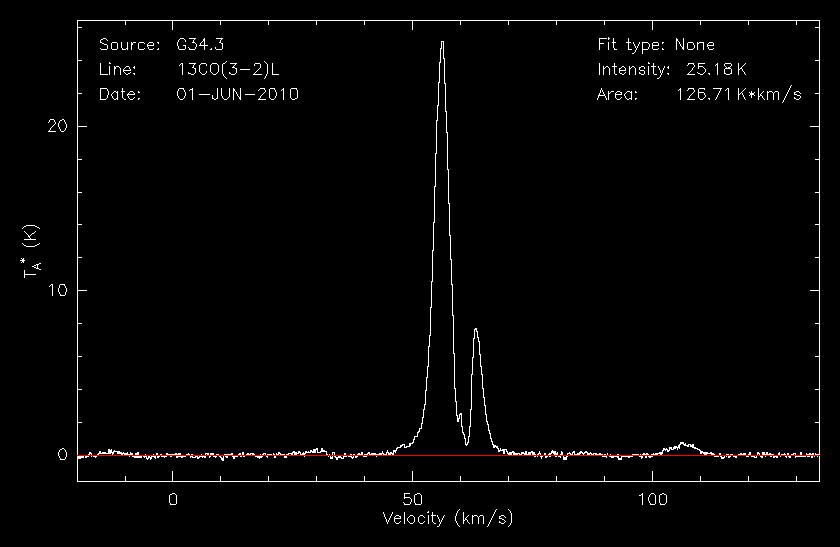

2010-06-01
0.26
57.0
25.19
126.72
57.298
5.03

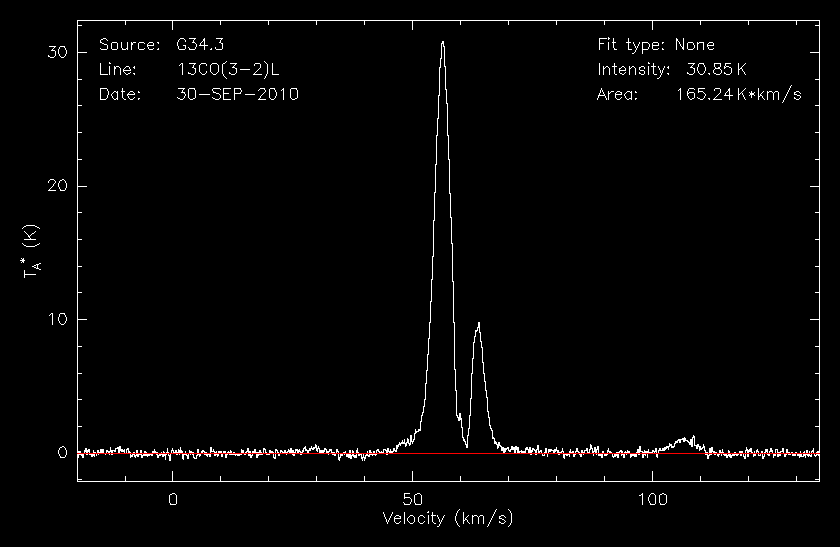

2010-09-30
0.88
30.9
30.86
165.24
57.524
5.36

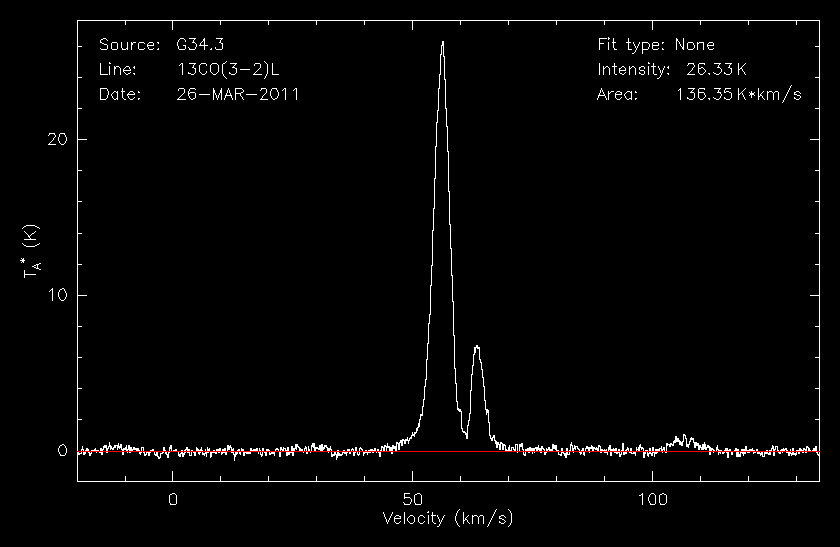

2011-03-26
1.72
64.6
26.34
136.36
57.207
5.18

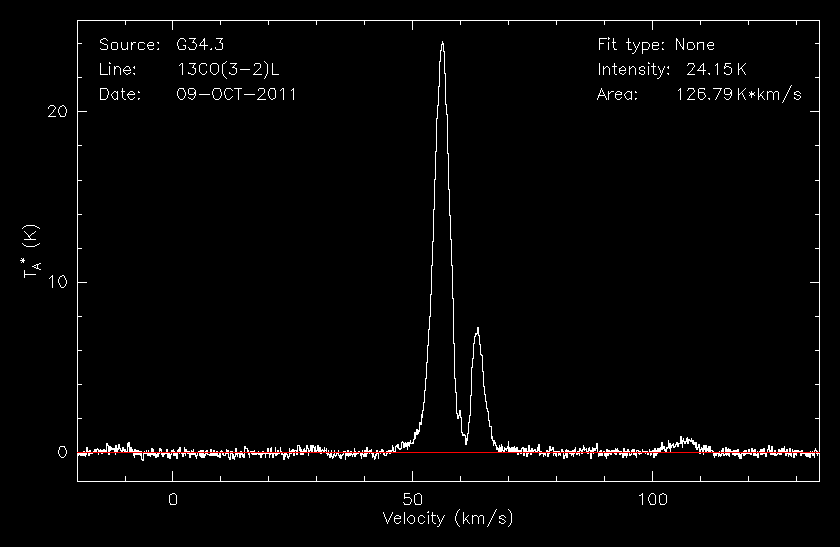

2011-10-09
0.73
31.9
24.16
126.79
57.385
5.25

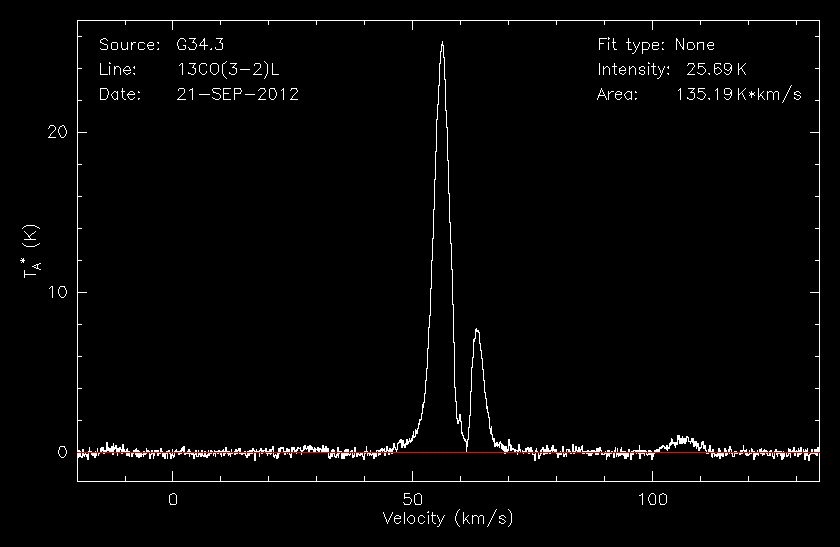

2012-09-21
0.57
40.9
25.69
135.19
57.363
5.26

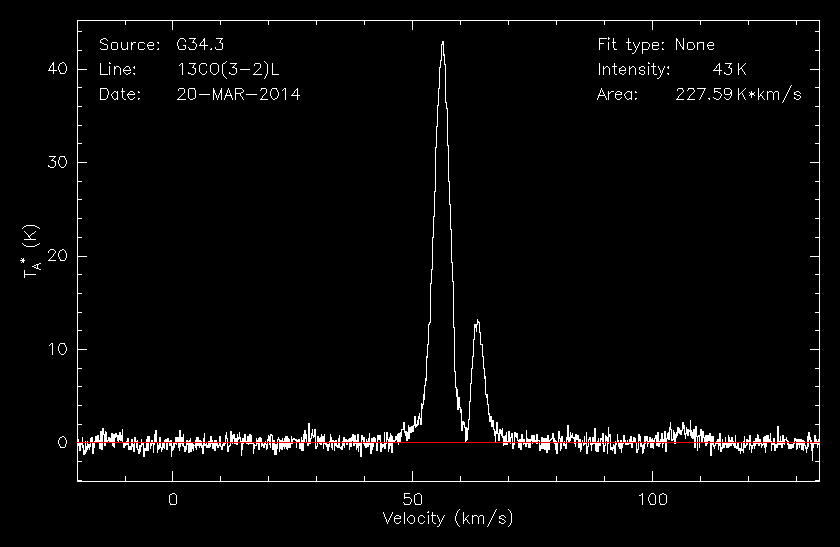

2014-03-20
1.83
32.5
43.00
227.59
57.445
5.29

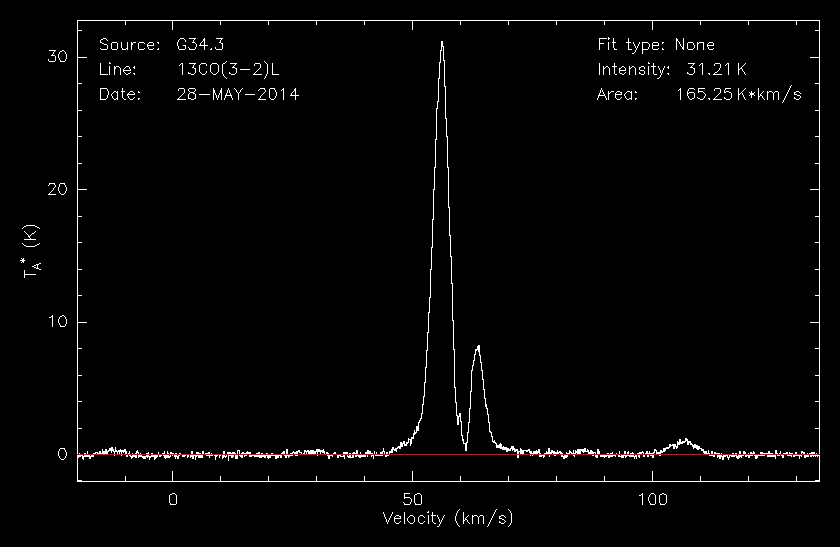

2014-05-28
0.23
54.5
31.21
165.26
57.219
5.29

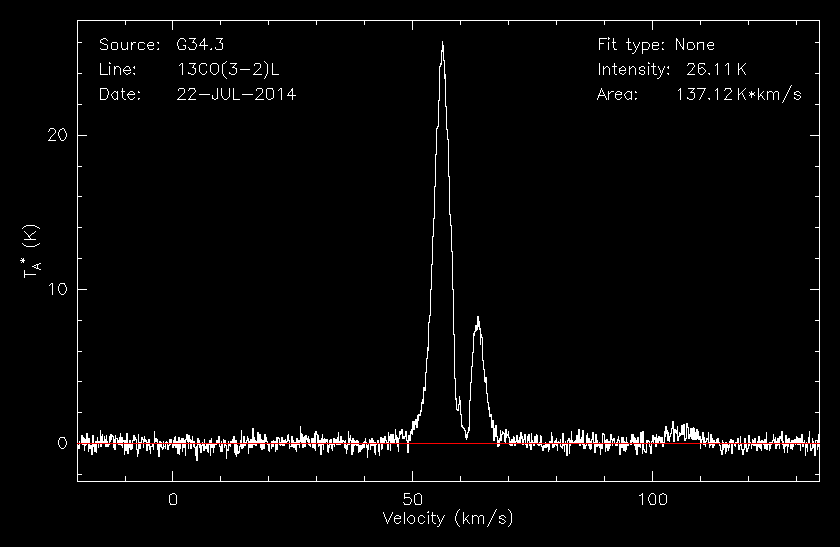

2014-07-22
1.48
39.9
26.11
137.12
57.522
5.25

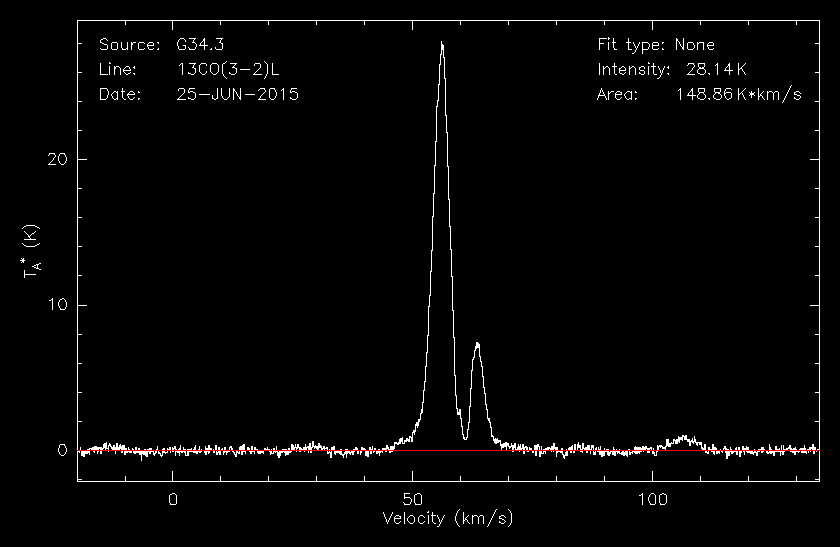

2015-06-25
0.63
40.9
28.14
148.87
57.182
5.29

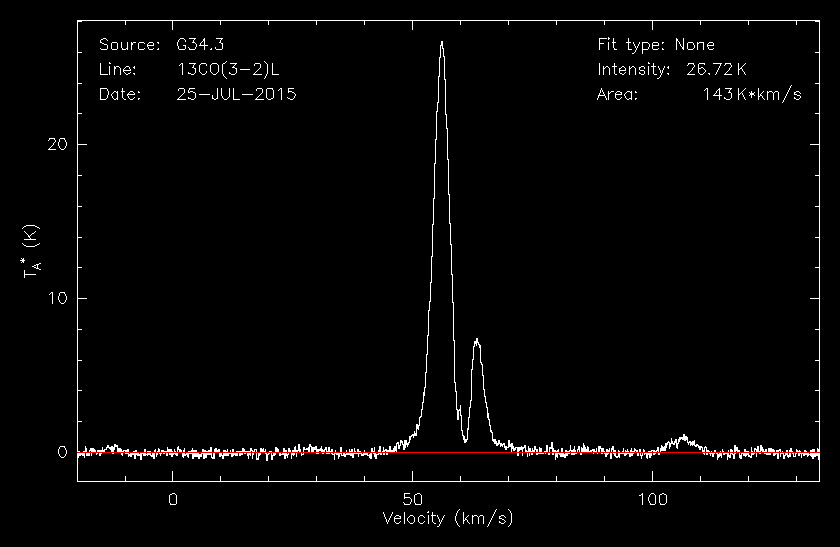

2015-07-25
0.95
58.7
26.73
143.01
57.313
5.35

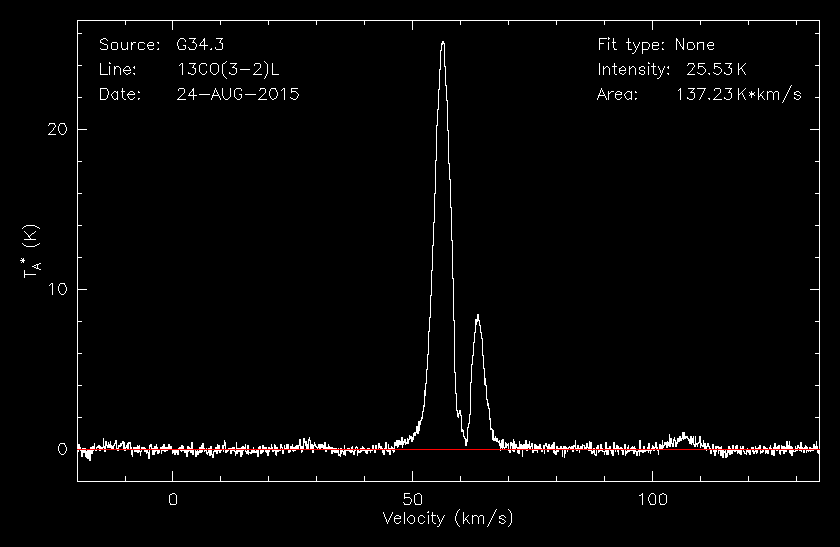

2015-08-24
0.94
48.6
25.53
137.23
57.595
5.37
2016-07-23
0.93
48.5
24.03
127.53
57.455
5.31
