Home > Instrumentation > SHeFI receivers > APEX-2 (345 GHz) > APEX-2 Calibration

Source : CRL618

Line : HCO+(4-3)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

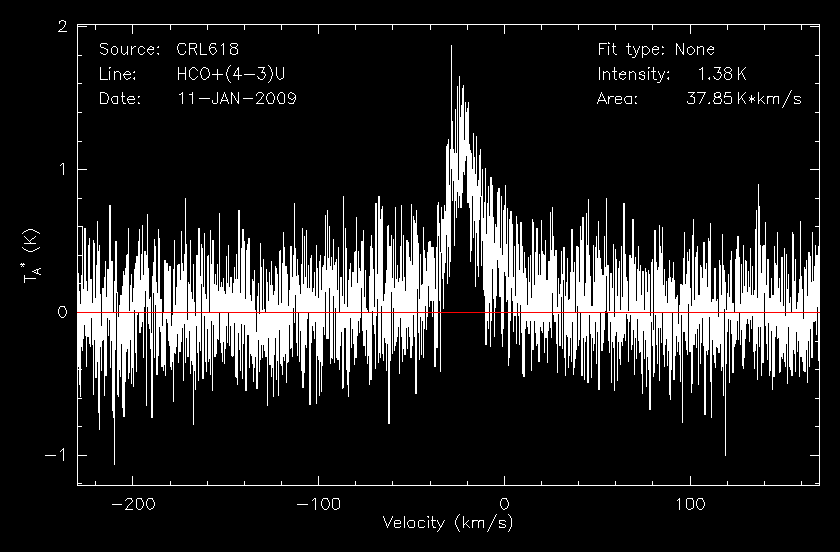

2009-01-11
0.77
22.1
1.39
37.85
-15.666
27.25

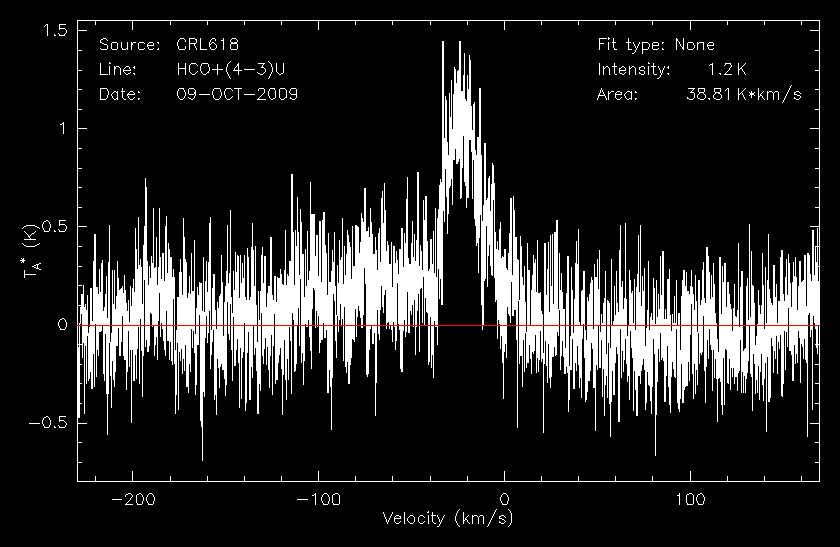

2009-10-09
0.70
30.9
1.21
38.82
-46.795
32.18
2009-11-07
1.19
28.6
1.41
44.06
-21.626
31.16

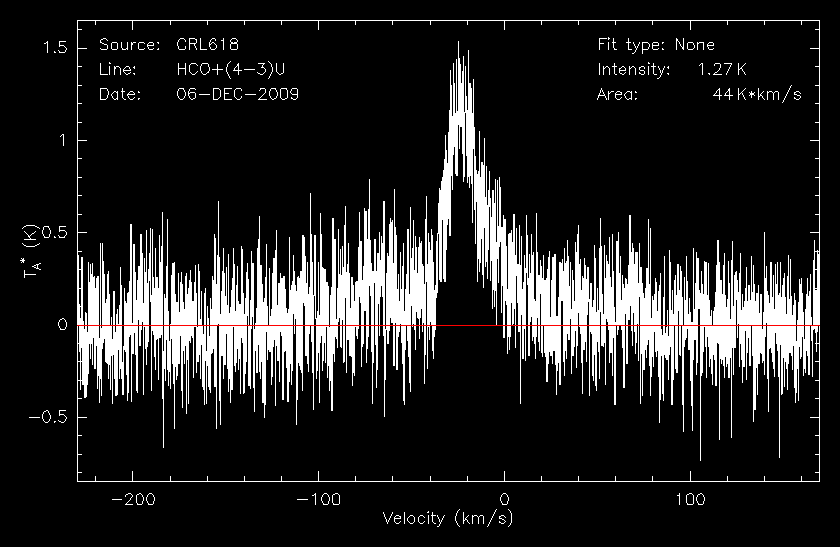

2009-12-06
0.70
30.8
1.27
44.00
-20.700
34.53
2010-02-11
0.96
29.8
1.36
55.40
-26.087
40.75
2010-09-30
0.68
28.0
1.29
48.17
-29.723
37.41

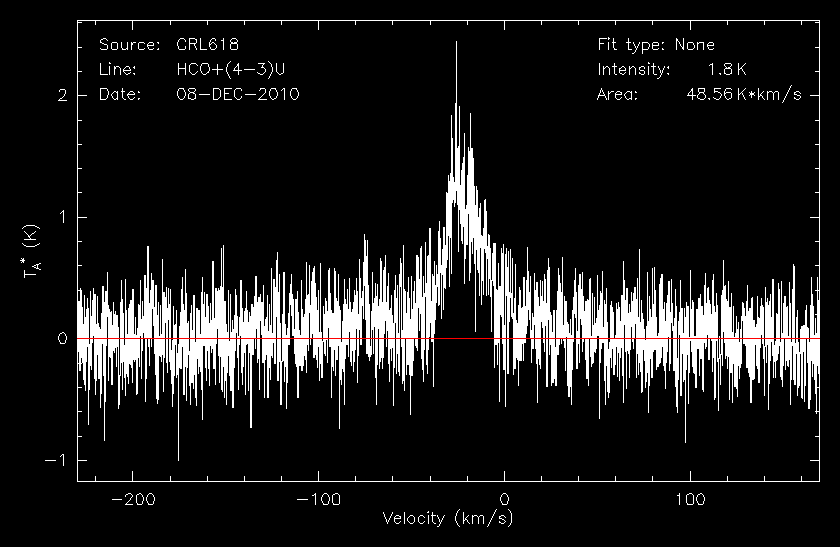

2010-12-08
1.30
30.9
1.80
48.57
-26.344
26.93

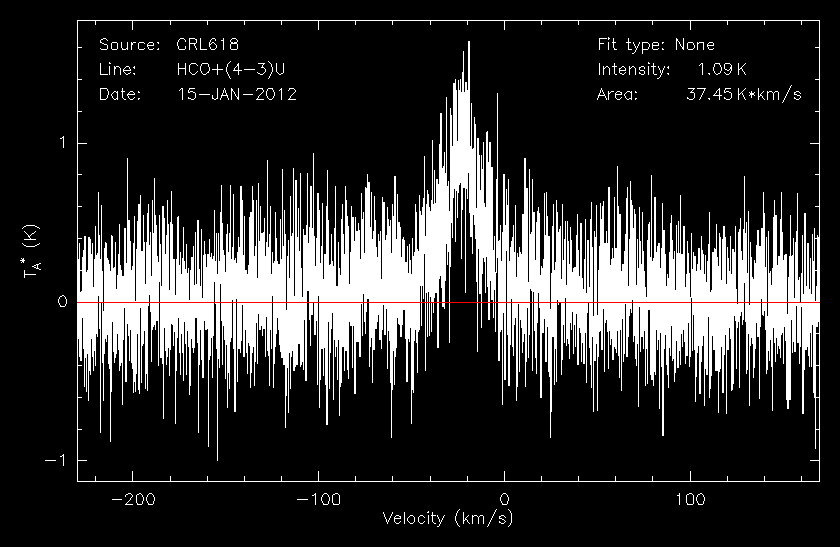

2012-01-15
1.36
30.6
1.09
37.45
-24.620
34.25

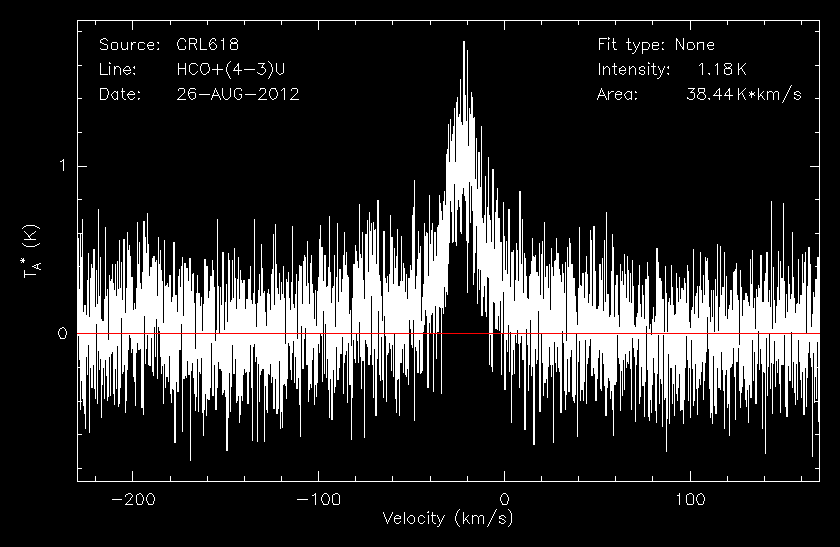

2012-08-26
1.19
30.3
1.19
38.45
-26.430
32.37

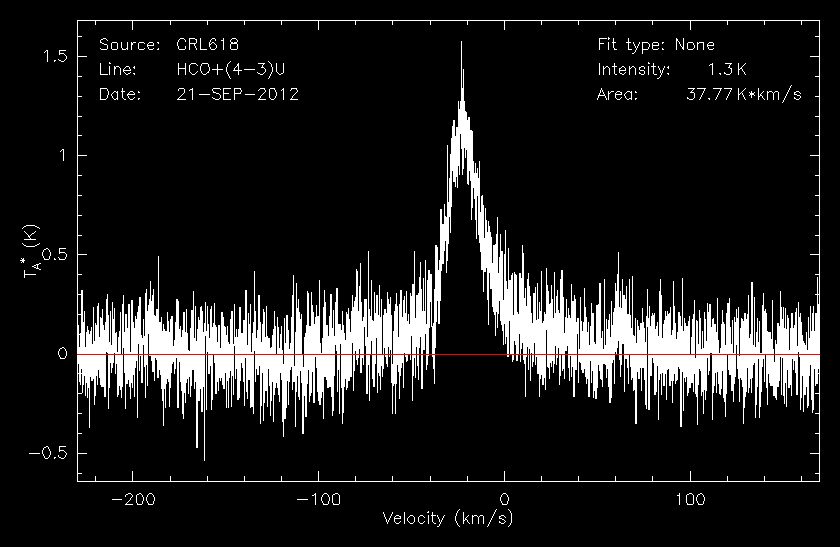

2012-09-21
0.29
23.9
1.30
37.77
-14.071
28.97

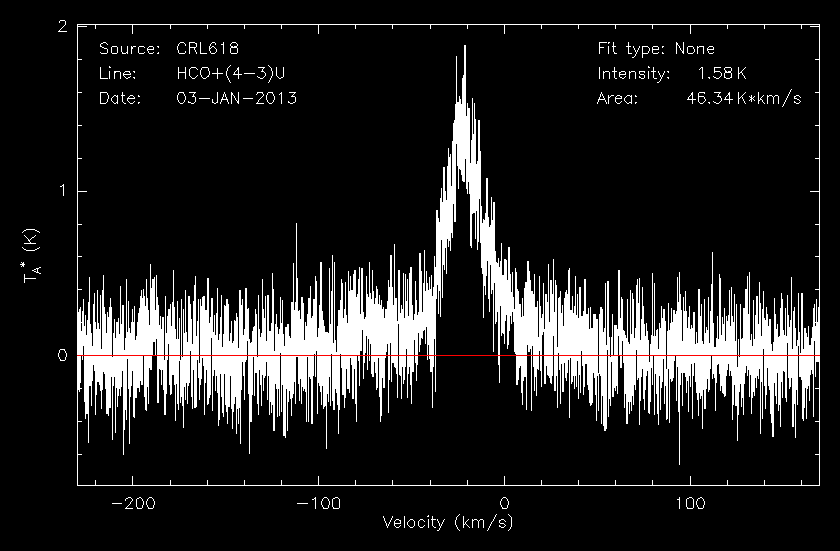

2013-01-03
0.90
29.9
1.59
46.35
-21.983
29.15
