Last modified by Felipe Mac-Auliffe, October 27th 2001 |
 |
| Title | Description |
Author
|
Update
|
Code
|
Location
|

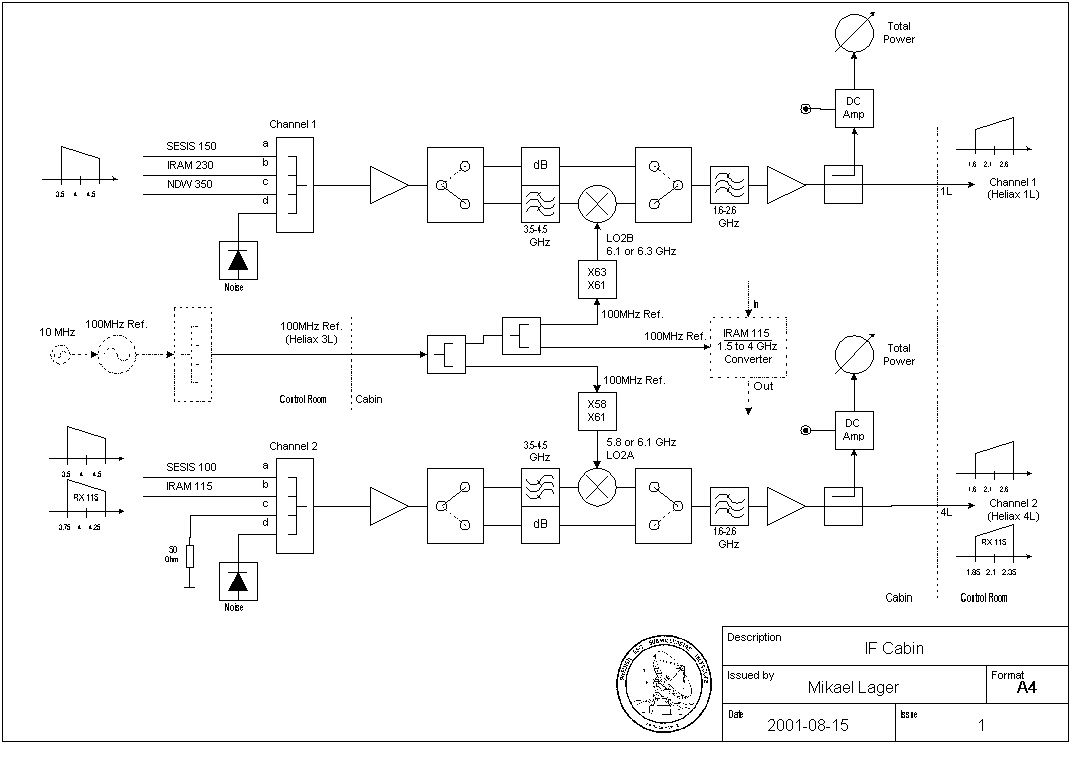

| IF Cabin | IF Cabin block diagram |
MLA
|
2001-08-15
|
n.a.
|
n.a.
|

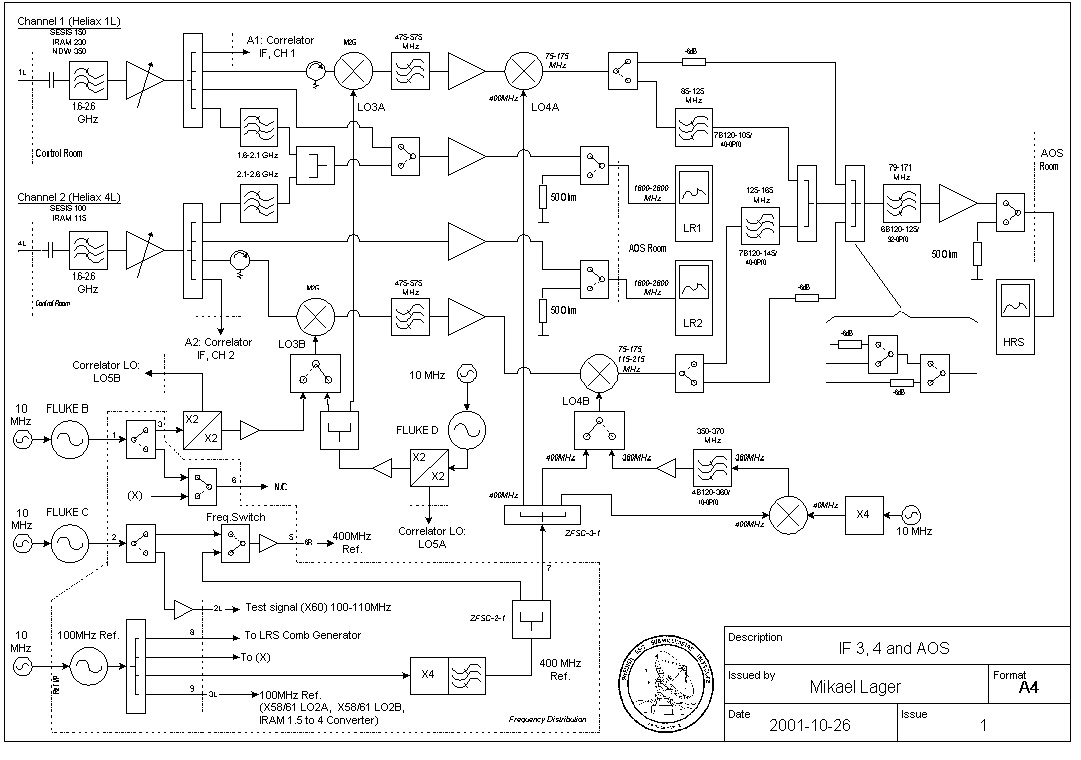

| IF 3, 4 and AOS | IF 3, 4 and AOS block diagram |
MLA
|
2001-10-26
|
n.a.
|
n.a.
|

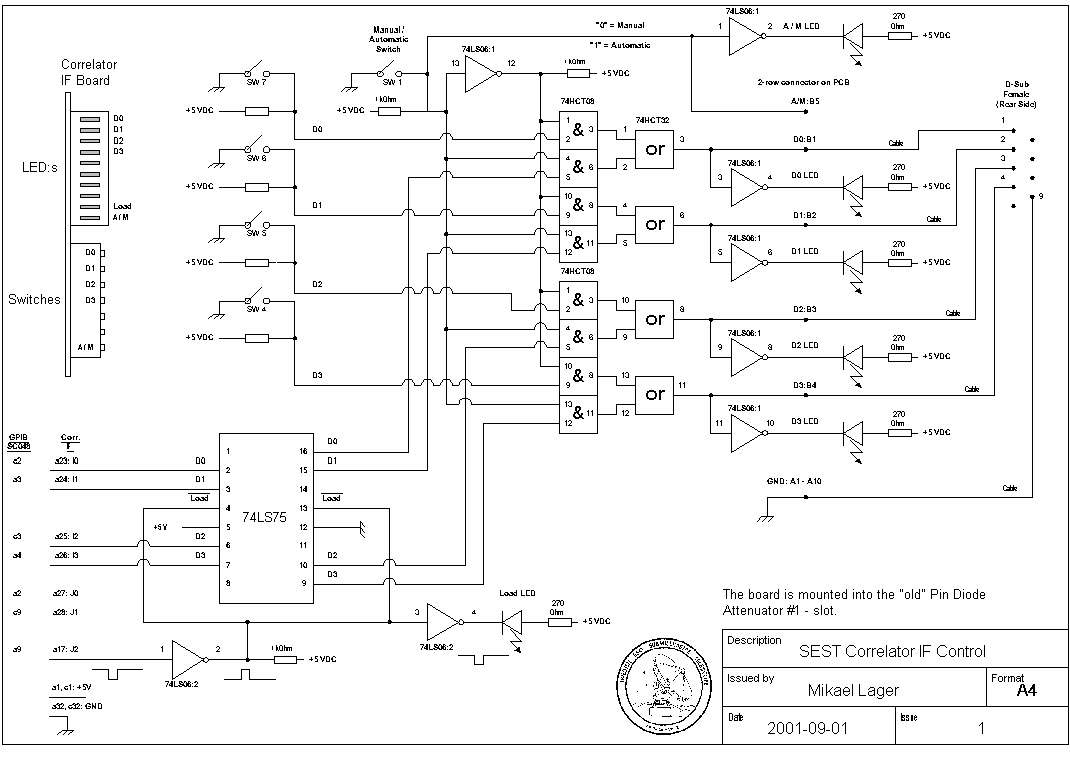

| Correlator IF control | Correlator IF control block diagram |
MLA
|
2001-09-01
|
n.a.
|
n.a.
|

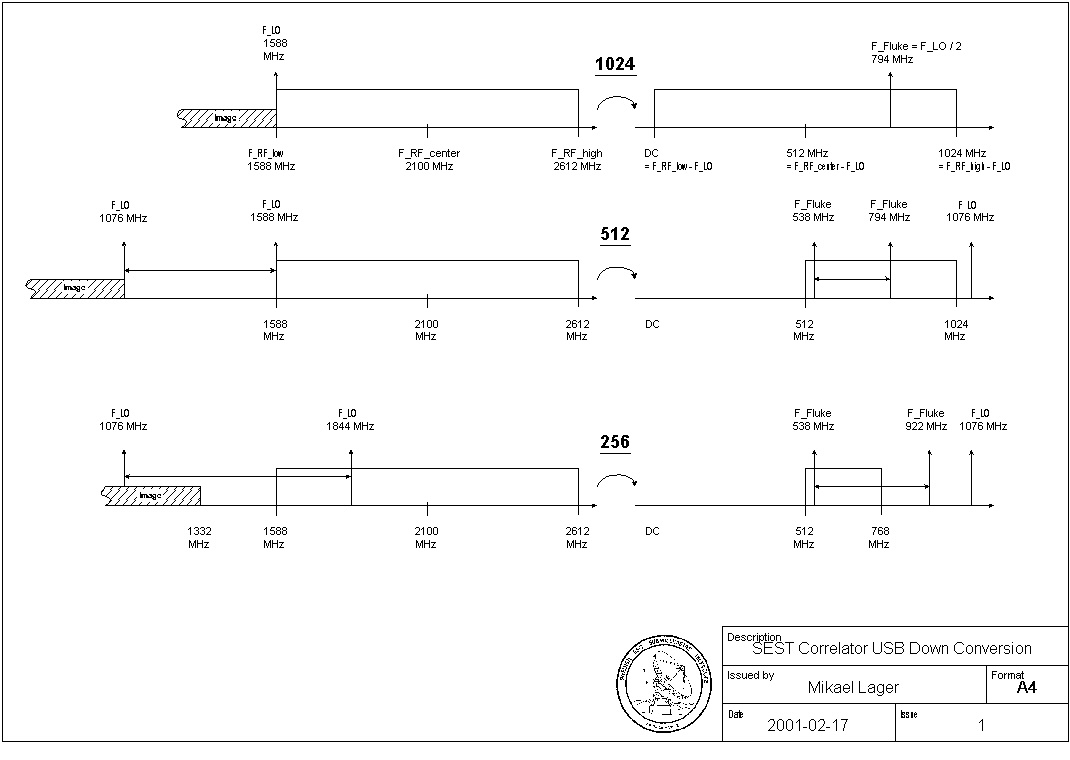

| Correlator IF frequency plan 1024-256 | Correlator USB down conversion 1024-256 block diagram |
MLA
|
2001-02-17
|
n.a.
|
n.a.
|

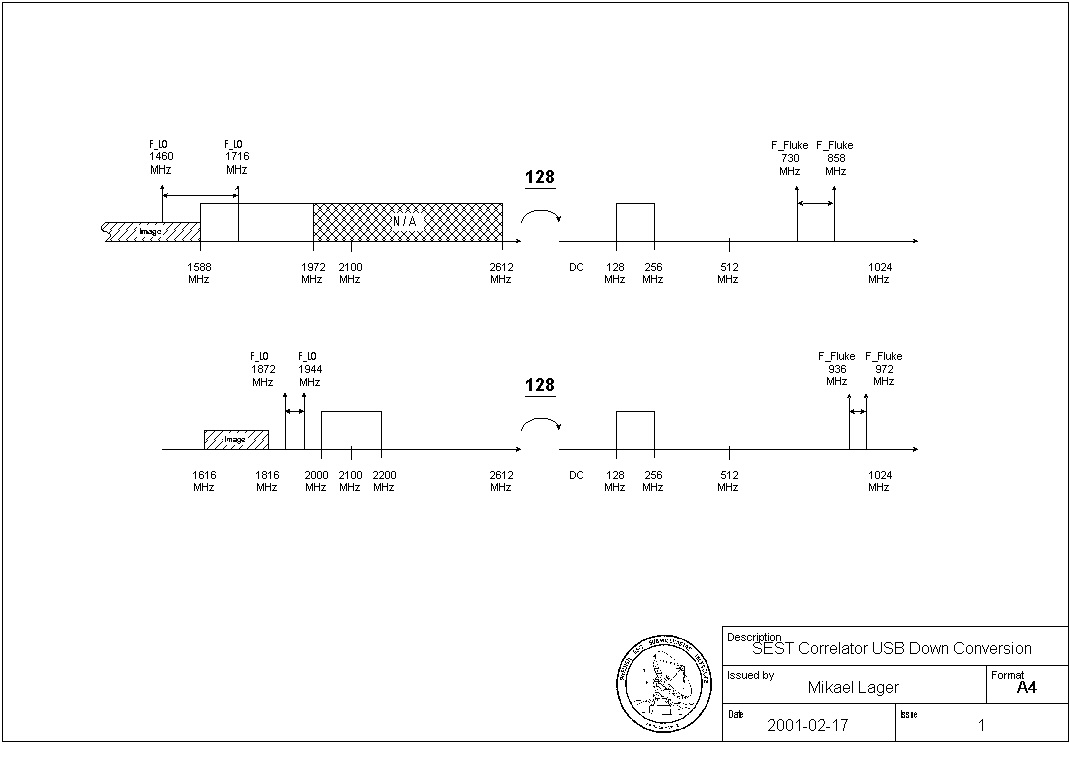

| Correlator frequency plan 128 | Correlator USB down conversion 128 block diagram |
MLA
|
2001-02-17
|
n.a.
|
n.a.
|

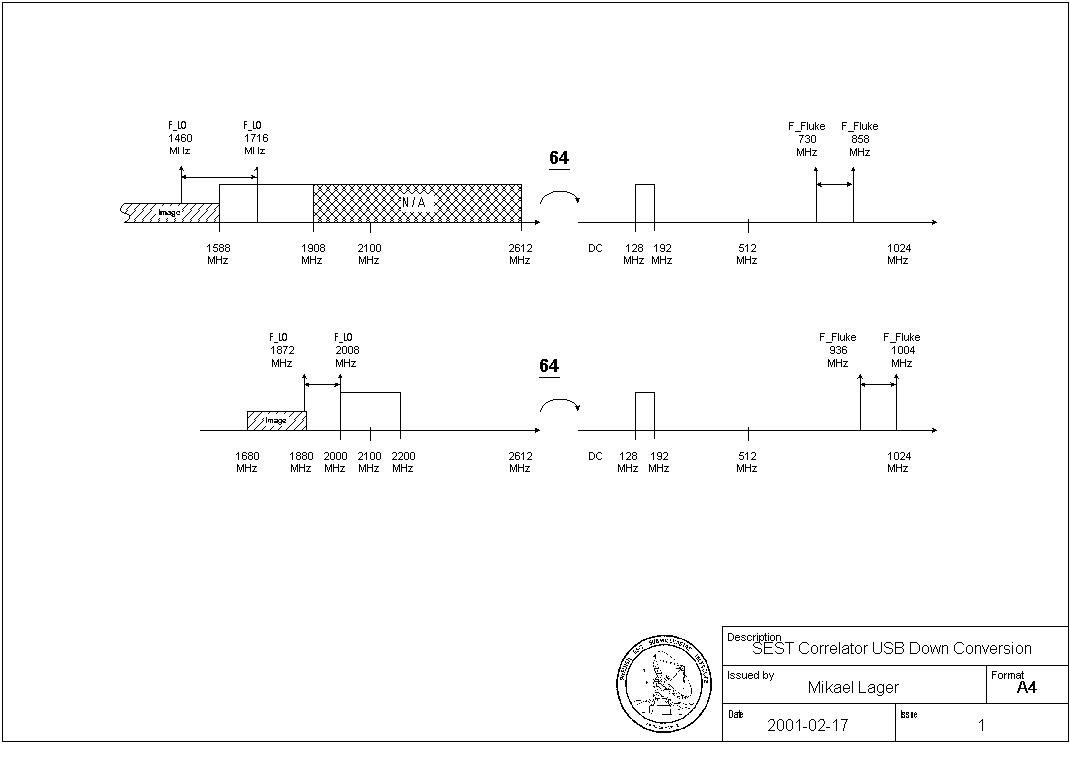

| Correlator frequency plan 64 | Correlator USB down conversion 64 block diagram |
MLA
|
2001-02-17
|
n.a.
|
n.a.
|

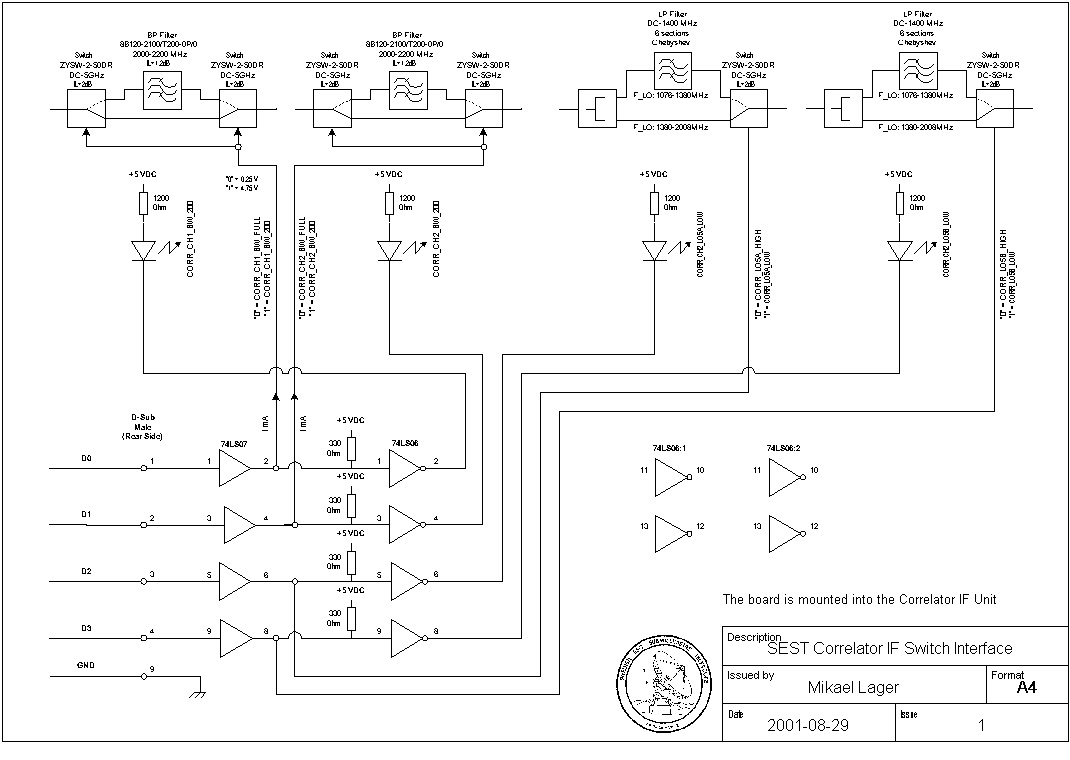

| Correlator IF switch interface | Correlator IF switch interface block diagram |
MLA
|
2001-08-29
|
n.a.
|
n.a.
|
| Loading system for correlator IF | Loading system for correlator IF Excel worksheet | MLA | n.a. | n.a. | n.a. |
|
|
Last modified by Felipe Mac-Auliffe, October 27th 2001 |
|
