Source : OMC1

Line : H2CO(3-2)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum
2008-12-08
5.12
60.0
25.69
213.99
8.458
8.33

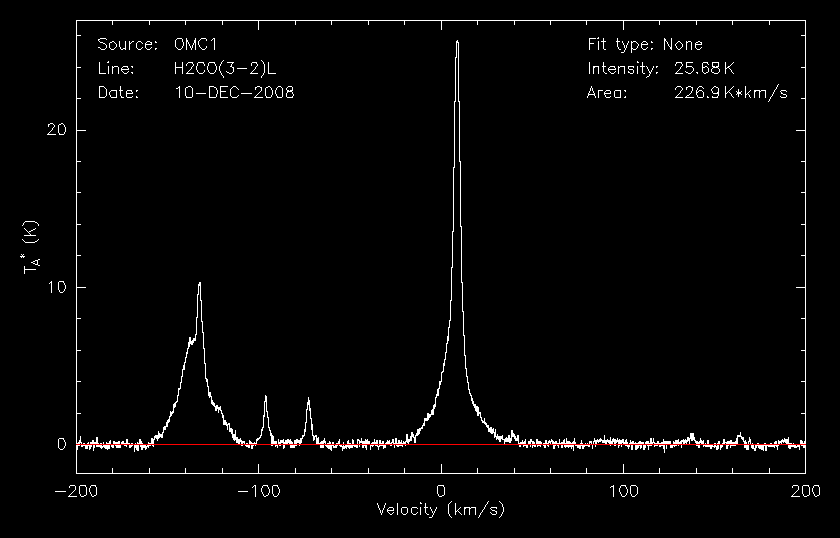

2008-12-10
3.81
48.4
25.69
226.91
8.390
8.83
2009-01-27
4.47
66.4
25.80
222.30
8.667
8.62

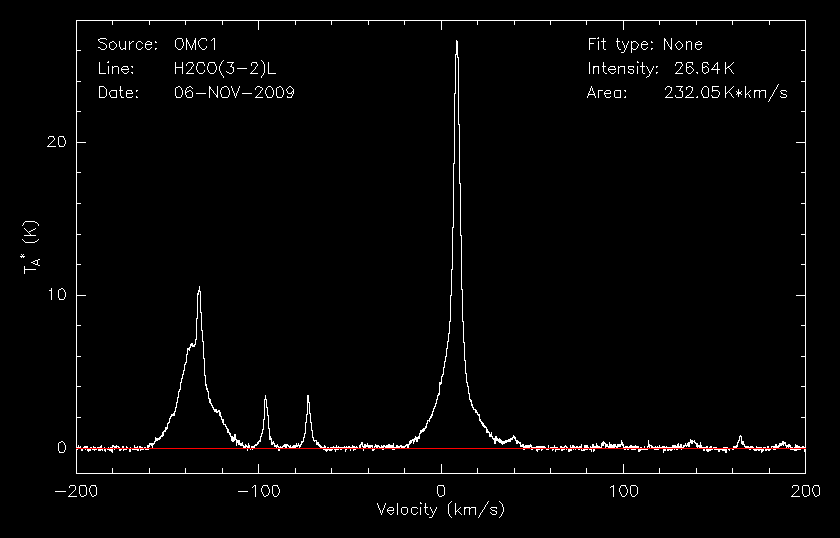

2009-11-06
0.53
50.7
26.65
232.05
8.510
8.71

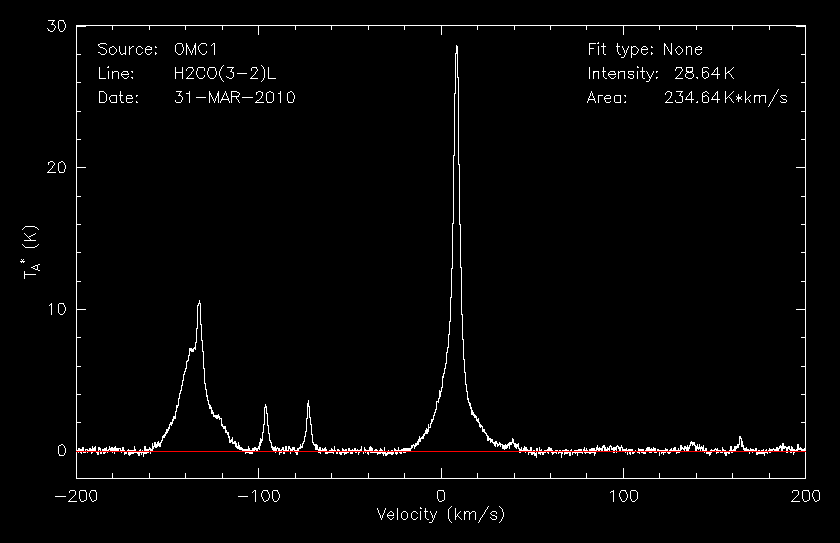

2010-03-31
2.49
56.6
28.64
234.64
8.442
8.19
2010-12-14
0.10
62.9
27.02
237.04
8.540
8.77
2011-05-31
1.64
50.3
24.89
211.49
8.229
8.50
2011-11-17
0.85
41.3
28.33
250.49
8.492
8.84
2012-01-12
1.43
51.5
25.70
228.47
8.416
8.89
2013-01-29
2.59
70.7
26.26
235.60
8.378
8.97

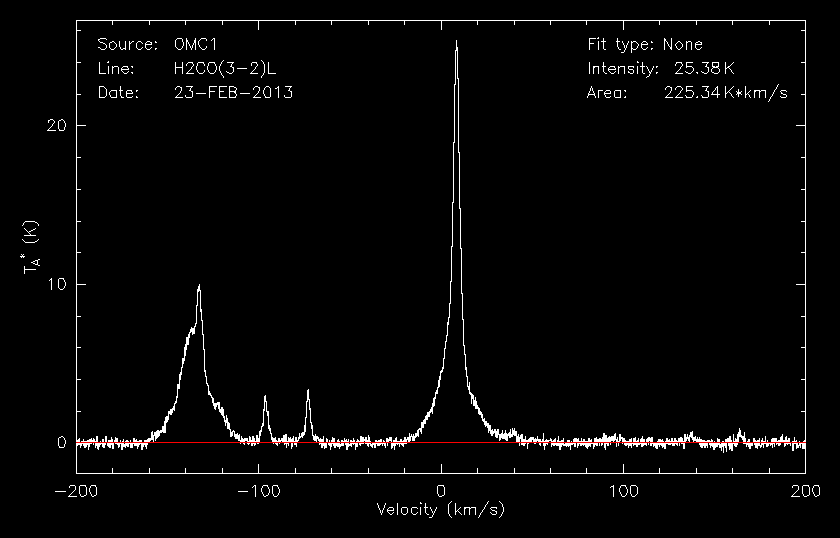

2013-02-23
5.53
40.2
25.38
225.35
8.470
8.88

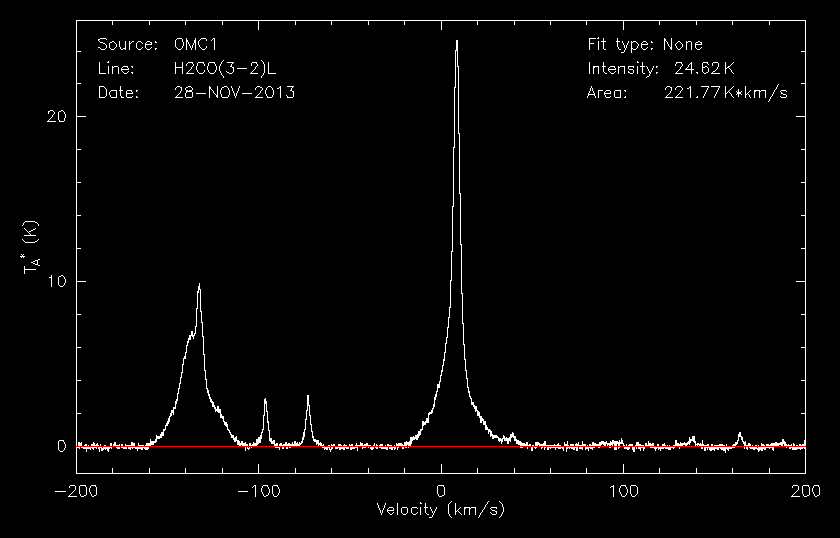

2013-11-28
0.65
43.4
24.63
221.77
8.334
9.00
2014-03-17
0.82
55.6
34.48
306.13
8.381
8.88

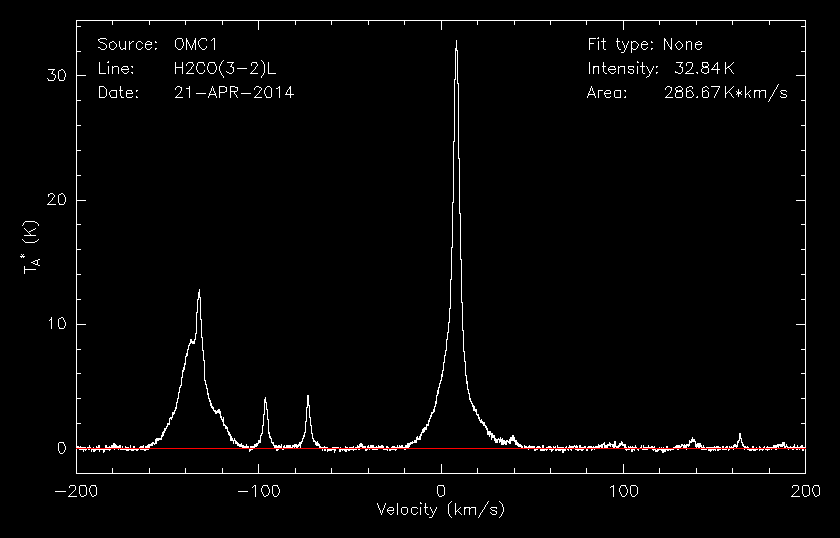

2014-04-21
1.20
60.2
32.84
286.67
8.432
8.73
2014-08-22
0.52
72.4
24.90
224.26
8.293
9.01

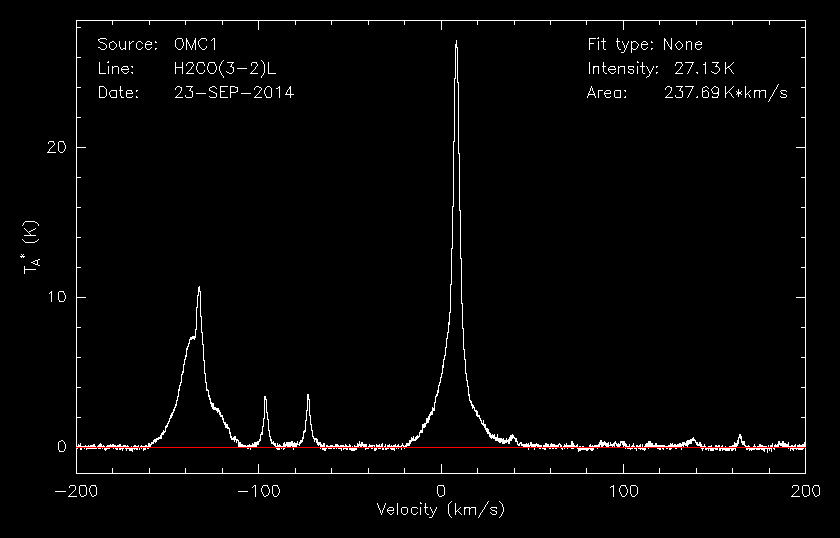

2014-09-23
1.72
50.5
27.14
237.70
8.227
8.76

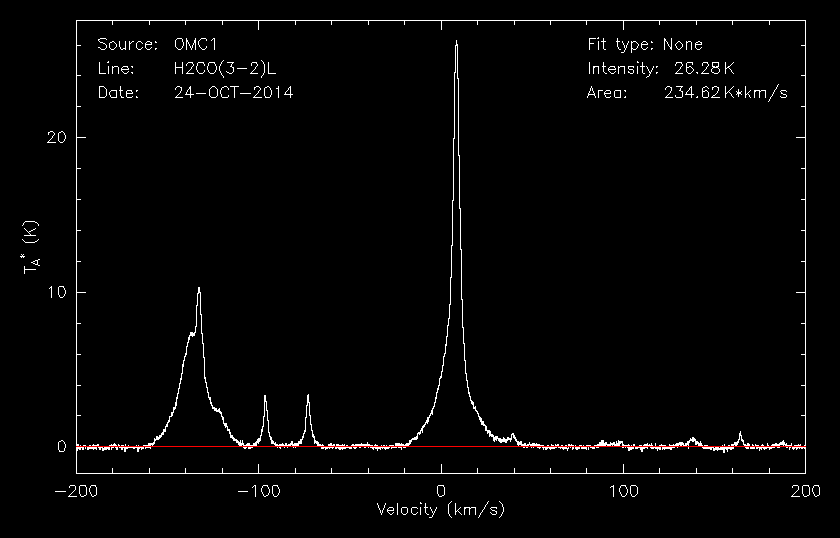

2014-10-24
1.05
68.0
26.28
234.62
8.235
8.93

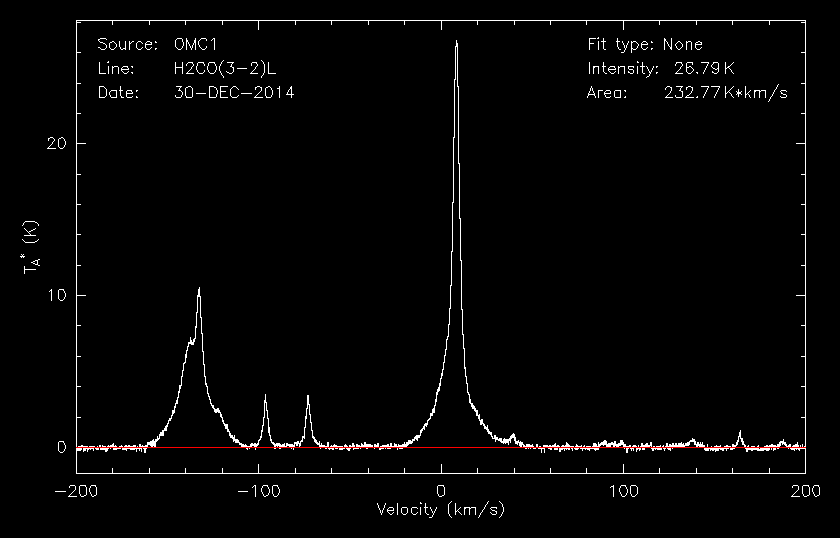

2014-12-30
1.86
53.9
26.79
232.77
8.327
8.69
2014-12-31
1.67
67.2
26.73
233.08
8.288
8.72

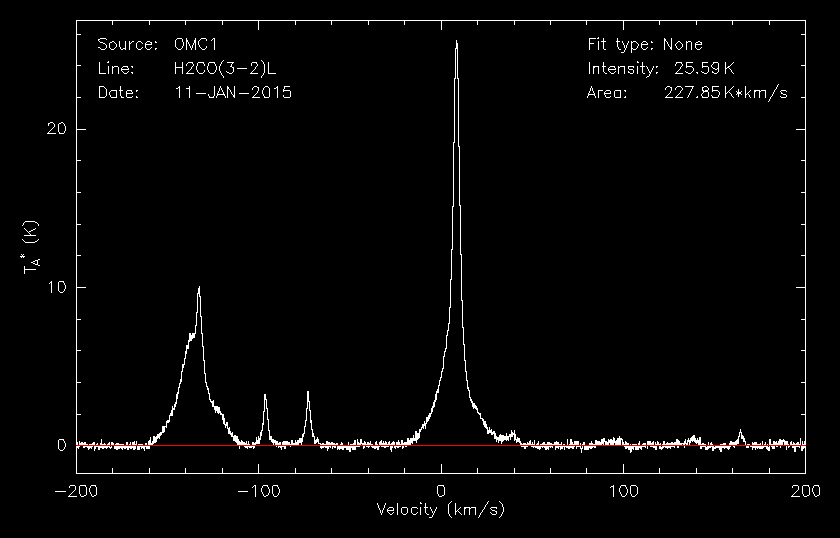

2015-01-11
4.92
72.1
25.59
227.86
8.441
8.90
2015-04-04
3.04
60.1
25.24
219.55
8.293
8.70
2015-04-14
4.55
46.6
24.95
221.04
8.365
8.86

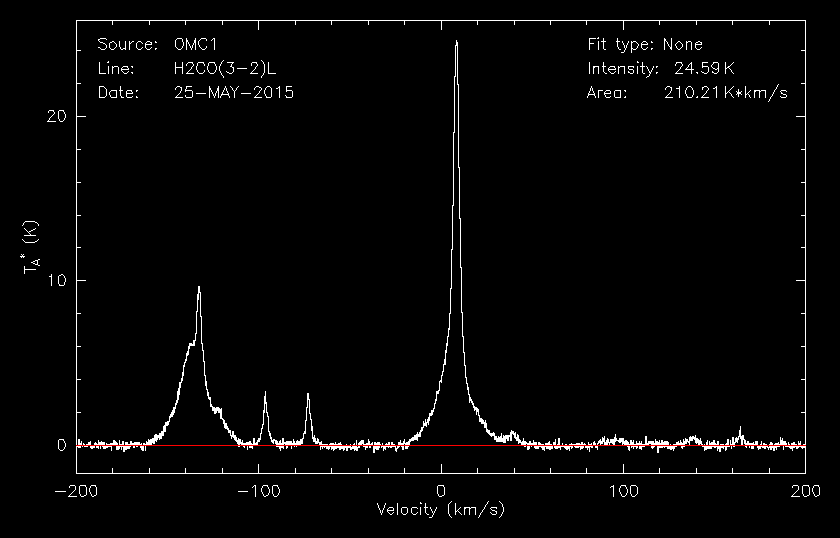

2015-05-25
3.26
37.4
24.60
210.21
8.516
8.55

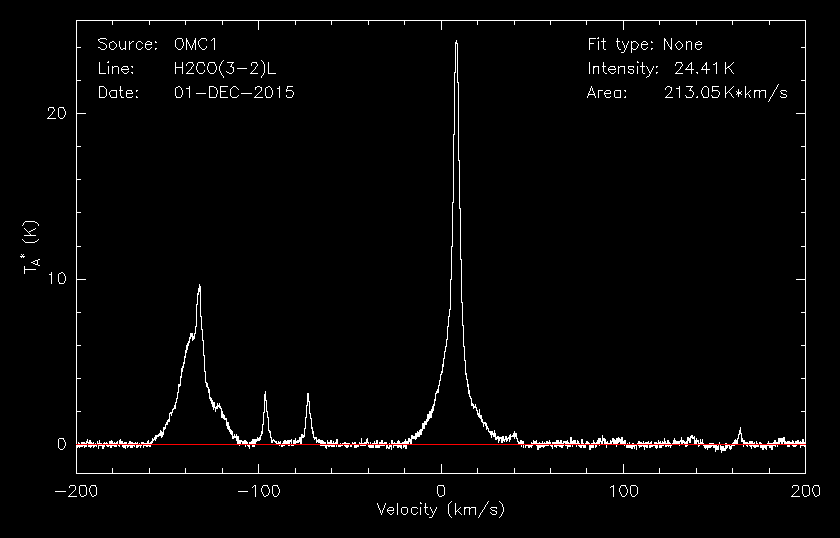

2015-12-01
2.69
44.5
24.41
213.06
8.227
8.73

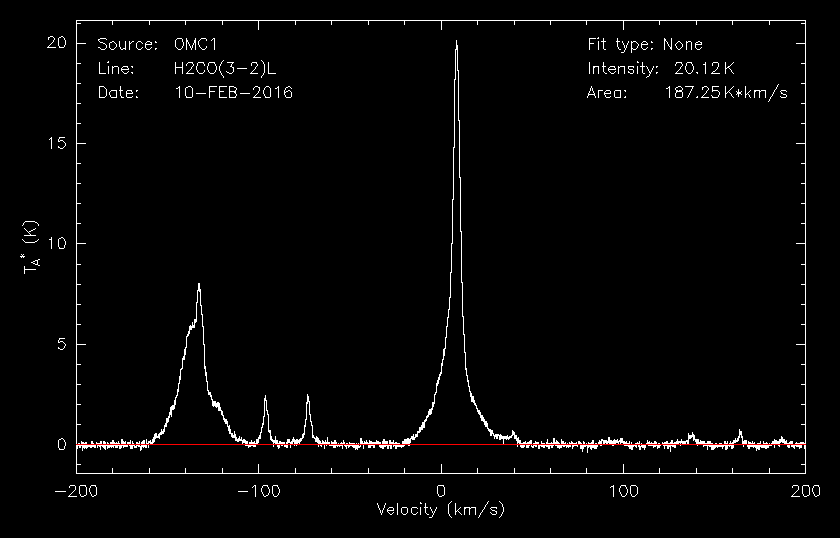

2016-02-10
3.42
68.9
20.12
187.25
8.282
9.31
2016-09-24
3.71
53.9
23.64
196.57
8.374
8.31

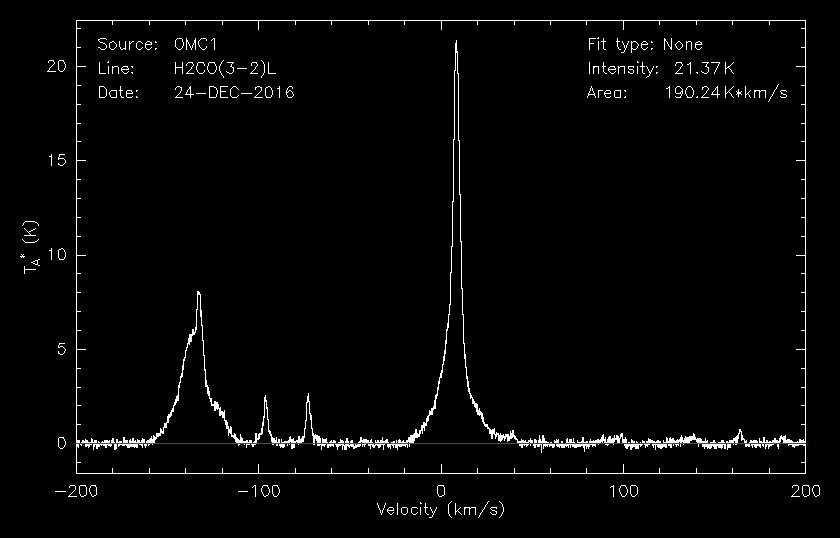

2016-12-24
5.29
70.8
21.37
190.24
8.406
8.90

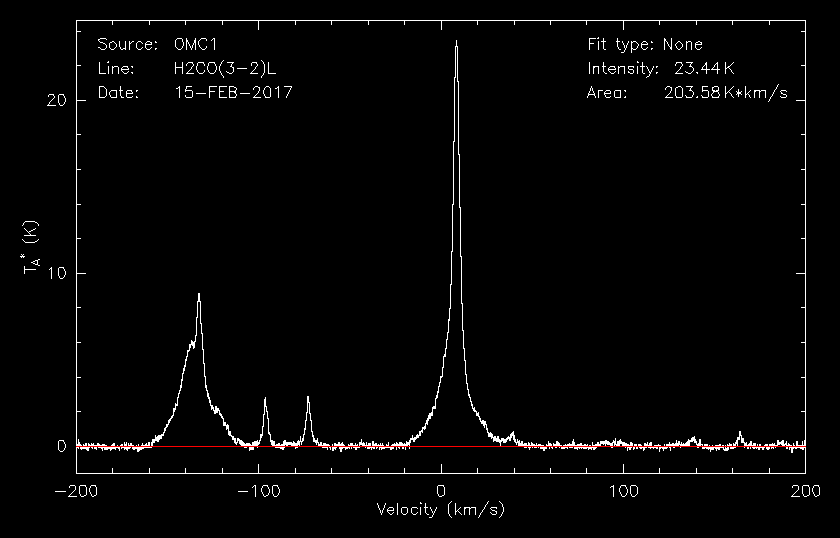

2017-02-15
3.61
69.7
23.45
203.59
8.256
8.68
