Home > Instrumentation > SHeFI receivers > APEX-1 (230 GHz) > APEX-1 Calibration

Source : OMC1

Line : 12CO(2-1)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

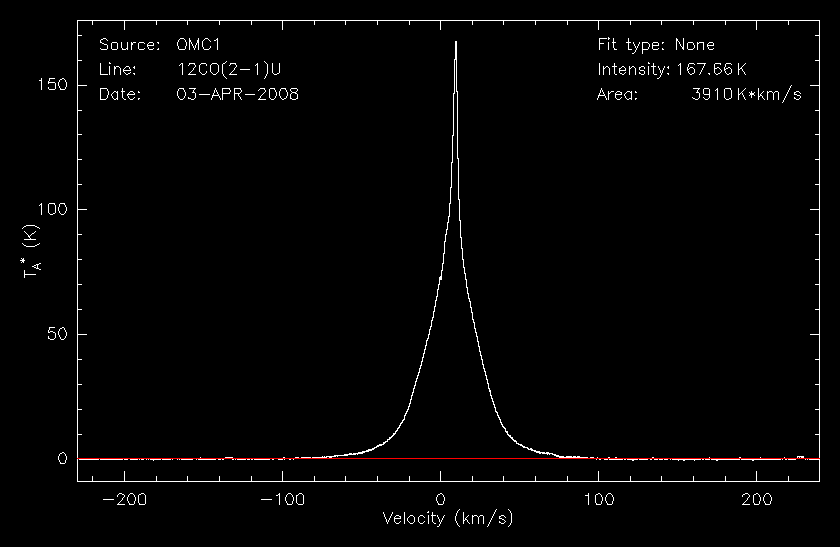

2008-04-03
2.10
44.2
167.66
3910.40
6.984
23.32

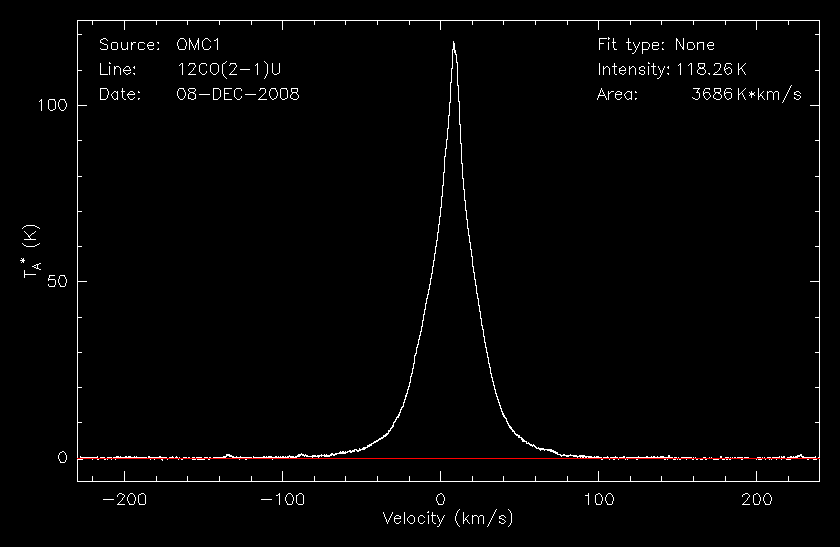

2008-12-08
5.39
61.7
118.27
3686.02
6.755
31.17

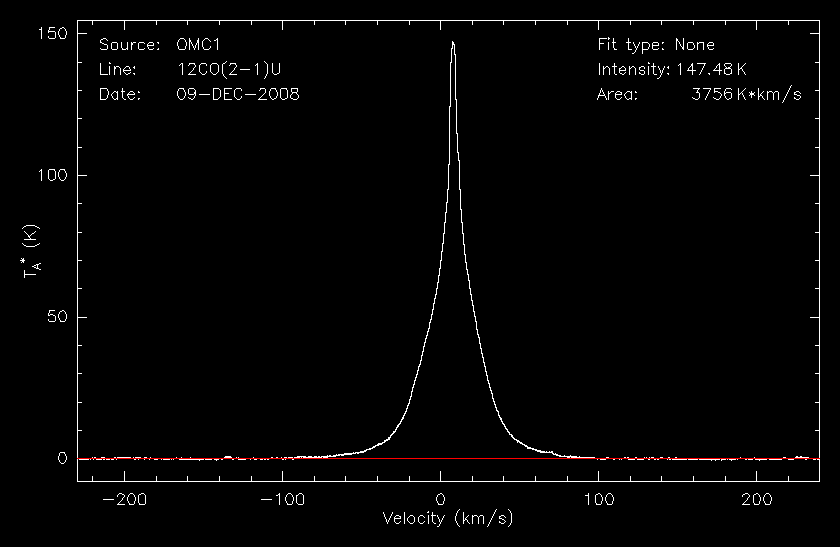

2008-12-09
4.23
69.2
147.49
3756.99
7.022
25.47

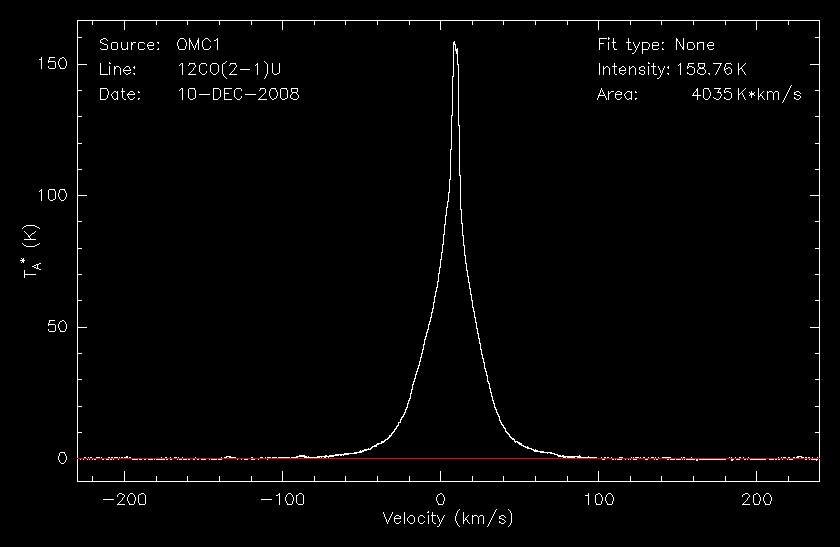

2008-12-10
3.90
46.7
158.76
4035.87
6.647
25.42

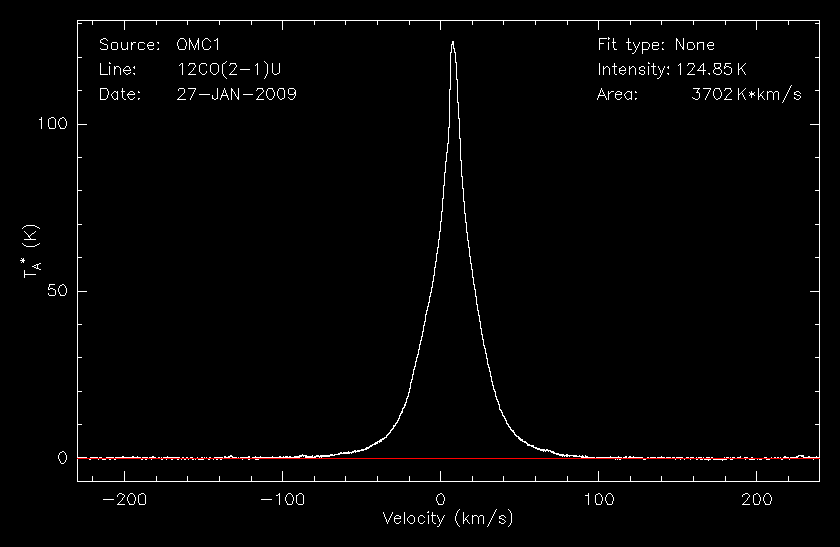

2009-01-27
4.69
67.6
124.85
3702.20
7.038
29.65

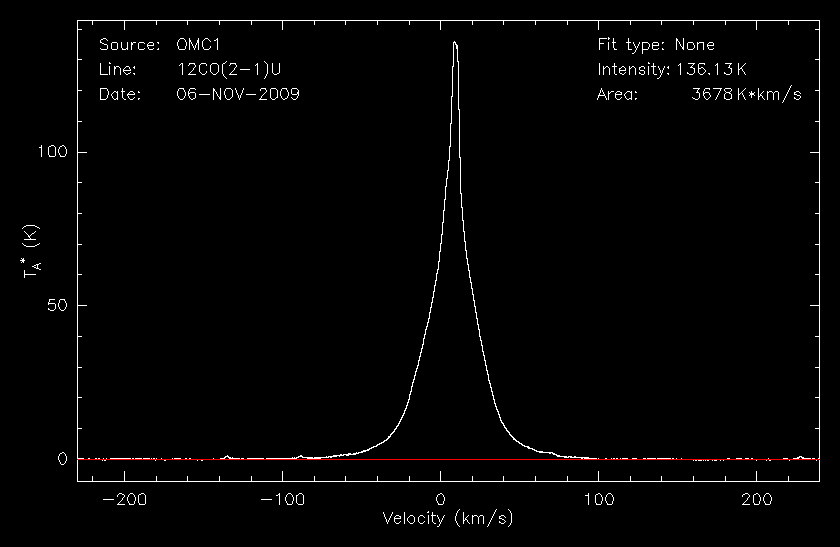

2009-11-06
0.74
48.3
136.14
3678.28
6.927
27.02
2010-03-31
2.64
58.5
116.36
3598.71
7.298
30.93
2010-12-14
0.24
61.0
136.73
3767.01
7.189
27.55
2011-05-31
1.68
48.4
128.20
3464.77
7.202
27.03

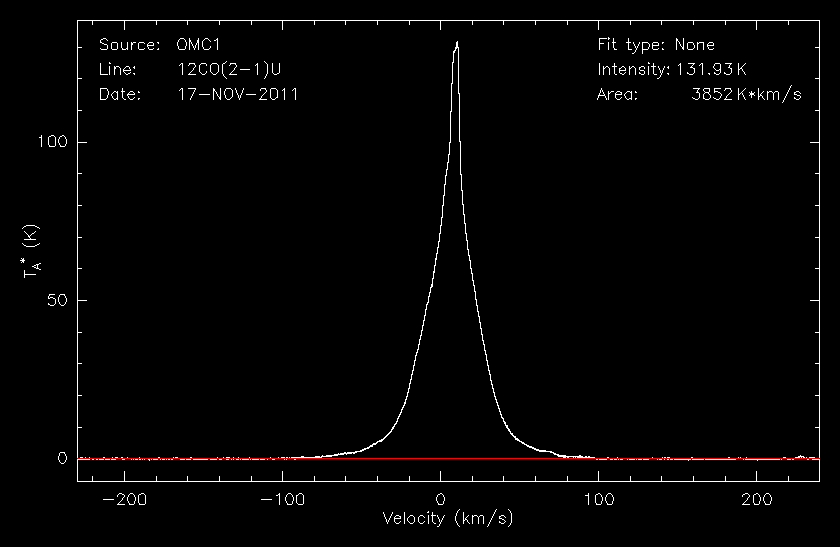

2011-11-17
0.87
38.5
131.93
3852.66
6.651
29.20

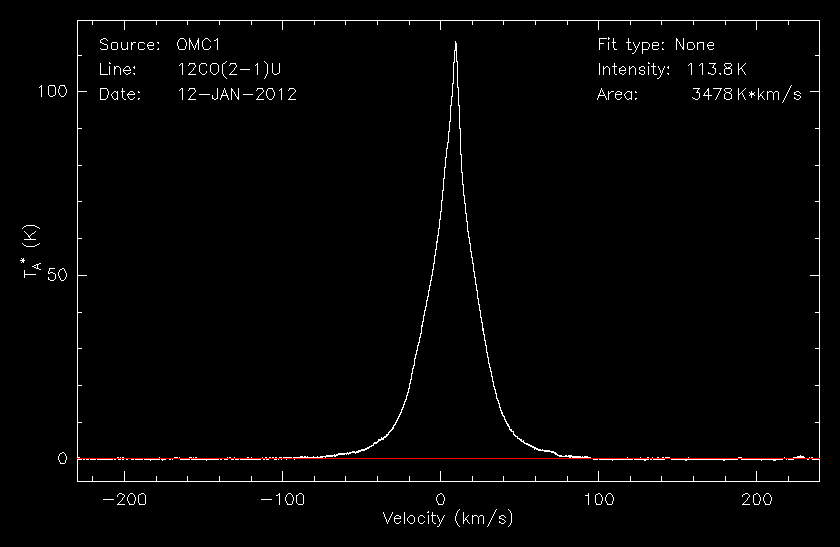

2012-01-12
1.65
53.7
113.81
3478.63
6.980
30.57

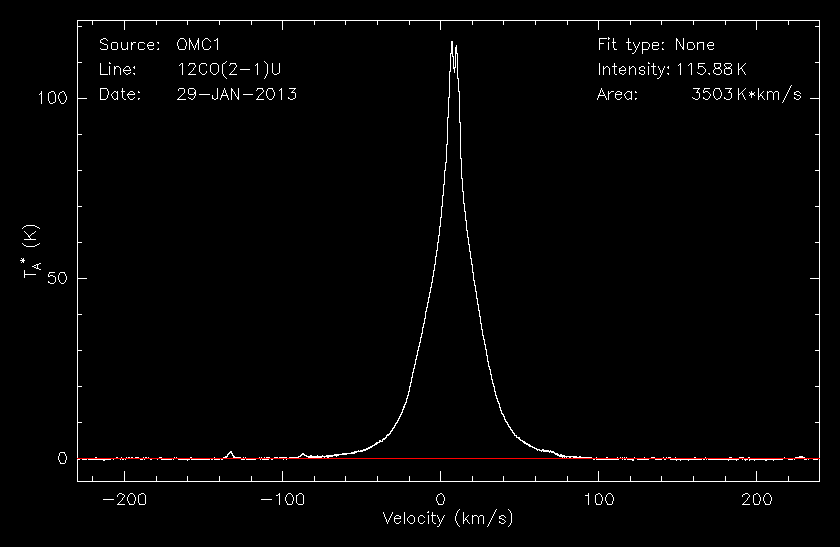

2013-01-29
2.62
71.7
115.89
3503.78
6.989
30.23

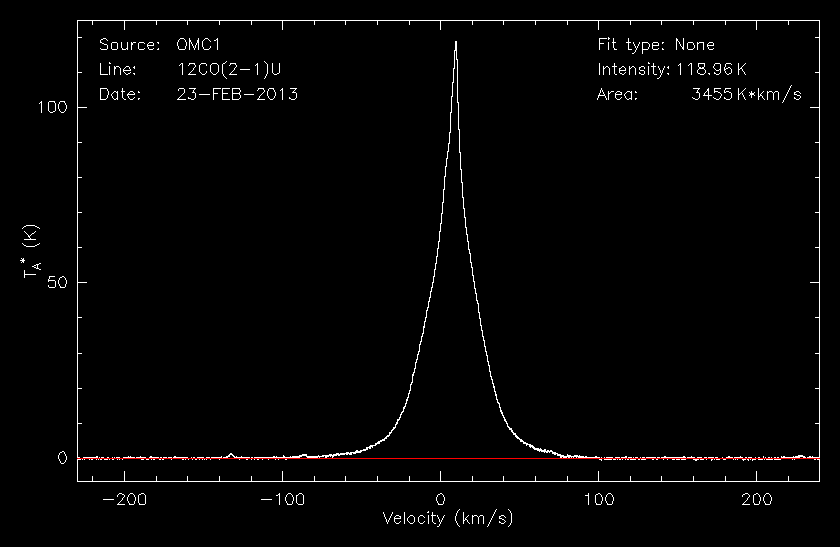

2013-02-23
5.27
43.9
118.96
3455.86
7.118
29.05
2013-03-14
1.03
47.2
135.66
3751.04
7.180
27.65

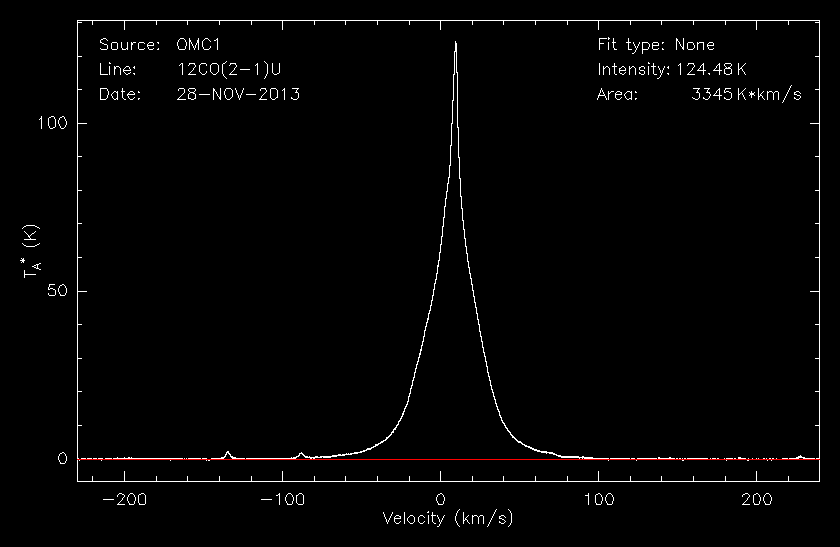

2013-11-28
0.43
46.0
124.49
3345.47
6.784
26.87

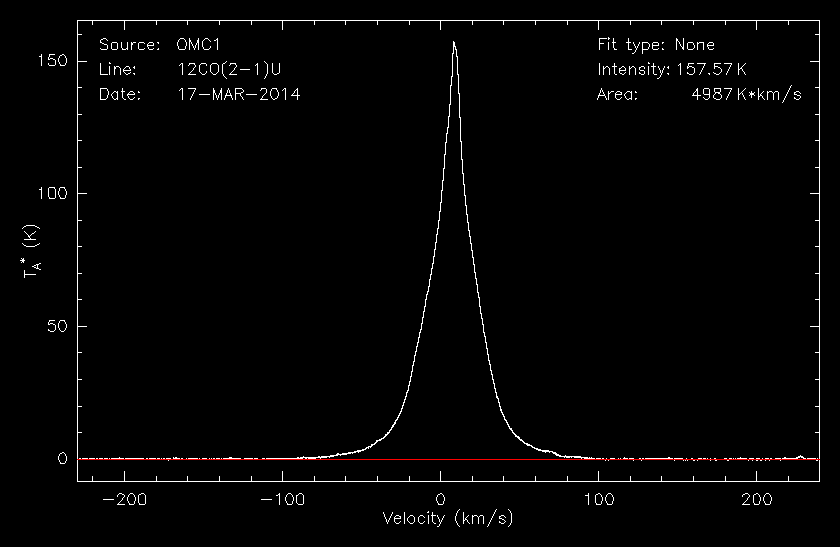

2014-03-17
0.68
57.3
157.57
4987.04
6.952
31.65
2014-04-09
0.97
72.2
208.91
4825.27
7.557
23.10
2014-04-10
2.65
71.4
182.37
4760.23
7.255
26.10

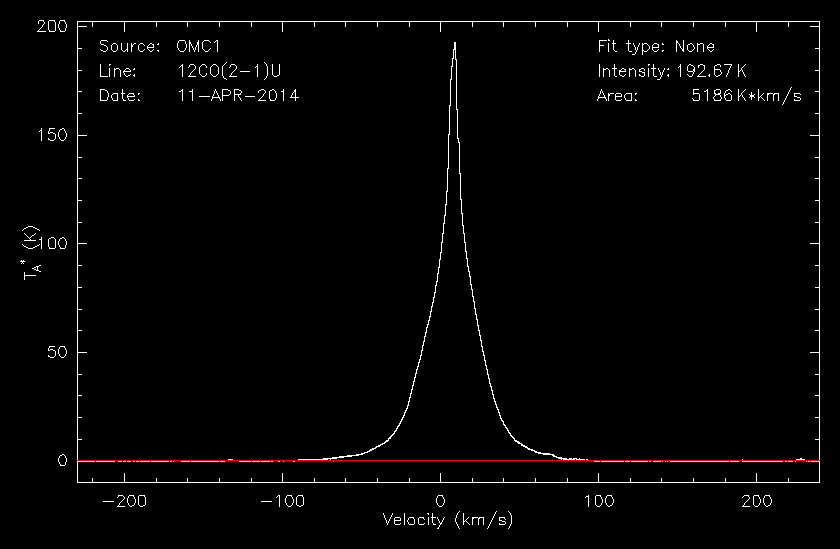

2014-04-11
0.25
70.1
192.68
5186.51
7.209
26.92
2014-04-21
1.20
61.9
155.43
4994.11
7.083
32.13

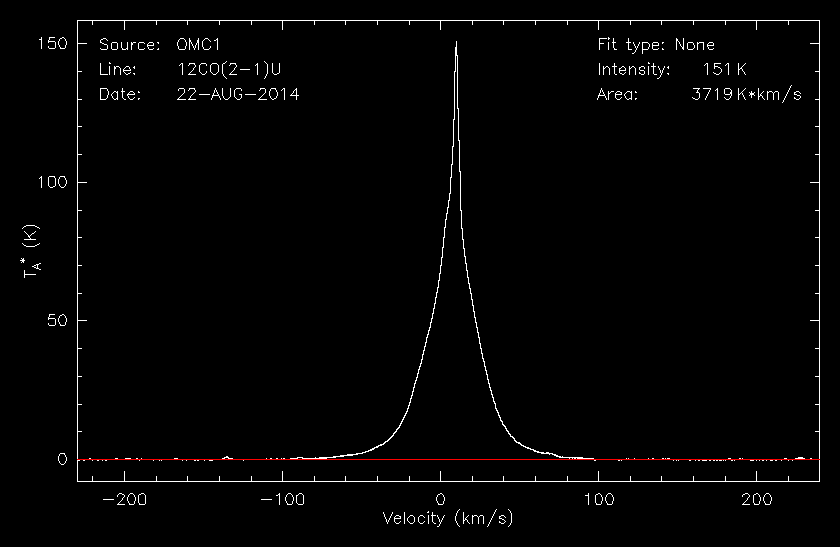

2014-08-22
0.53
72.2
151.00
3719.44
7.328
24.63
2014-09-23
1.74
48.4
136.59
3704.26
7.089
27.12
2014-10-24
1.05
69.3
140.53
3737.98
7.382
26.60
2014-12-30
1.84
51.9
137.97
3656.24
7.084
26.50

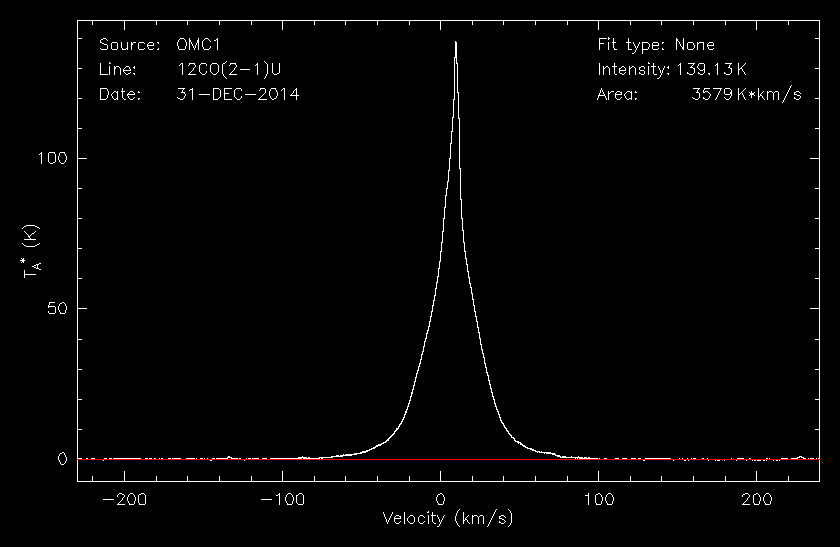

2014-12-31
1.69
65.6
139.13
3579.26
7.304
25.73
2015-01-11
5.20
72.3
124.72
3755.04
7.014
30.11

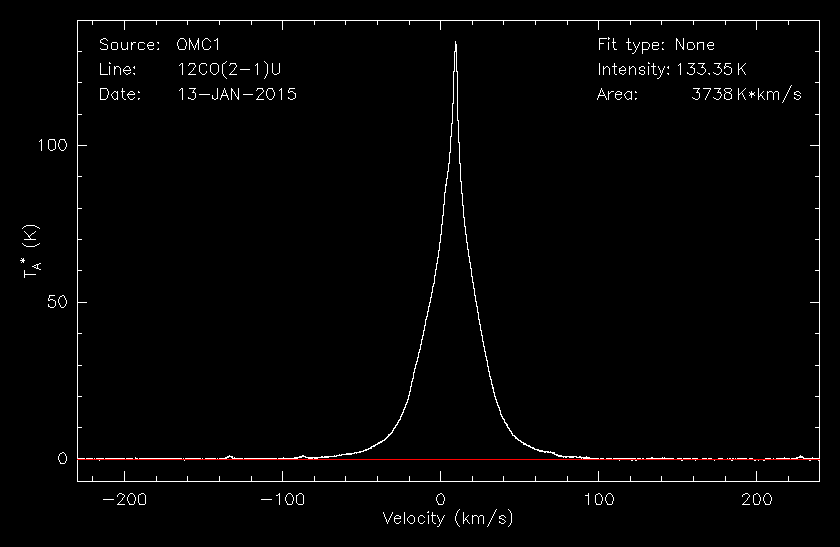

2015-01-13
2.16
50.2
133.35
3738.99
7.101
28.04
2015-04-04
3.15
61.9
110.64
3507.40
7.064
31.70

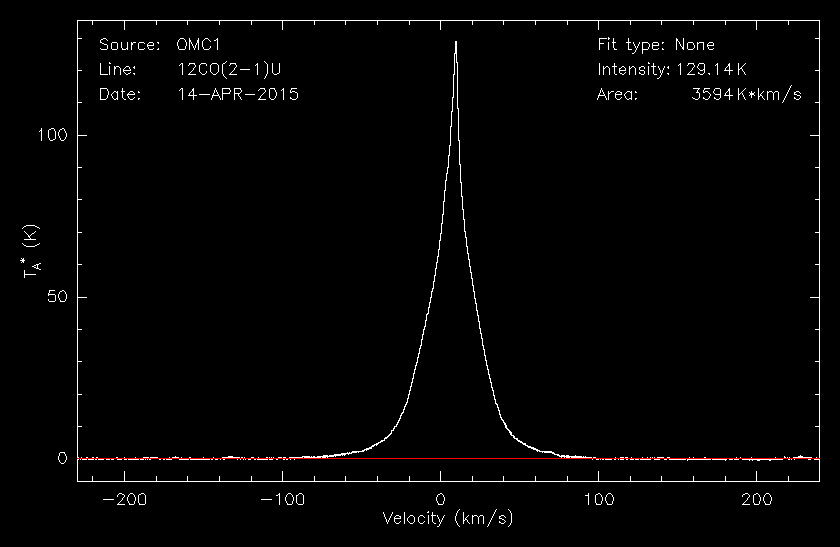

2015-04-14
4.58
48.4
129.14
3594.34
6.811
27.83
2015-05-25
3.11
35.1
135.09
3808.68
6.772
28.19
2015-12-01
2.63
42.5
133.22
3664.35
7.146
27.51
2016-02-10
3.73
70.5
125.18
3469.81
7.613
27.72
2016-09-24
3.73
52.3
127.65
3506.54
7.360
27.47

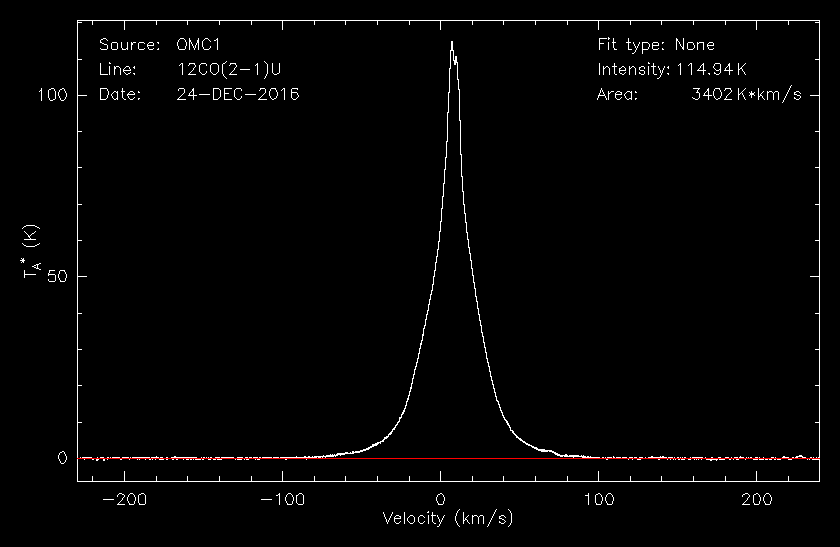

2016-12-24
5.27
71.6
114.95
3402.98
7.532
29.61

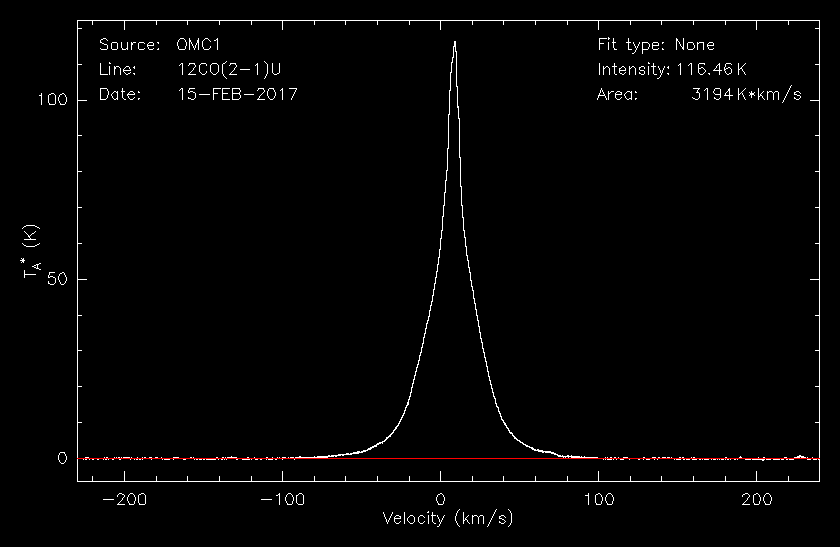

2017-02-15
3.83
70.6
116.47
3194.18
7.245
27.43
