Home > Instrumentation > SHeFI receivers > APEX-1 (230 GHz) > APEX-1 Calibration

Source : OH231.8

Line : 13CO(2-1)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

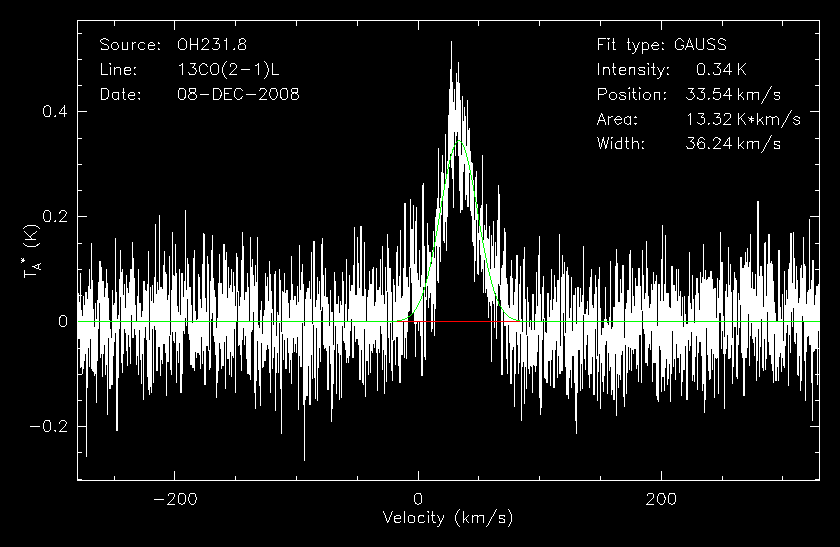

2008-12-08
6.22
66.2
0.35
13.32
33.544
36.24

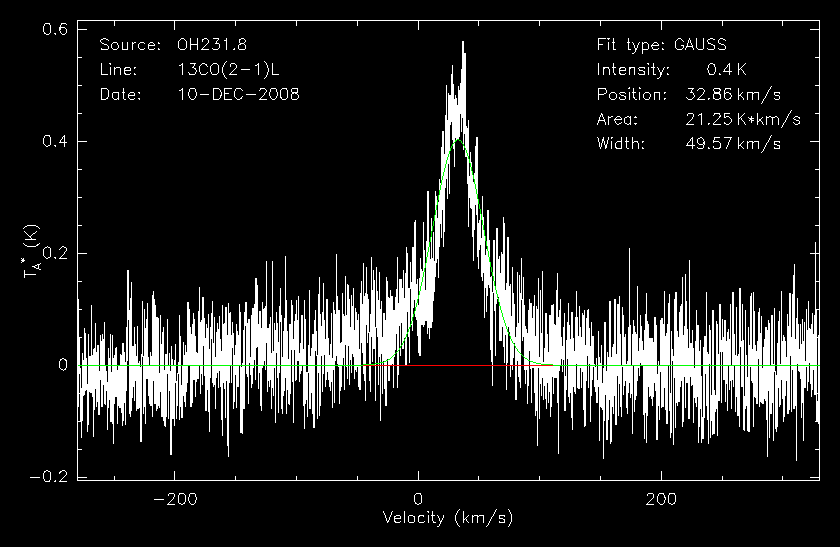

2008-12-10
3.95
49.8
0.40
21.26
32.868
49.57

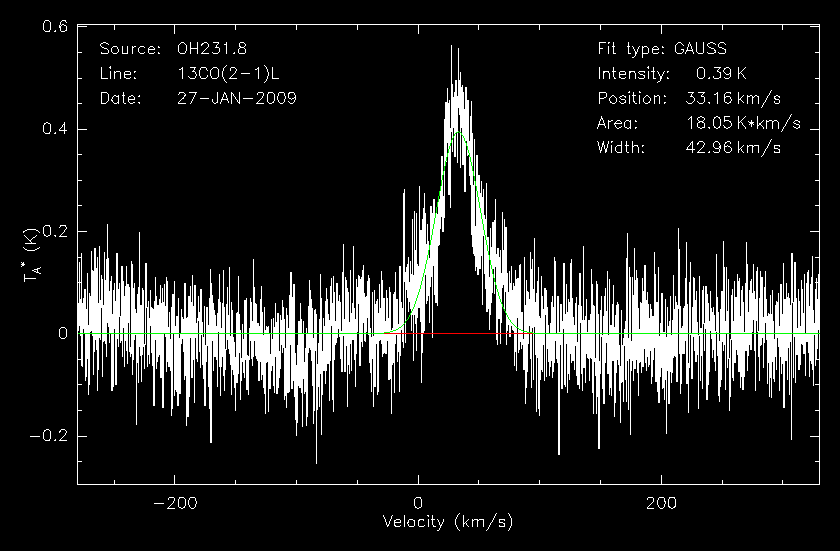

2009-01-27
4.73
46.5
0.39
18.05
33.161
42.97

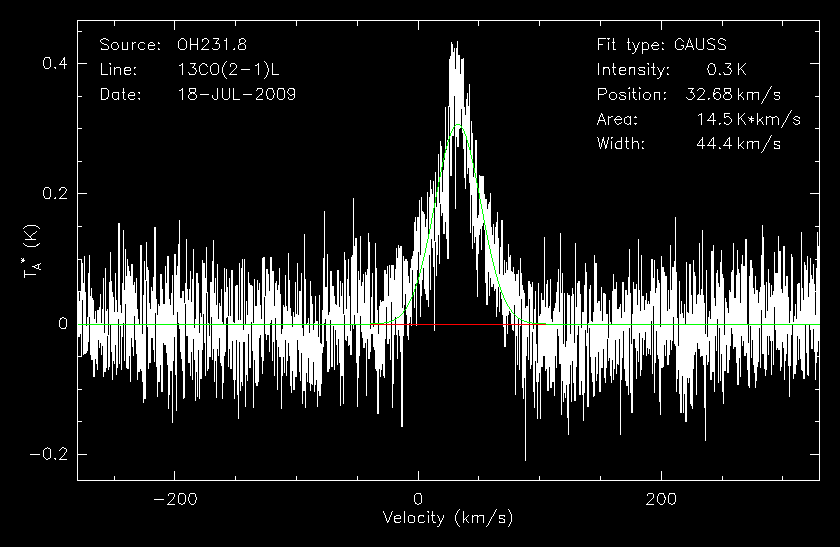

2009-07-18
2.36
37.2
0.31
14.51
32.687
44.41

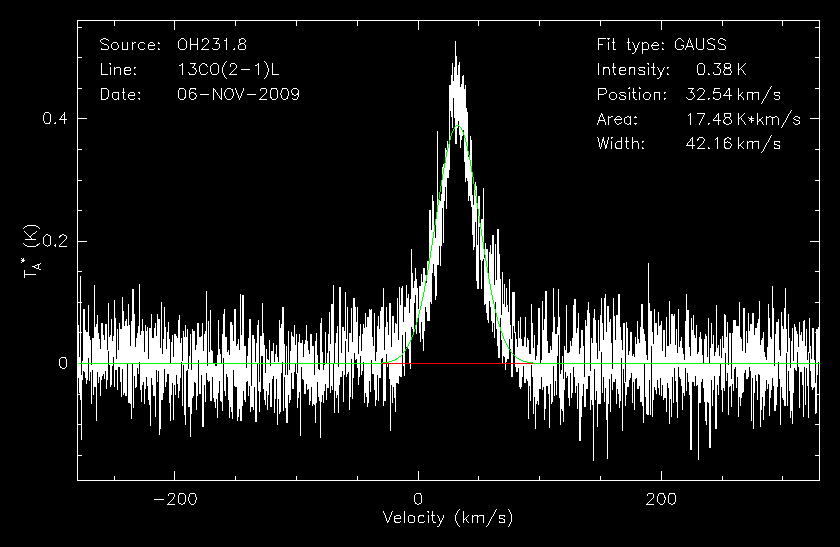

2009-11-06
0.21
65.6
0.39
17.48
32.549
42.16

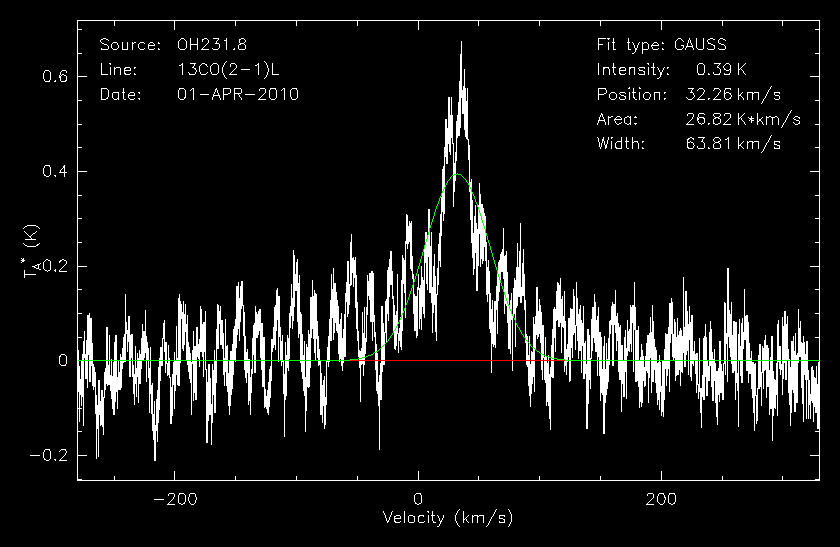

2010-04-01
0.89
57.5
0.39
26.83
32.267
63.81

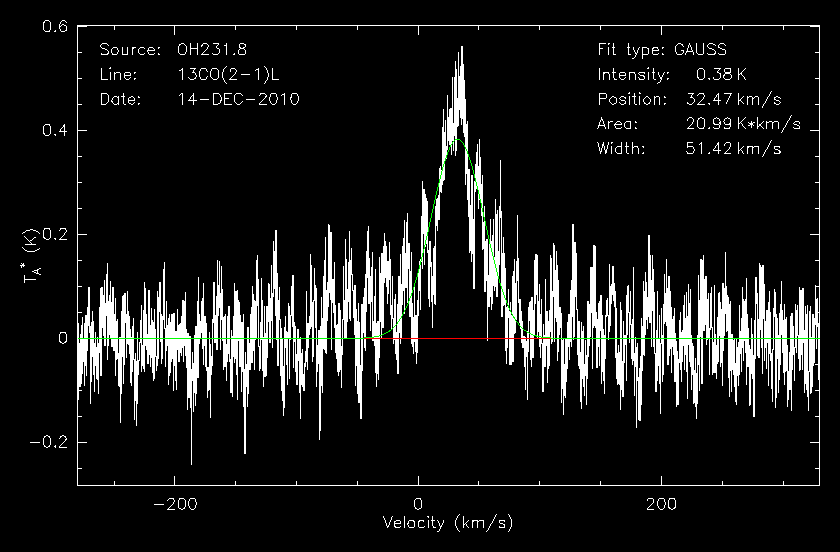

2010-12-14
0.22
69.4
0.38
20.99
32.472
51.42

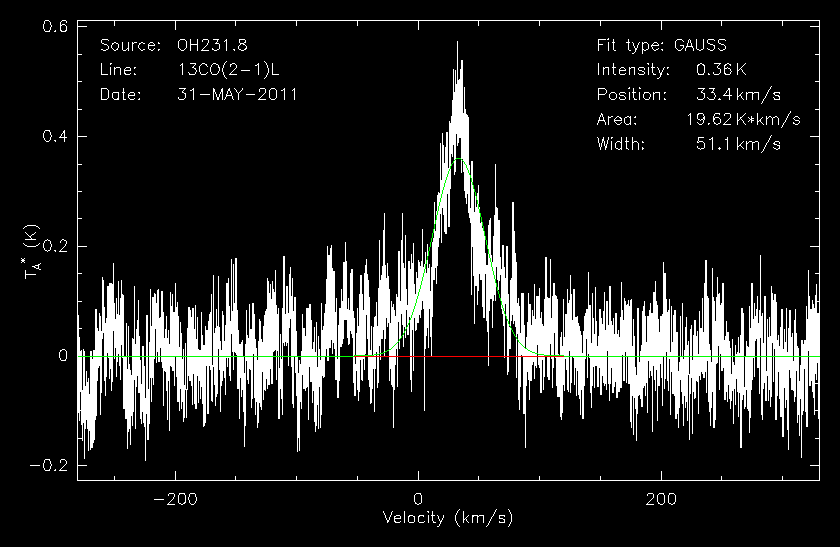

2011-05-31
1.67
37.7
0.36
19.63
33.404
51.10

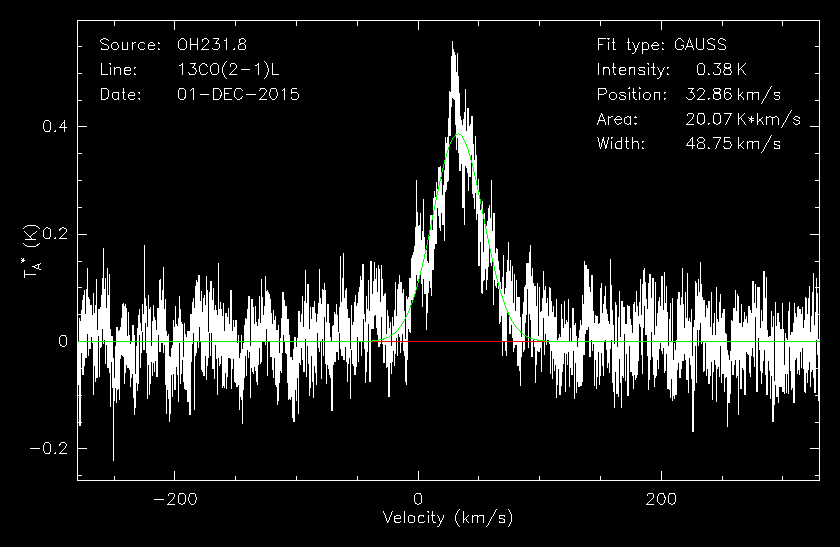

2015-12-01
2.31
49.4
0.39
20.08
32.861
48.75
