Source : N2071IR

Line : CH3OH(5-4)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s]Linewidth [km/s]Spectrum

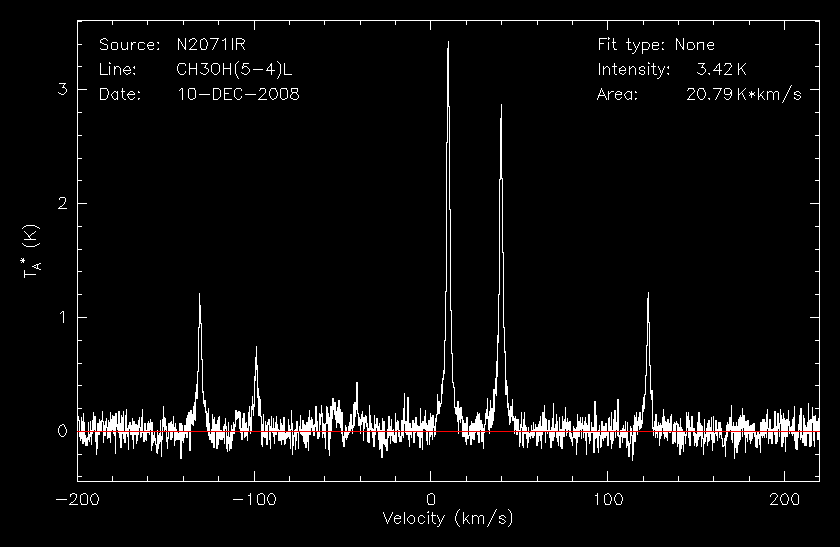

2008-12-10
3.92
53.9
3.43
20.79
---
---

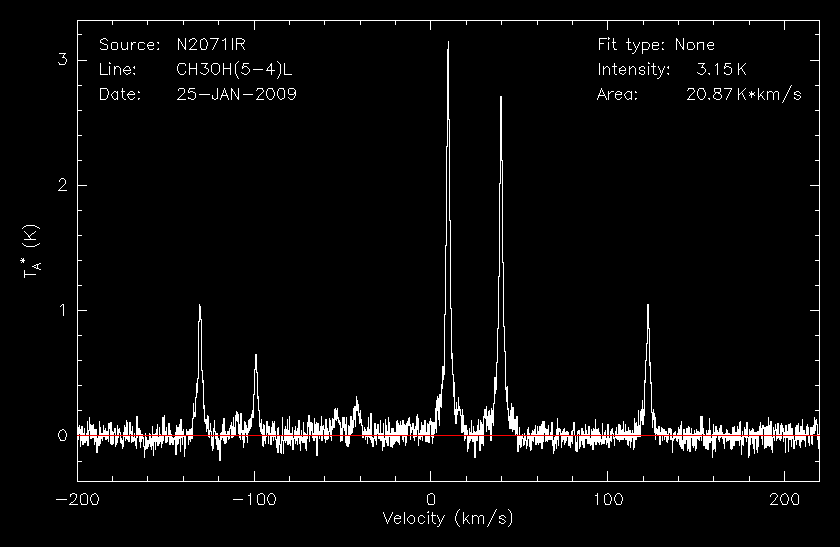

2009-01-25
1.80
62.9
3.15
20.88
---
---

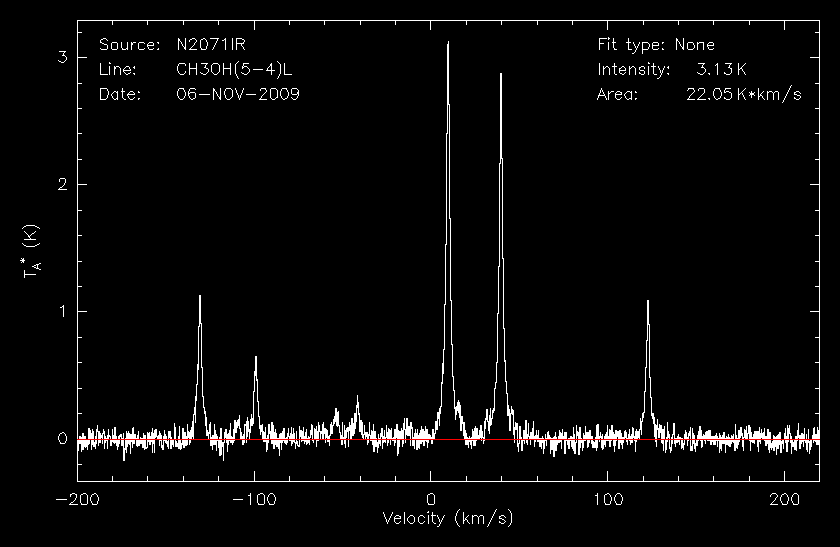

2009-11-06
0.57
54.8
3.13
22.06
---
---

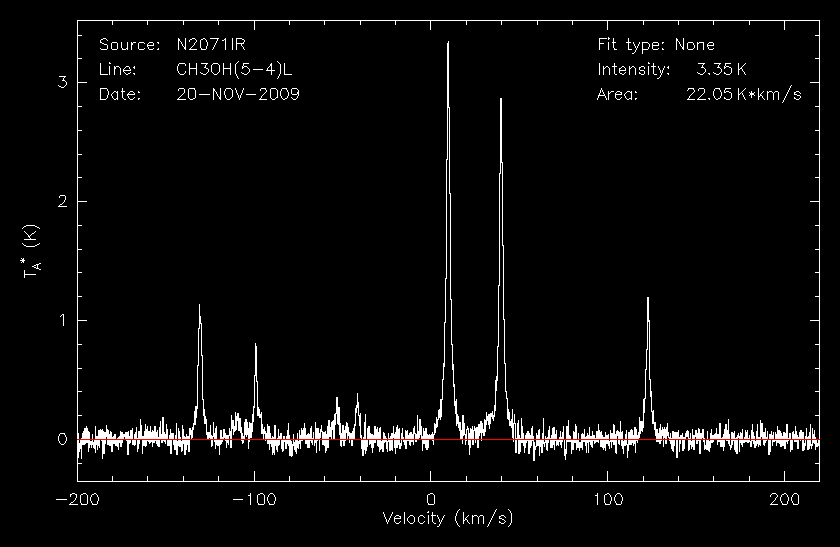

2009-11-20
1.92
66.5
3.35
22.06
---
---

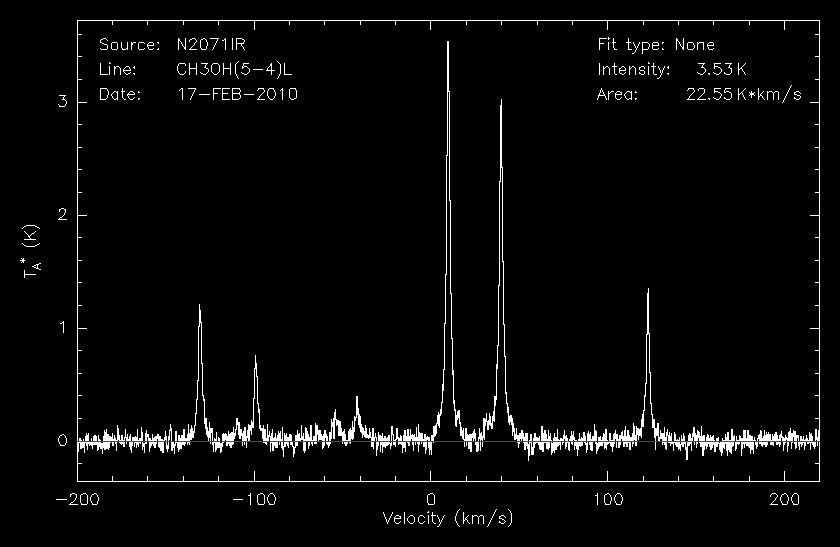

2010-02-17
0.44
25.0
3.54
22.55
---
---

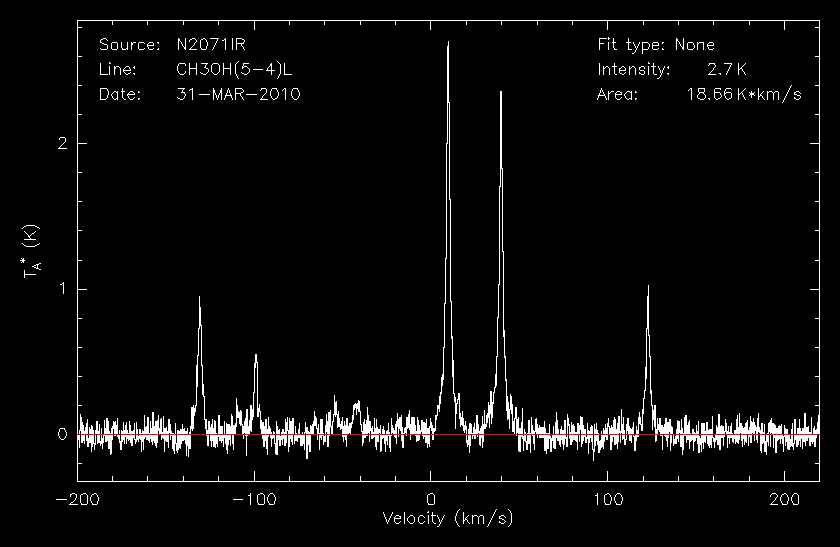

2010-03-31
1.79
65.8
2.70
18.67
---
---

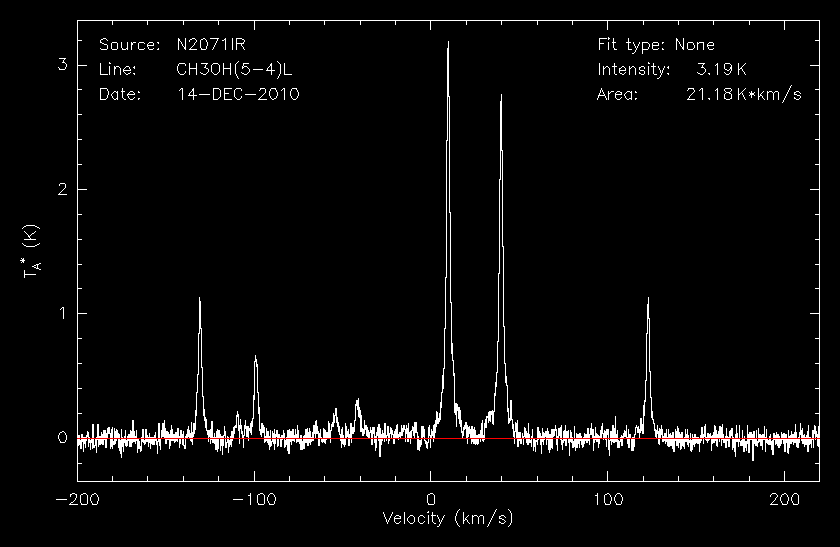

2010-12-14
0.54
65.0
3.19
21.18
---
---

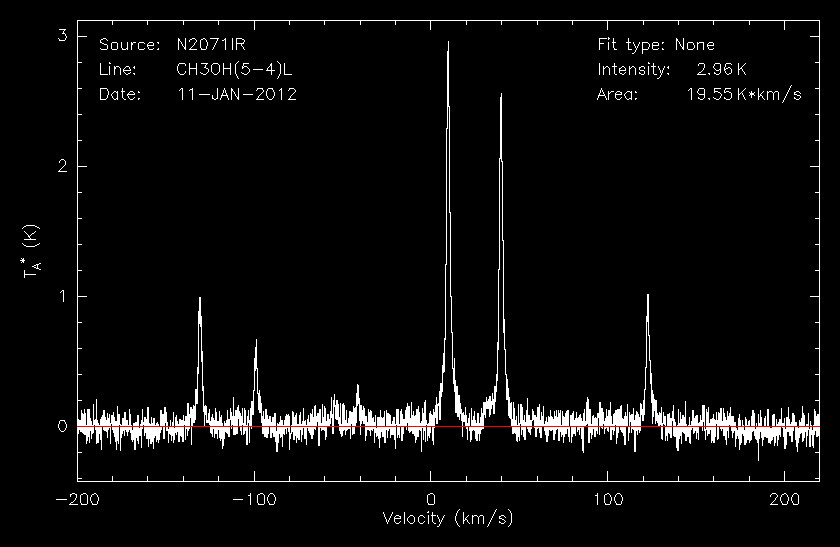

2012-01-11
1.83
55.4
2.96
19.56
---
---

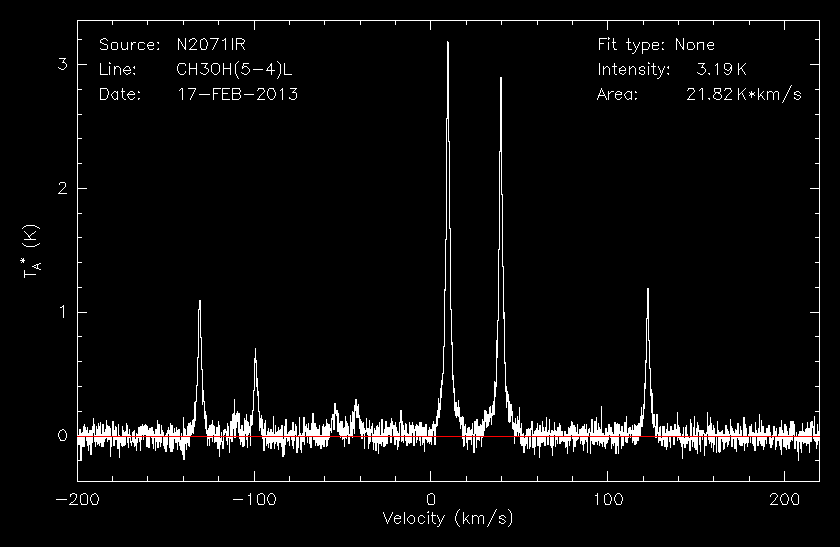

2013-02-17
2.26
66.6
3.19
21.82
---
---
2013-03-06
2.19
47.2
3.15
19.24
---
---

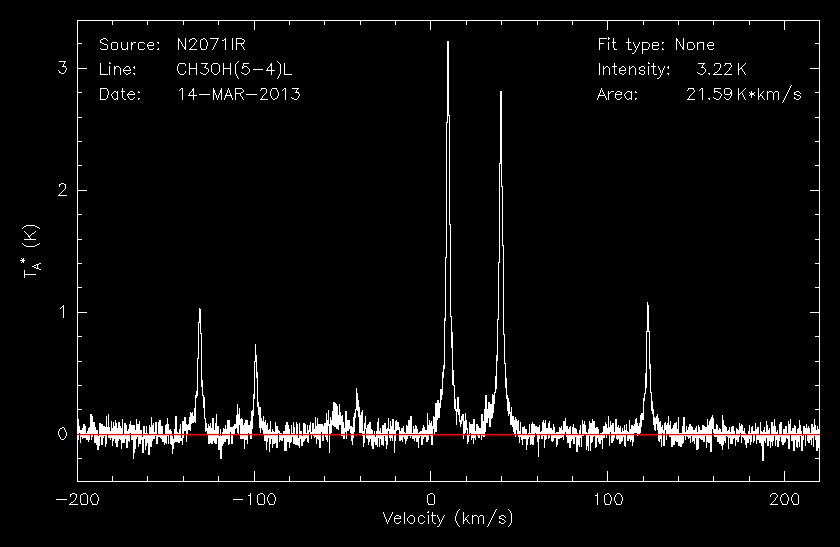

2013-03-14
0.96
51.0
3.22
21.59
---
---

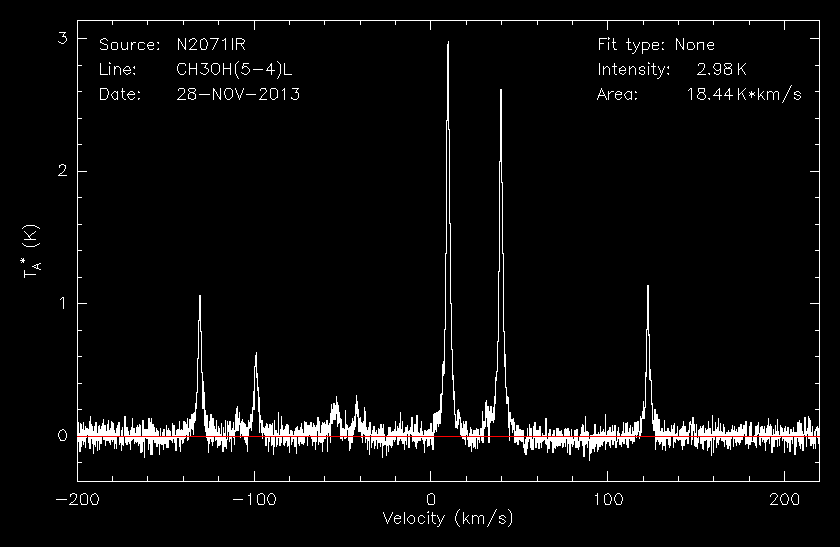

2013-11-28
0.27
51.2
2.98
18.44
---
---

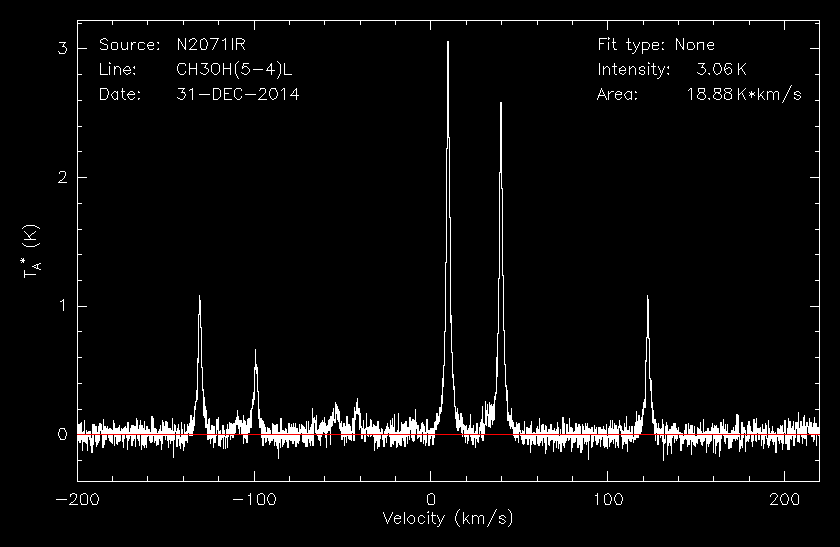

2014-12-31
1.64
54.8
3.06
18.89
---
---

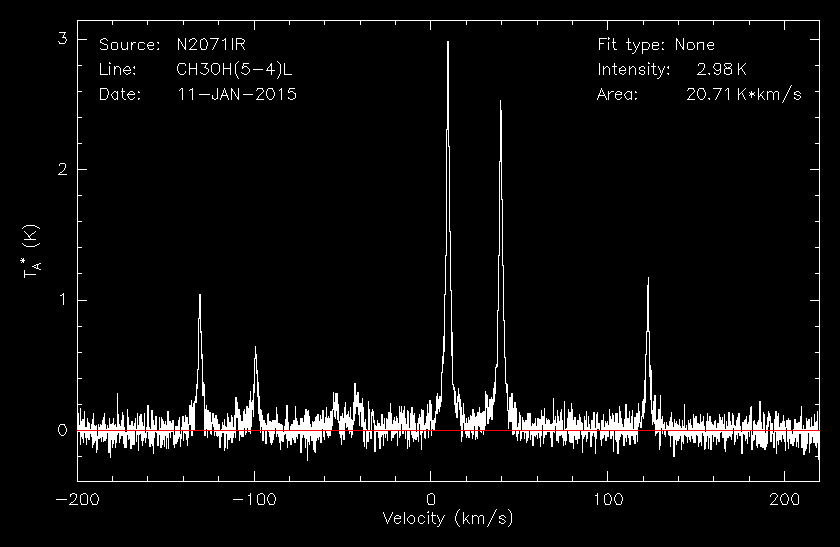

2015-01-11
4.59
59.6
2.99
20.72
---
---

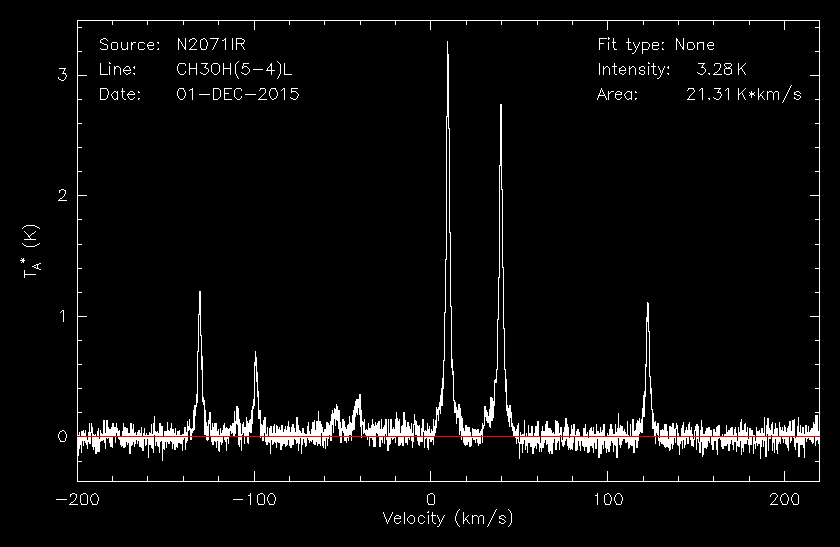

2015-12-01
2.47
49.2
3.28
21.32
---
---

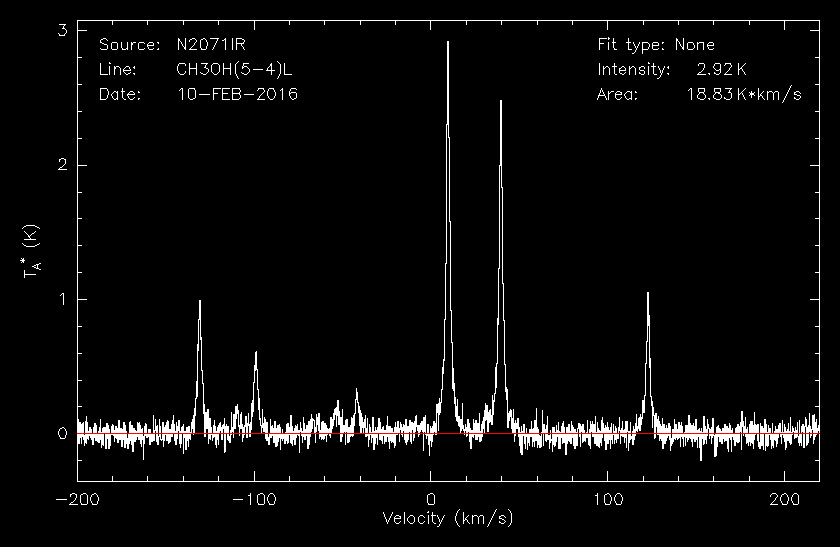

2016-02-10
2.55
52.2
2.92
18.83
---
---

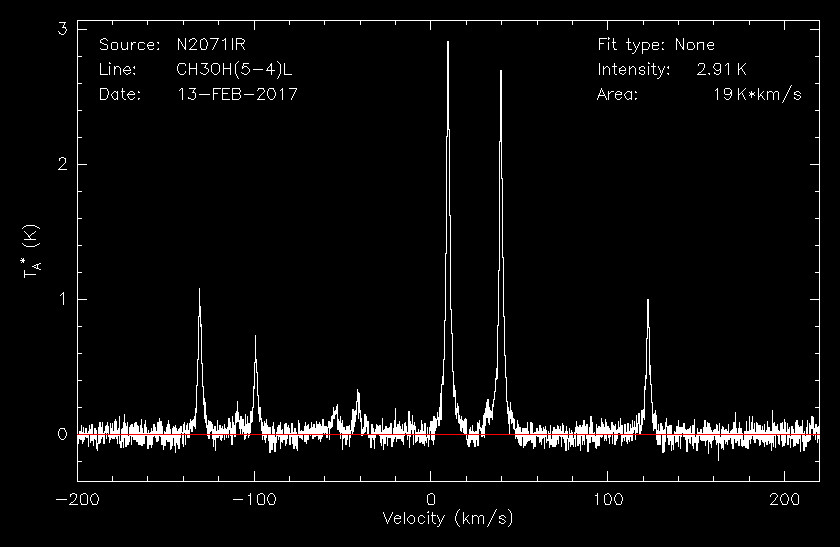

2017-02-13
2.70
65.2
2.91
19.01
---
---
