Home > Instrumentation > SHeFI receivers > APEX-1 (230 GHz) > APEX-1 Calibration

Source : N2071IR

Line : 12CO(2-1)U

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

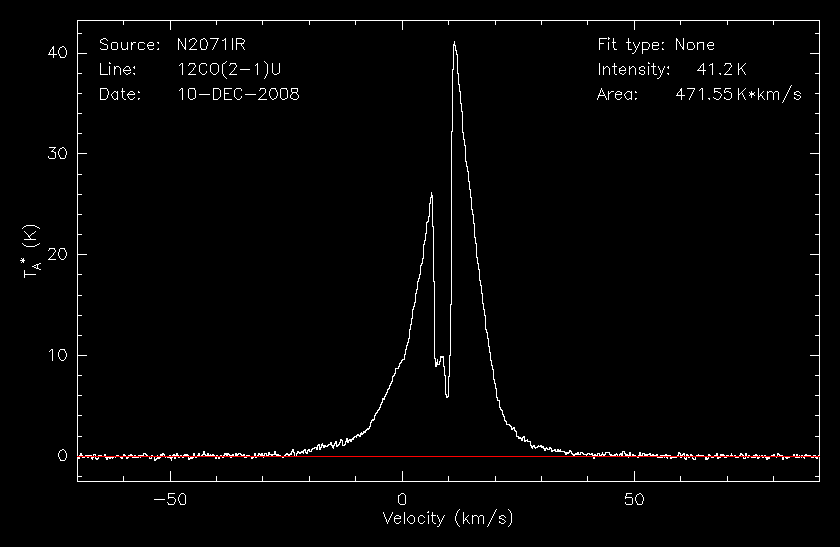

2008-12-10
3.72
49.8
41.21
471.56
9.203
11.44
2009-01-25
1.69
65.2
39.60
458.58
9.518
11.58

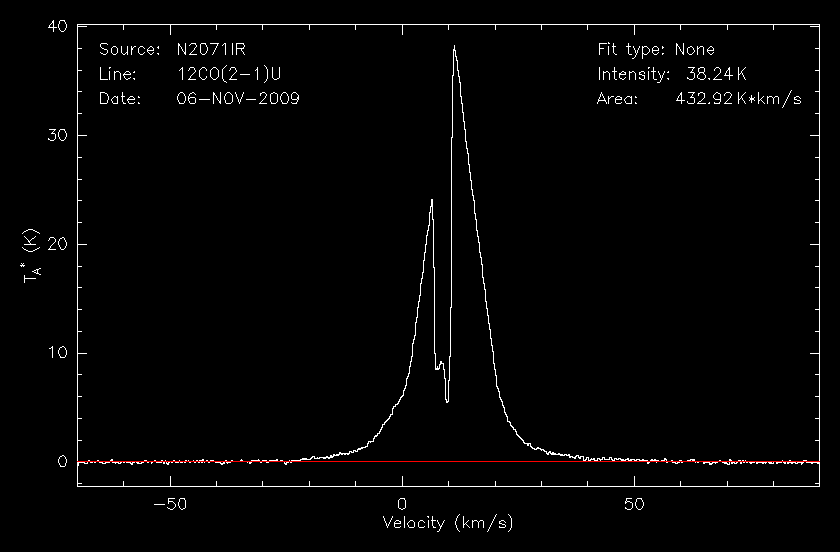

2009-11-06
0.59
50.4
38.24
432.92
10.976
11.32

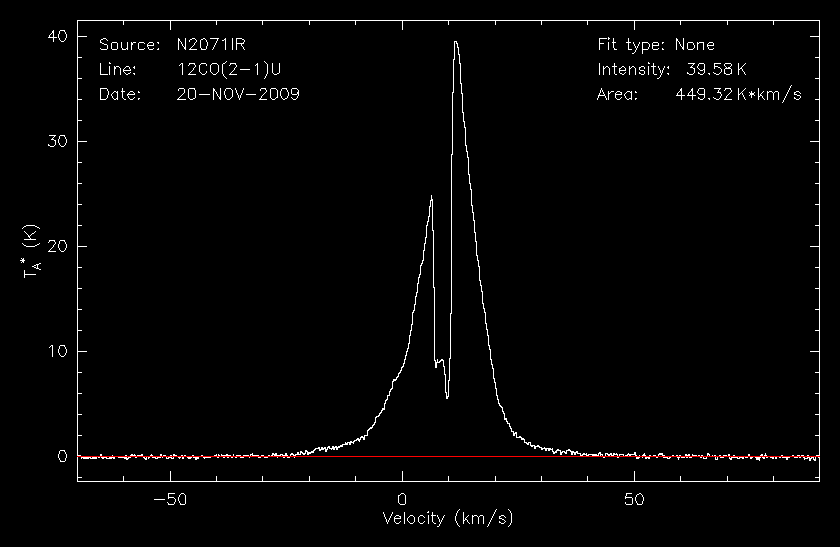

2009-11-20
2.41
63.1
39.58
449.32
9.650
11.35

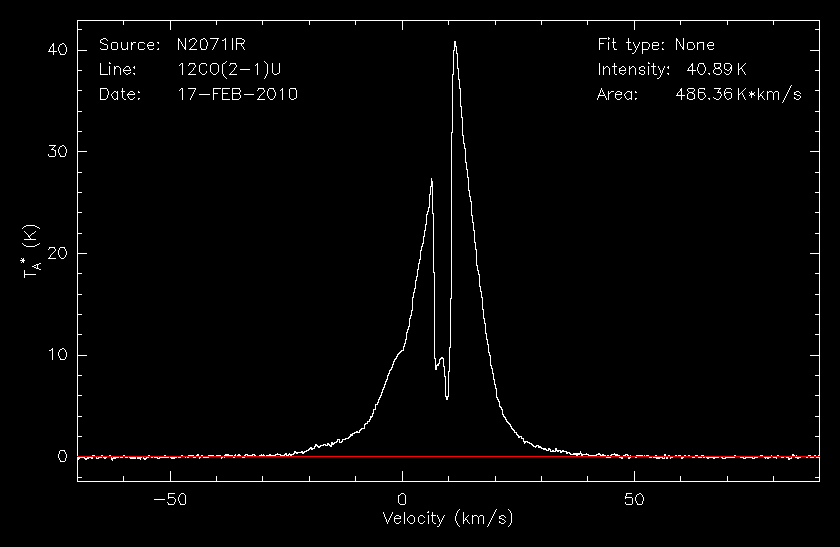

2010-02-17
0.42
30.6
40.90
486.37
8.656
11.89
2010-03-31
1.70
56.8
38.76
443.24
9.079
11.44
2010-12-14
0.36
62.0
41.46
467.63
9.792
11.28

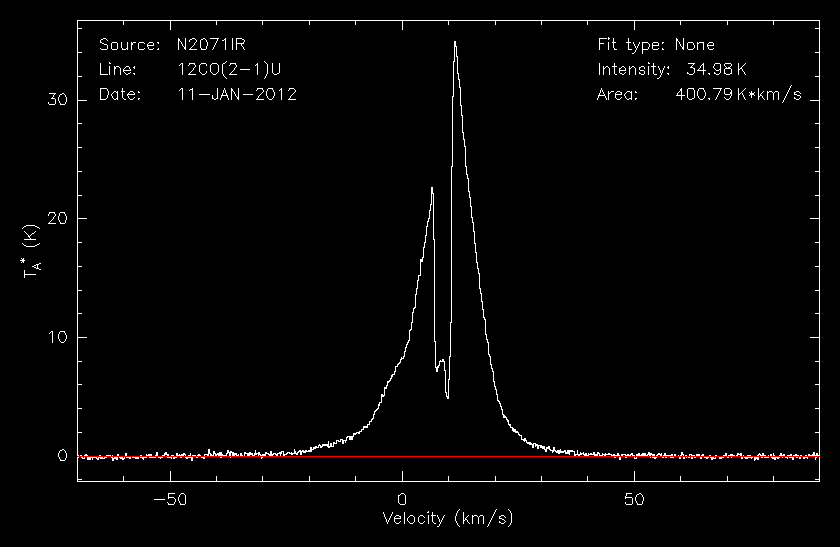

2012-01-11
2.30
59.4
34.98
400.79
8.898
11.46
2012-11-20
0.44
66.6
38.39
431.87
8.940
11.25

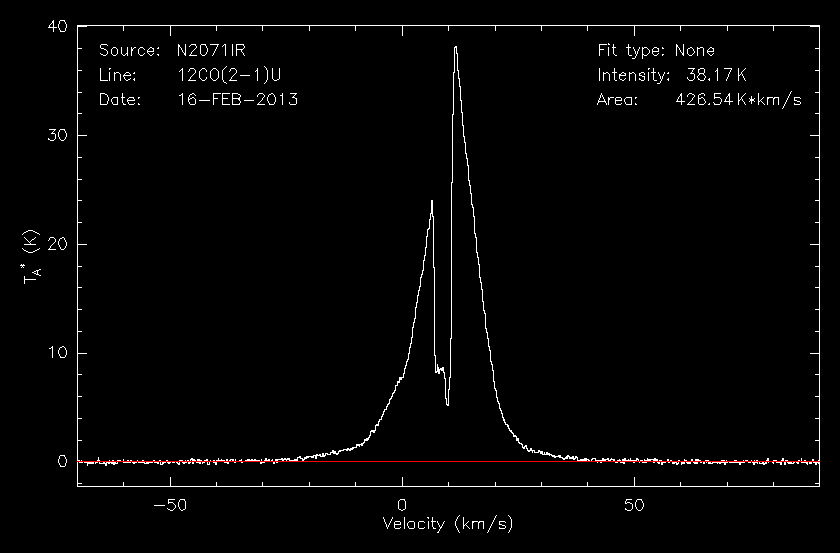

2013-02-16
2.68
65.4
38.17
426.55
9.747
11.17

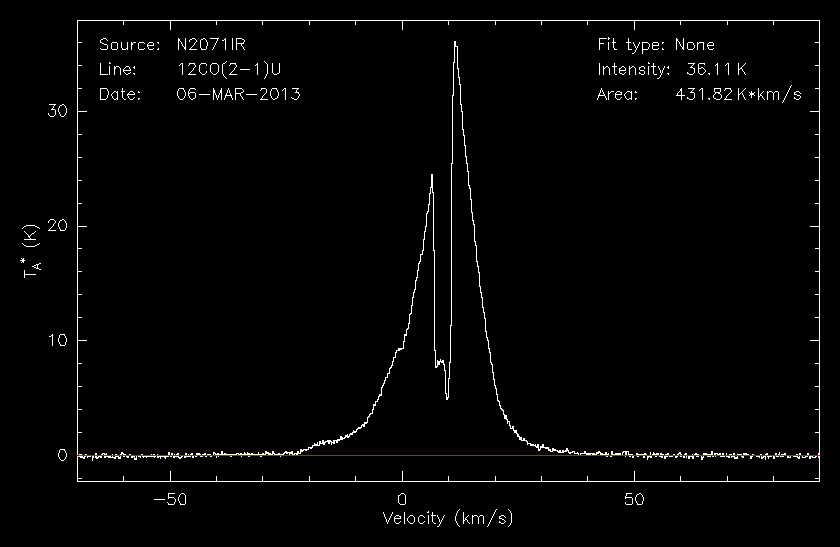

2013-03-06
2.40
52.0
36.11
431.83
8.552
11.96
2013-03-14
1.19
55.2
35.38
424.36
8.946
11.99

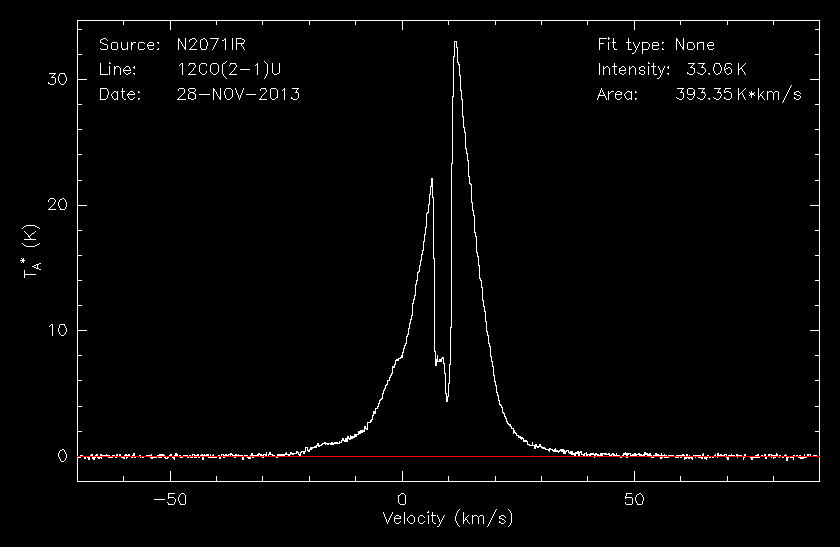

2013-11-28
0.37
55.9
33.07
393.35
8.994
11.90
2014-12-31
1.65
50.3
39.67
445.04
9.064
11.22

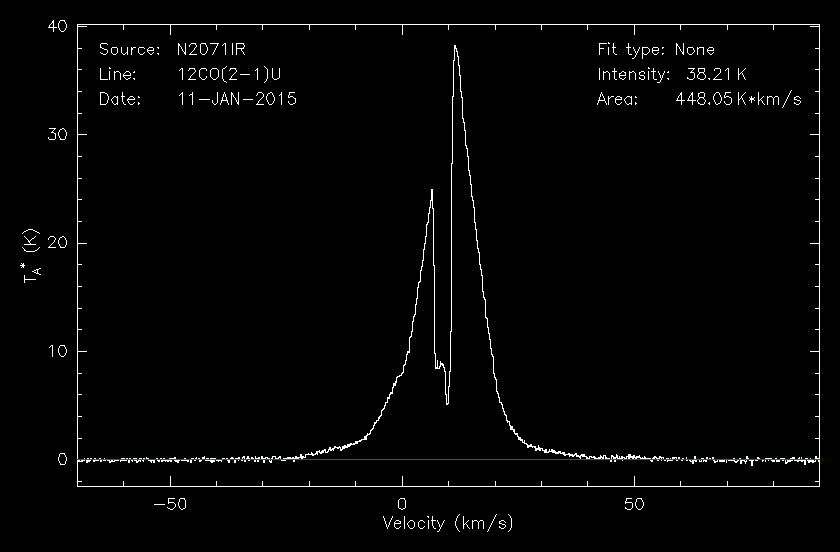

2015-01-11
4.68
62.9
38.21
448.06
9.895
11.73
2015-12-01
2.64
44.8
39.66
452.80
9.262
11.42
2016-02-10
2.61
56.2
35.26
416.18
8.726
11.80

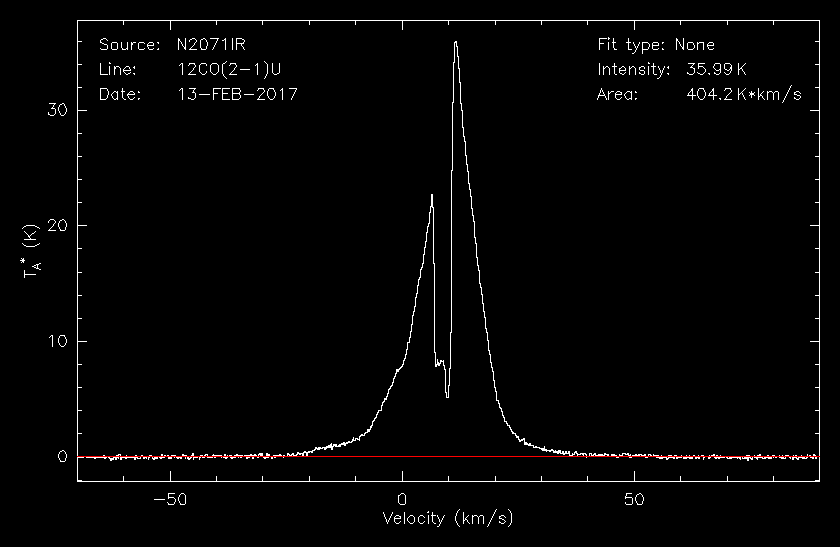

2017-02-13
3.17
66.3
36.00
404.20
9.351
11.23
