APEX-1 (230 GHz)
MPIfR Bonn   ESO   Onsala Space Observatory
  APEX TWIKI CONTACT SEARCH HELP NEWS DISCLAIMER

Home > Instrumentation > SHeFI receivers > APEX-1 (230 GHz) > APEX-1 Calibration

Source : M17SW

Line : 13CO(2-1)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

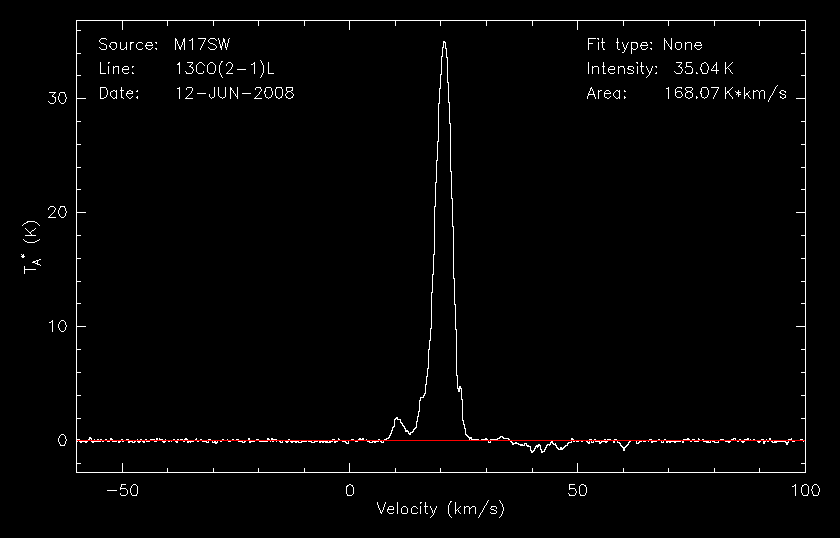

2008-06-12
0.04
62.7
35.05
168.07
20.031
4.80

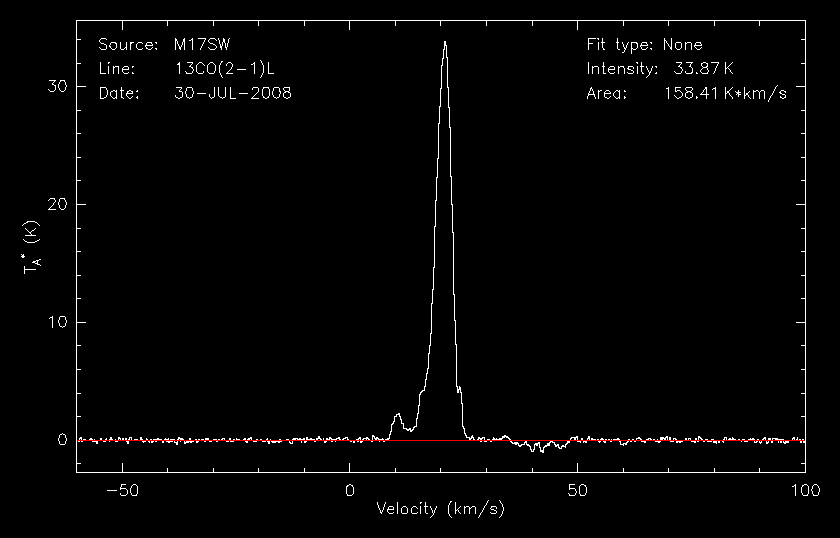

2008-07-30
1.42
39.0
33.87
158.41
19.897
4.68

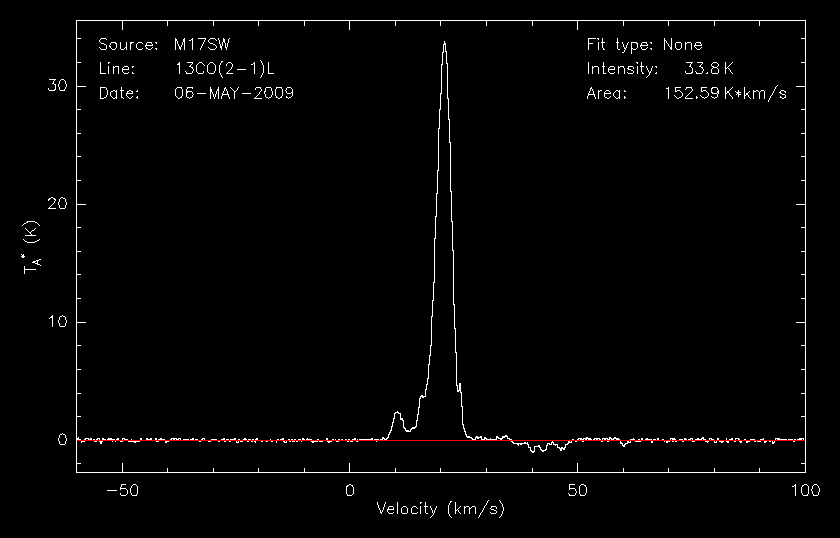

2009-05-06
0.41
68.9
33.81
152.59
19.906
4.51

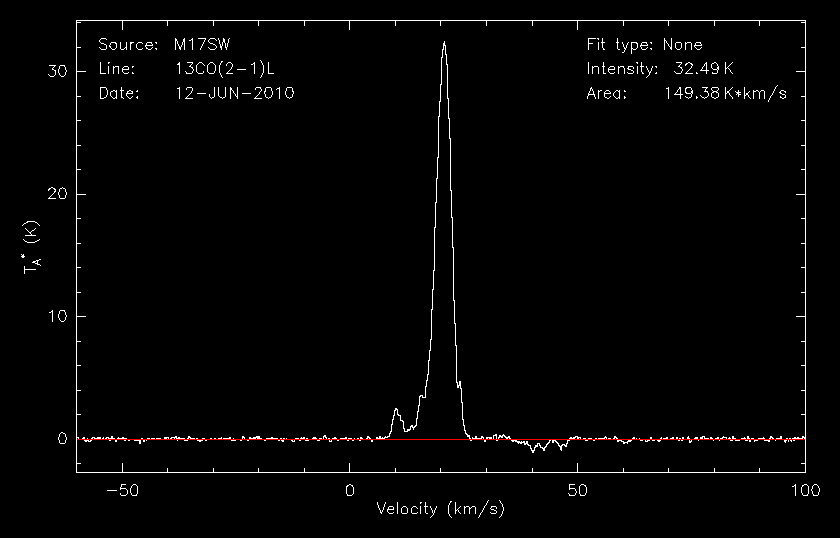

2010-06-12
1.32
65.1
32.50
149.39
19.914
4.60

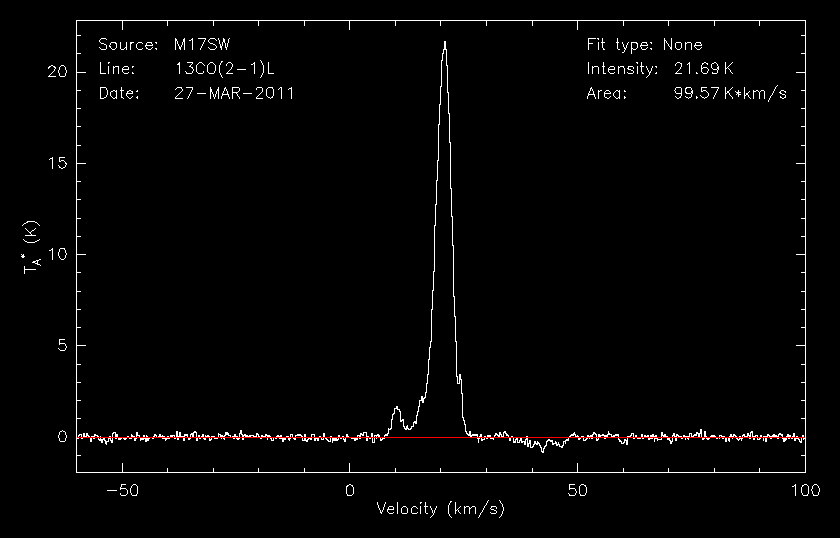

2011-03-27
5.76
45.0
21.70
99.58
19.959
4.59

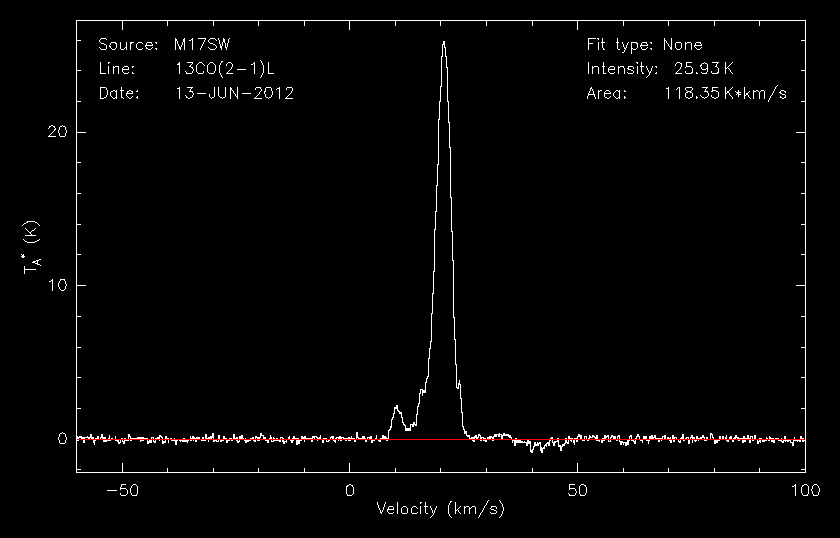

2012-06-13
2.68
43.2
25.94
118.35
19.776
4.56

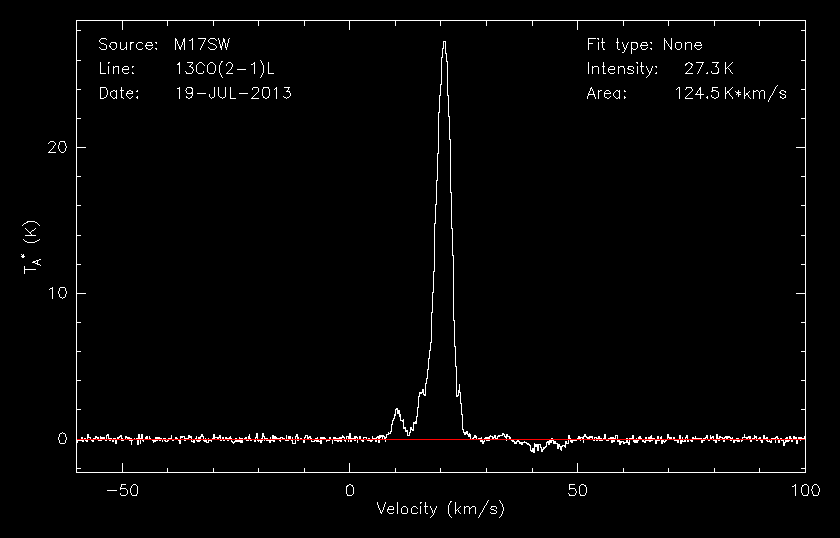

2013-07-19
2.65
65.3
27.31
124.50
19.806
4.56

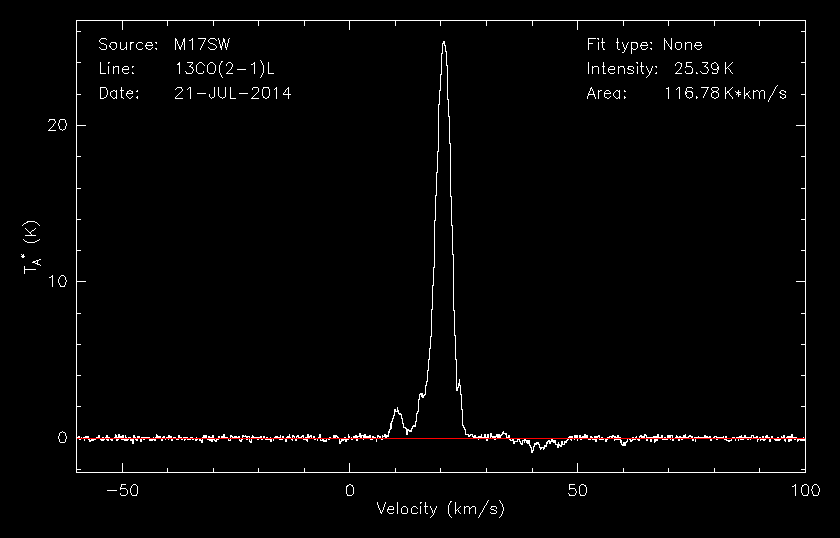

2014-07-21
1.41
35.3
25.40
116.79
19.845
4.60

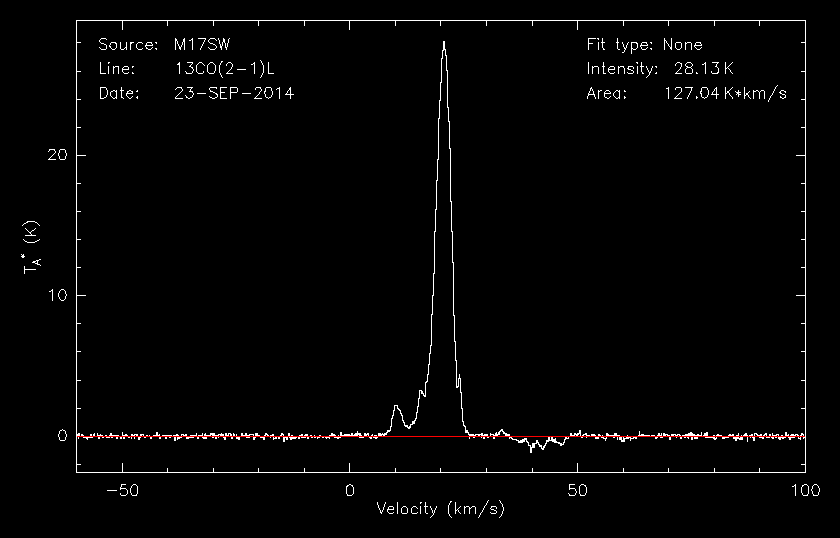

2014-09-23
2.39
47.6
28.13
127.04
19.797
4.52
2015-05-25
3.07
48.5
30.97
140.90
19.792
4.55
