Source : IRAS16293

Line : H2CO(3-2)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s] Linewidth [km/s] Spectrum

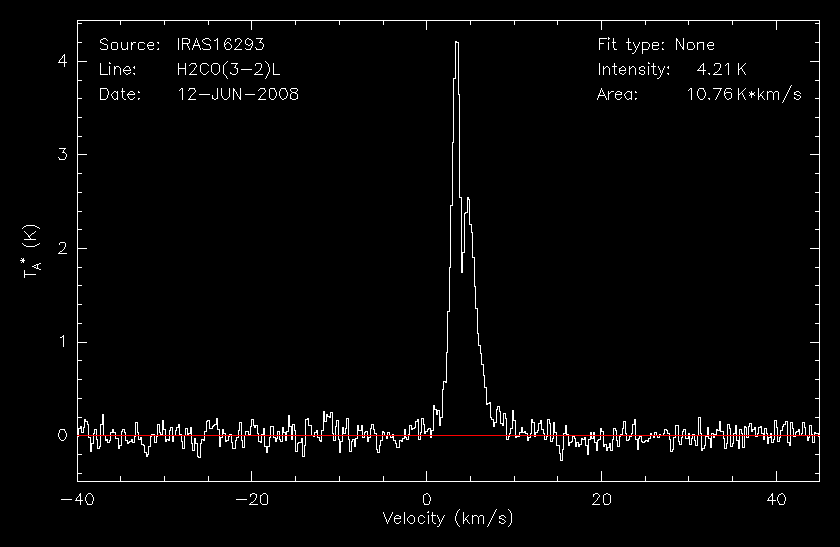

2008-06-12
0.18
47.4
4.22
10.77
4.373
2.55

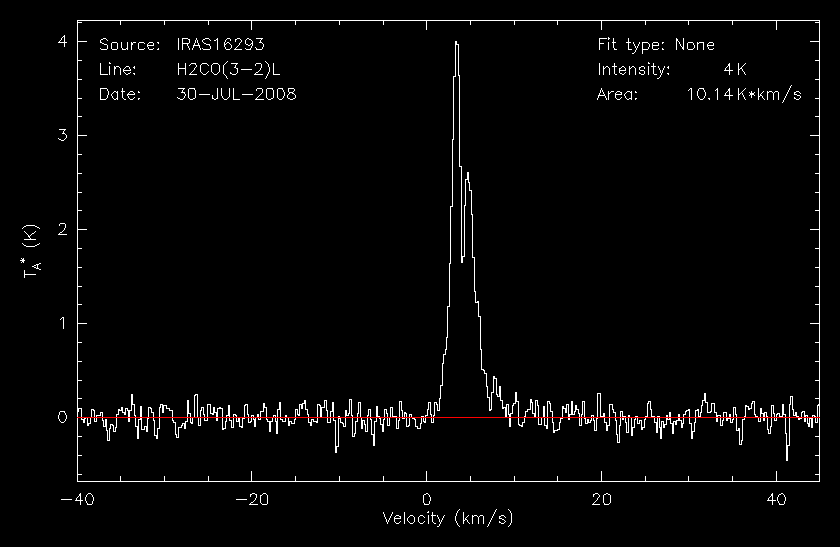

2008-07-30
1.27
36.1
4.01
10.15
4.332
2.53

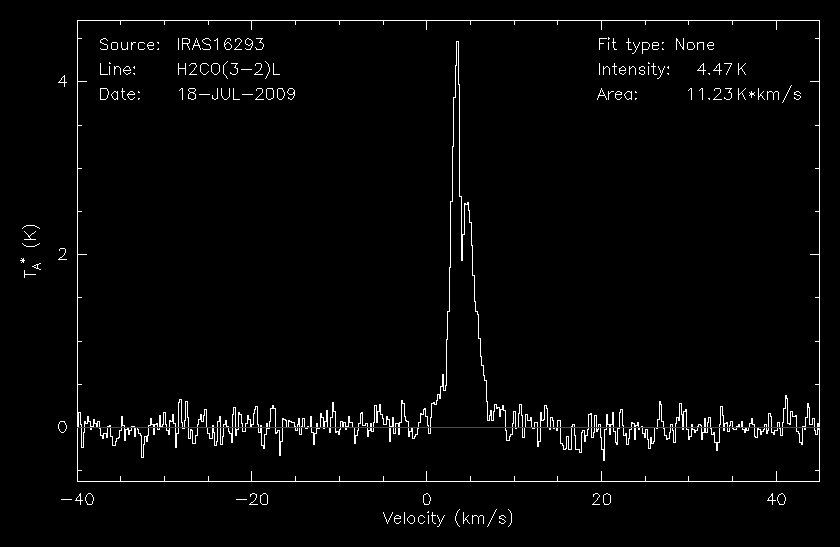

2009-07-18
2.39
41.7
4.47
11.24
4.150
2.51

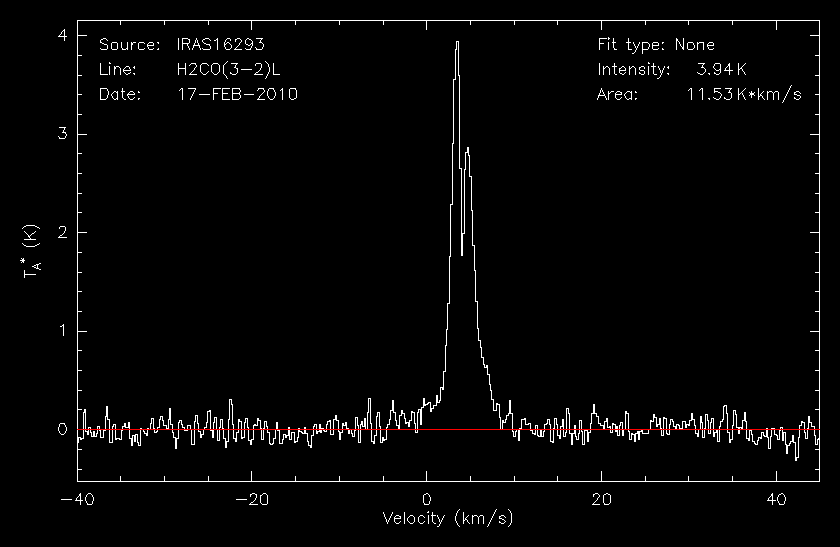

2010-02-17
0.50
31.4
3.95
11.54
3.956
2.92

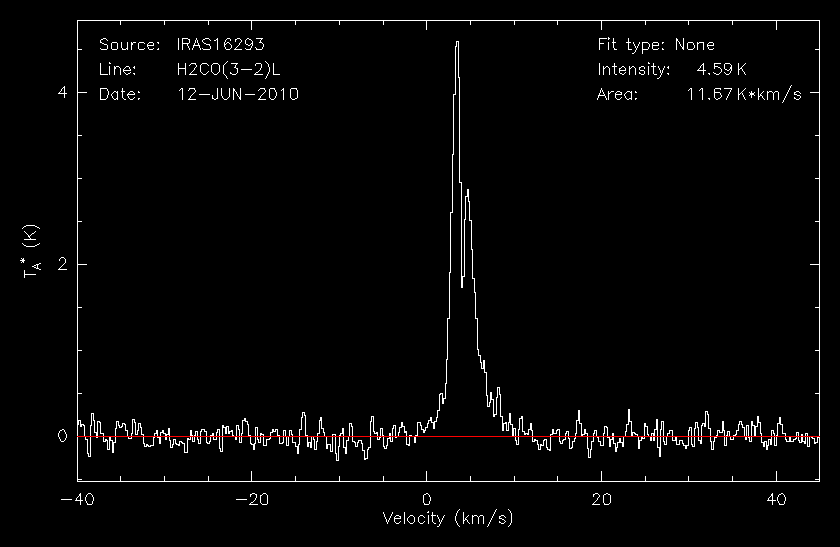

2010-06-12
1.09
51.6
4.60
11.67
4.226
2.54

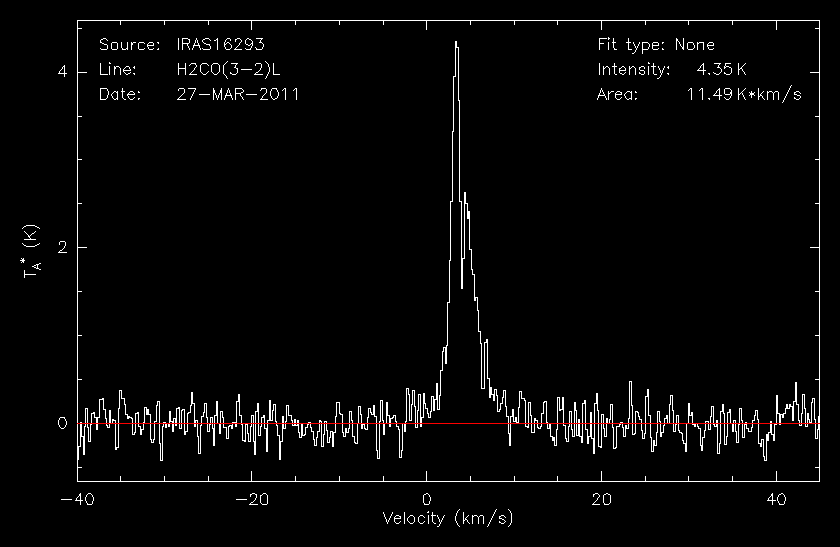

2011-03-27
6.98
55.4
4.35
11.49
4.112
2.64

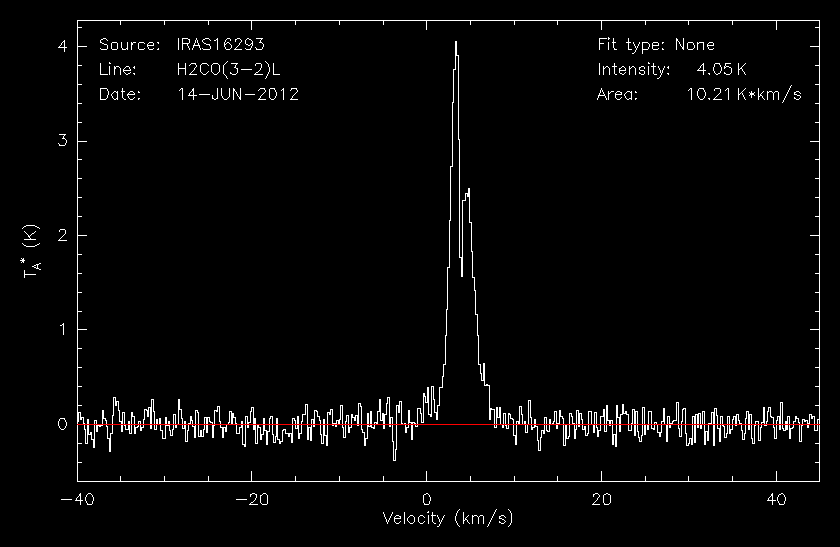

2012-06-14
1.37
34.8
4.06
10.21
3.796
2.52

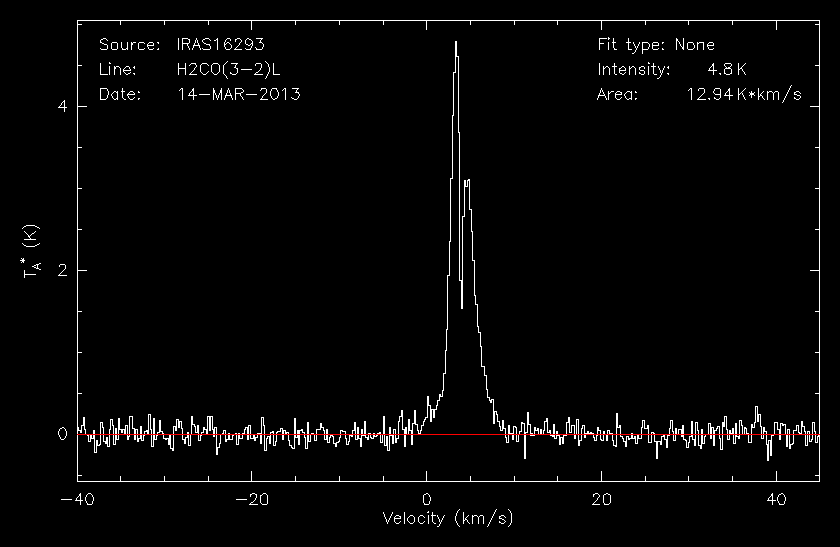

2013-03-14
0.91
35.8
4.80
12.94
4.105
2.70

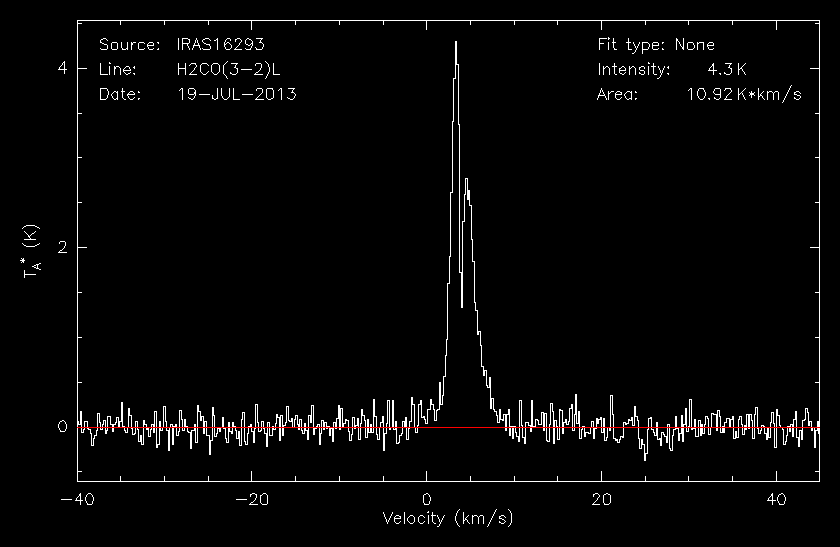

2013-07-19
2.86
67.1
4.30
10.92
4.134
2.54

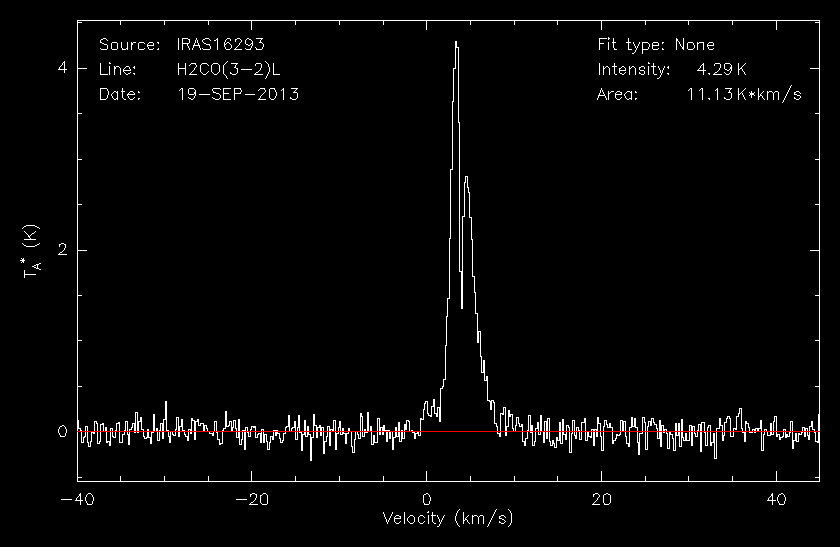

2013-09-19
1.05
52.2
4.30
11.13
4.039
2.59

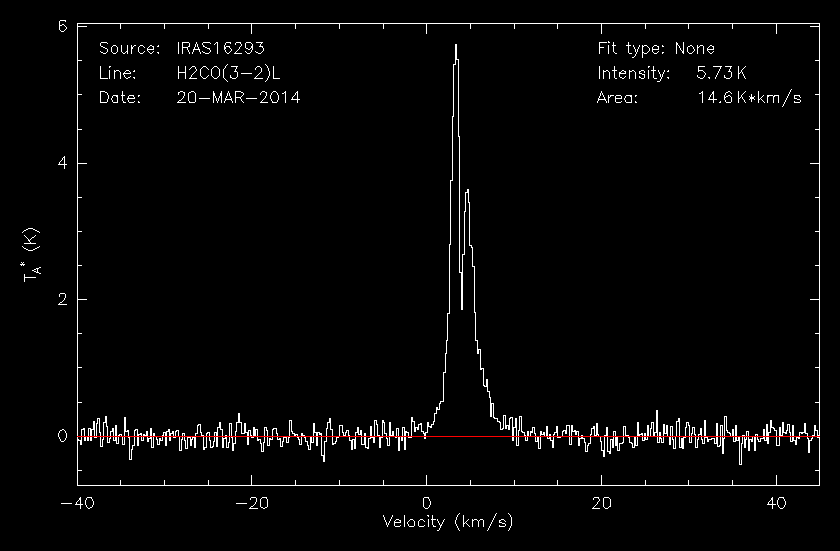

2014-03-20
1.08
35.8
5.74
14.61
4.153
2.55

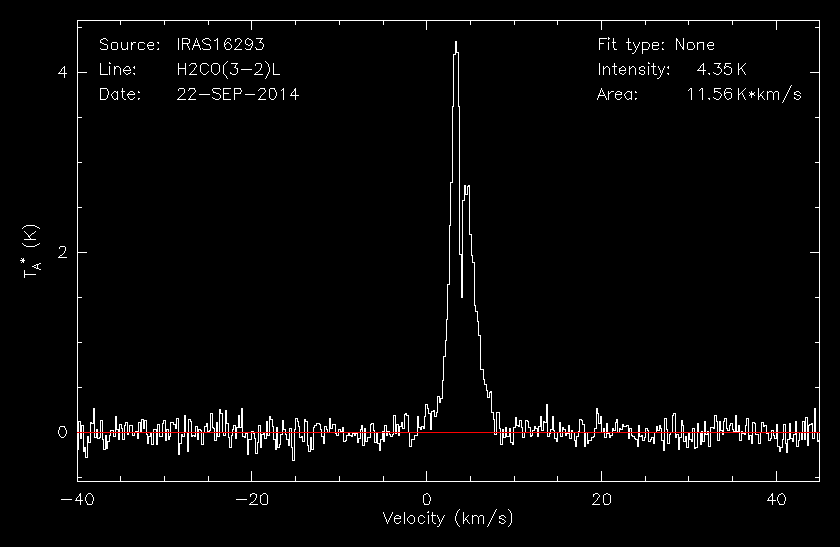

2014-09-22
2.03
61.9
4.35
11.56
4.086
2.66

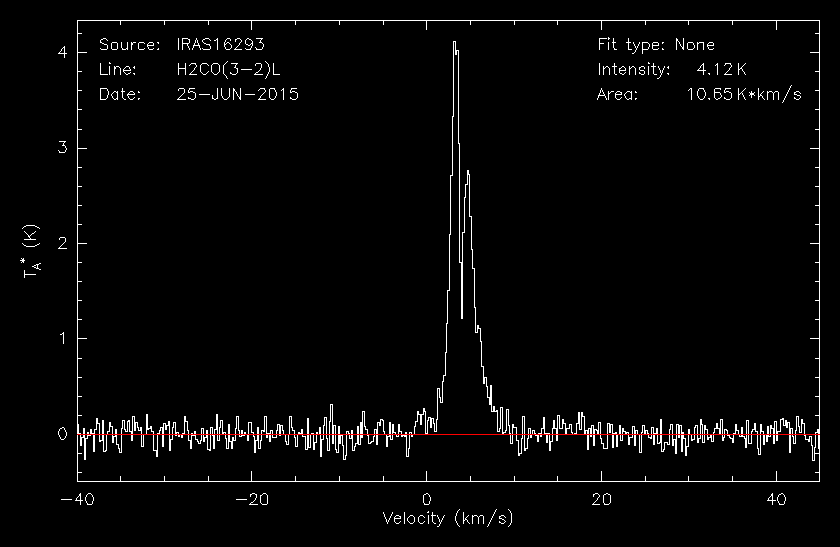

2015-06-25
1.73
44.5
4.12
10.66
4.023
2.59

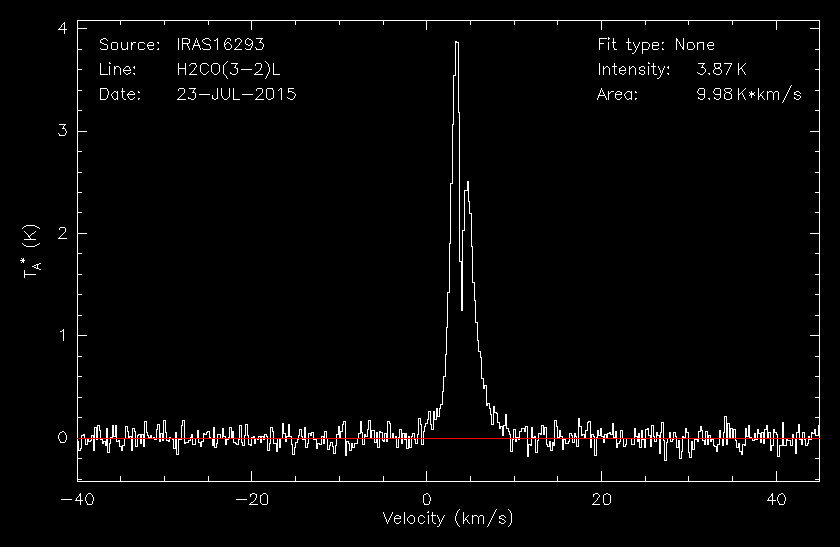

2015-07-23
2.49
71.8
3.88
9.98
4.064
2.57

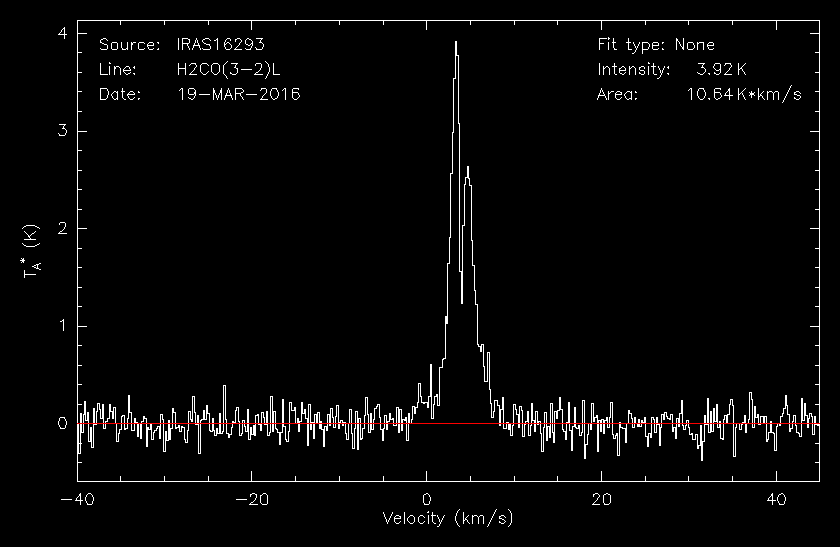

2016-03-19
4.60
60.4
3.92
10.65
3.818
2.71

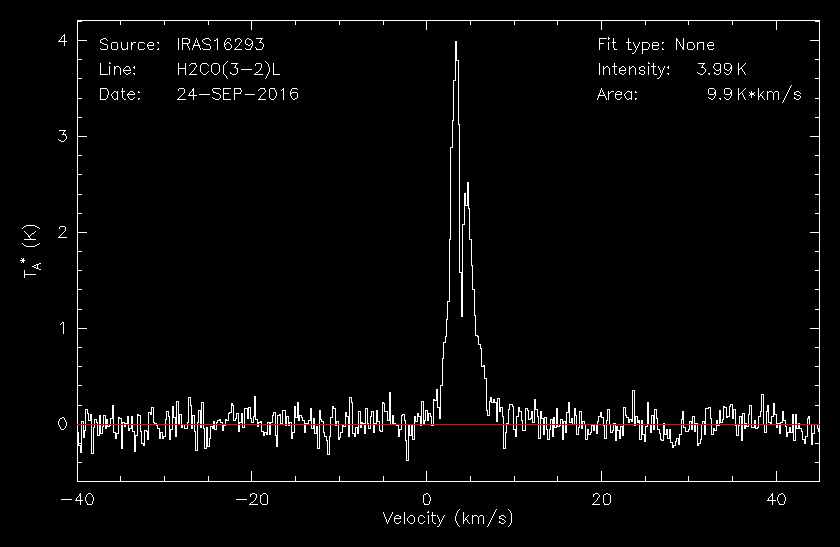

2016-09-24
3.16
41.2
3.99
9.90
4.107
2.48
