Home > Instrumentation > SHeFI receivers > APEX-1 (230 GHz) > APEX-1 Calibration

Source : G34.3

Line : CH3OH(5-4)L

Datepwv [mm]El [°] Maximum [K] Area [K*km/s] Position [km/s]Linewidth [km/s]Spectrum
2008-06-12
0.43
50.4
5.24
174.88
---
---

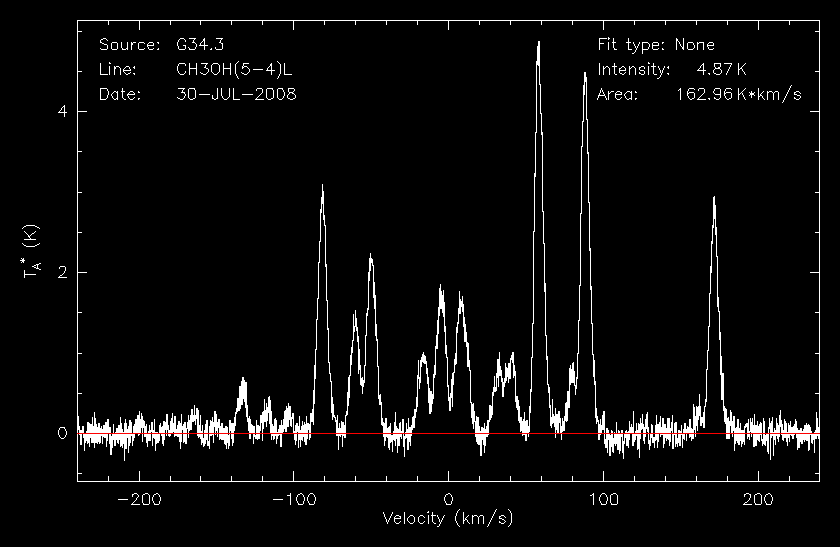

2008-07-30
1.76
28.9
4.88
162.97
---
---

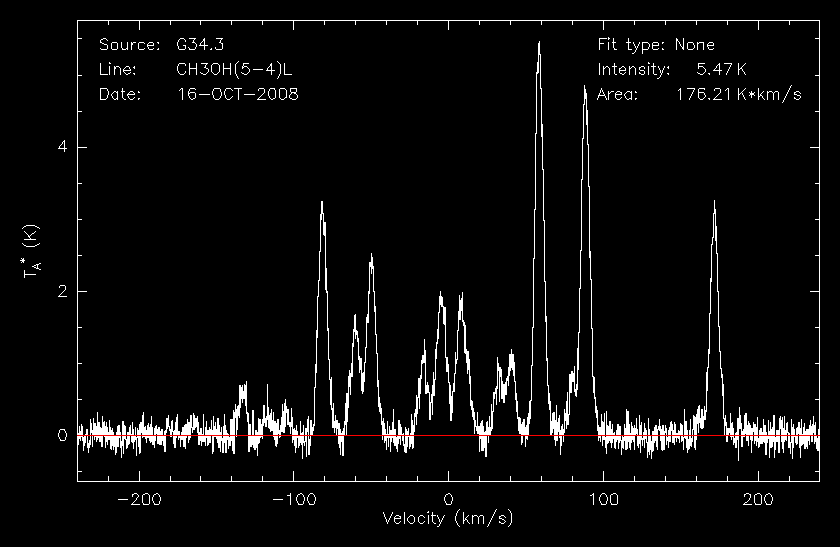

2008-10-16
3.31
39.9
5.47
176.21
---
---

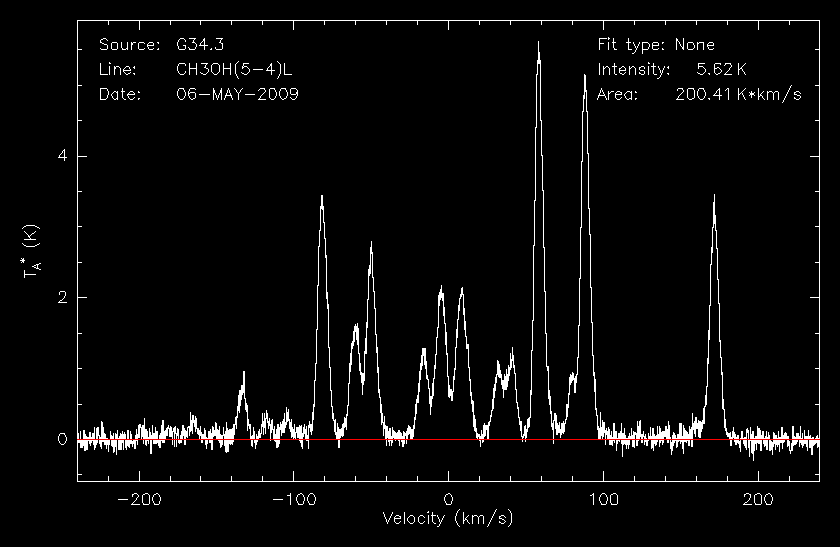

2009-05-06
1.31
45.3
5.62
200.41
---
---

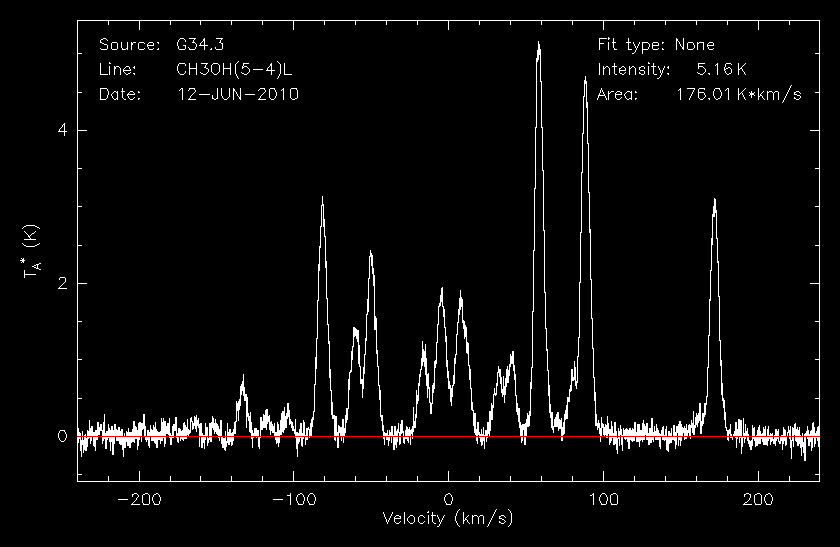

2010-06-12
1.75
58.0
5.17
176.02
---
---

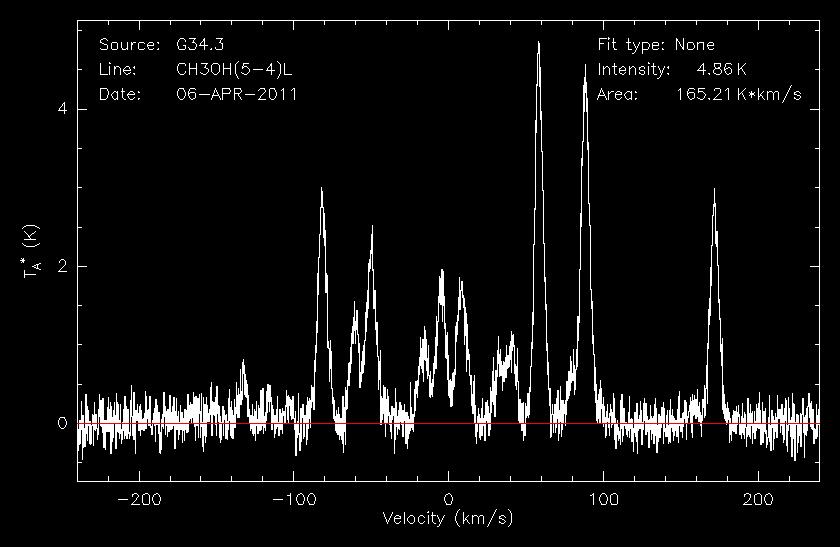

2011-04-06
6.06
36.6
4.87
165.22
---
---

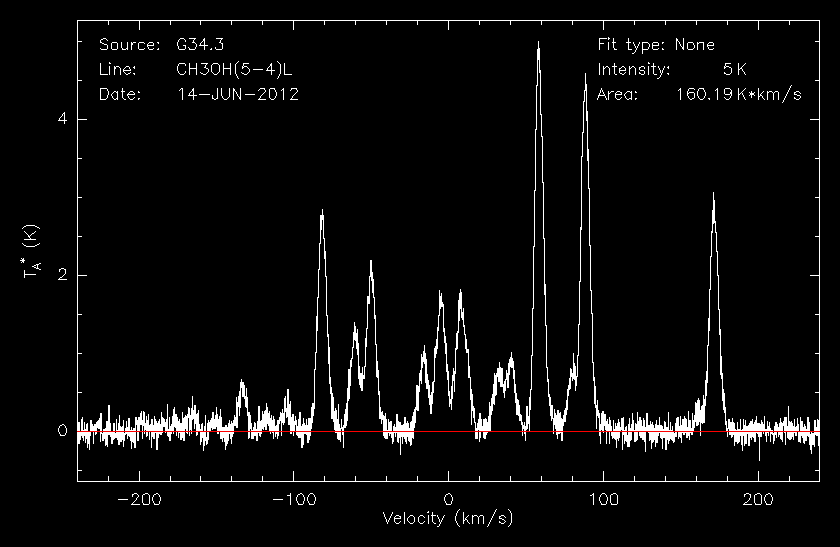

2012-06-14
1.30
34.8
5.00
160.19
---
---

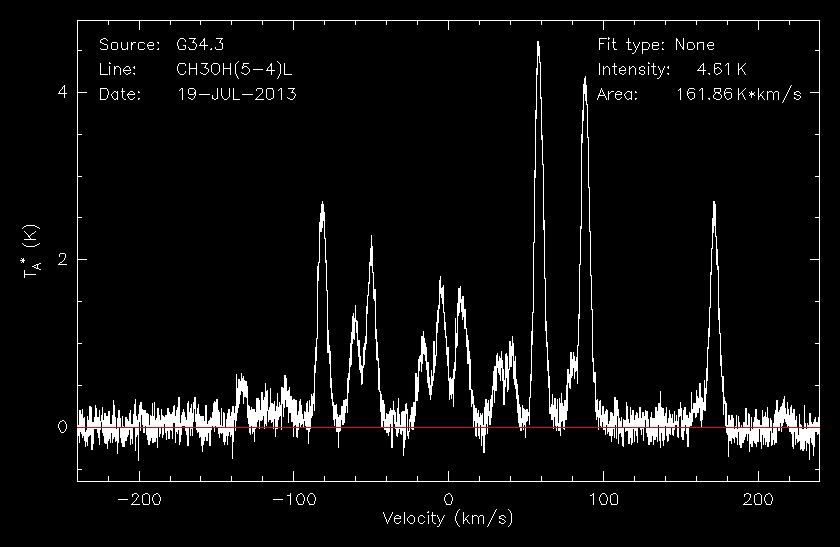

2013-07-19
2.82
50.7
4.61
161.86
---
---

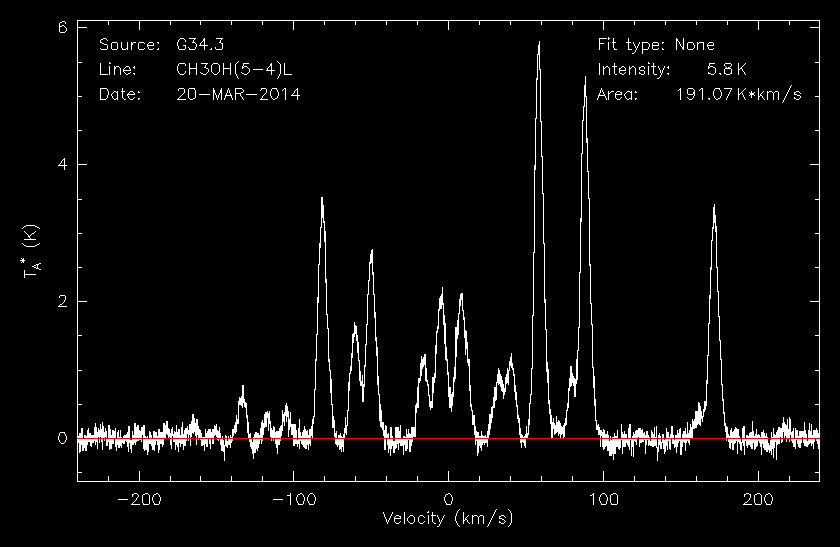

2014-03-20
1.50
44.1
5.81
191.07
---
---

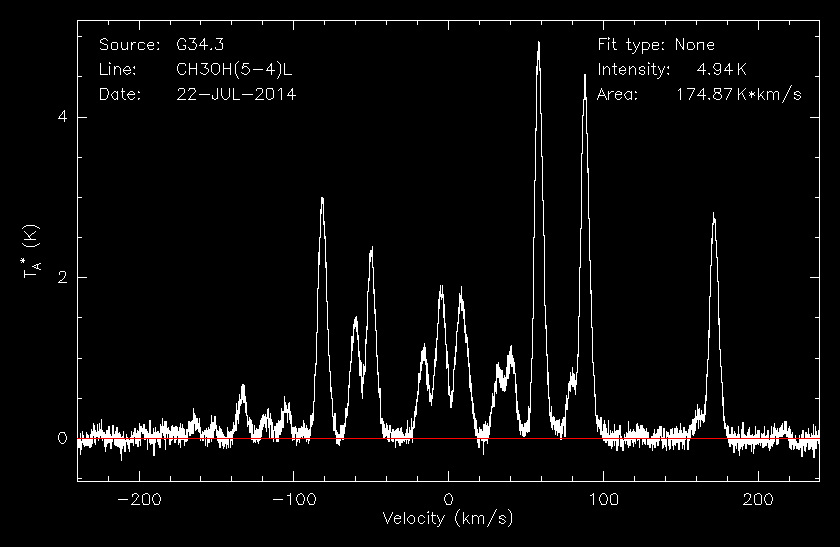

2014-07-22
0.89
54.6
4.95
174.88
---
---

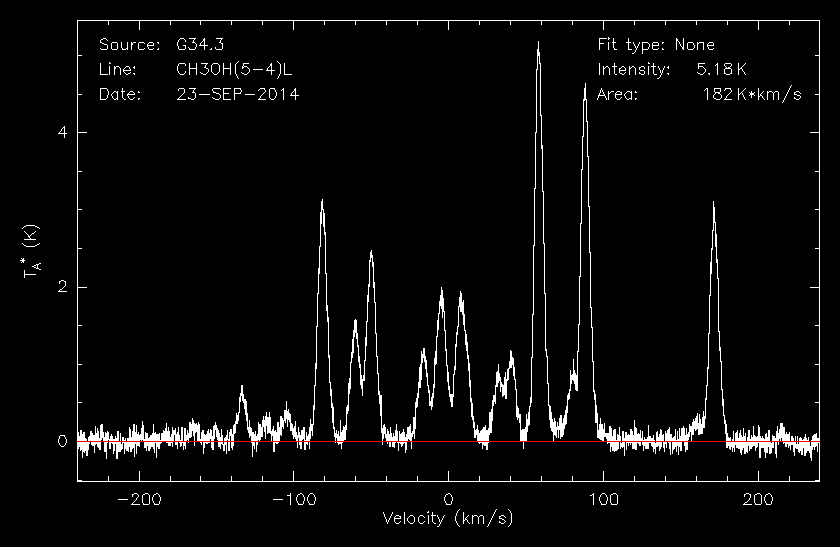

2014-09-23
1.73
59.4
5.19
182.01
---
---
2015-05-25
2.91
39.2
5.66
188.97
---
---

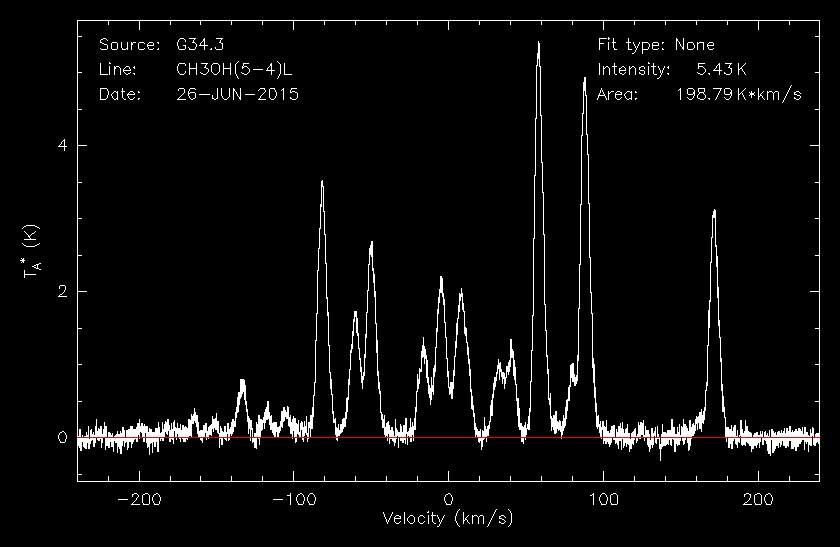

2015-06-26
1.78
48.4
5.43
198.80
---
---

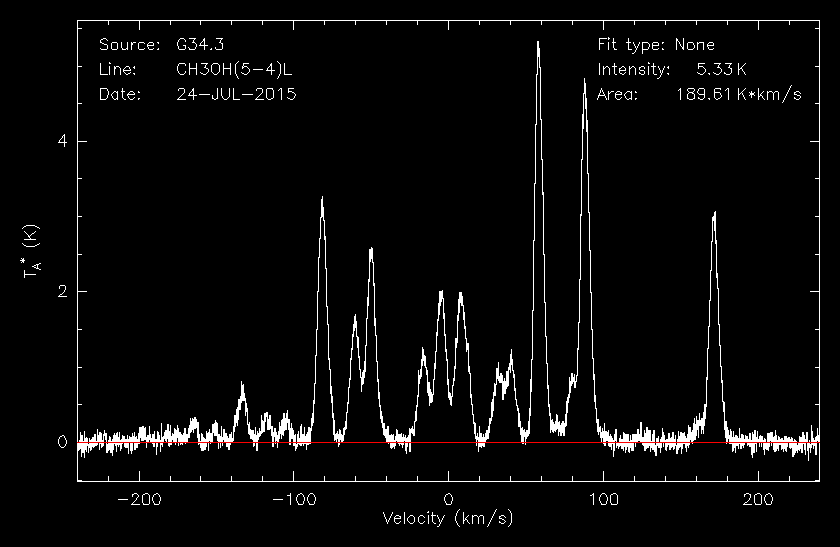

2015-07-24
1.63
51.2
5.33
189.62
---
---

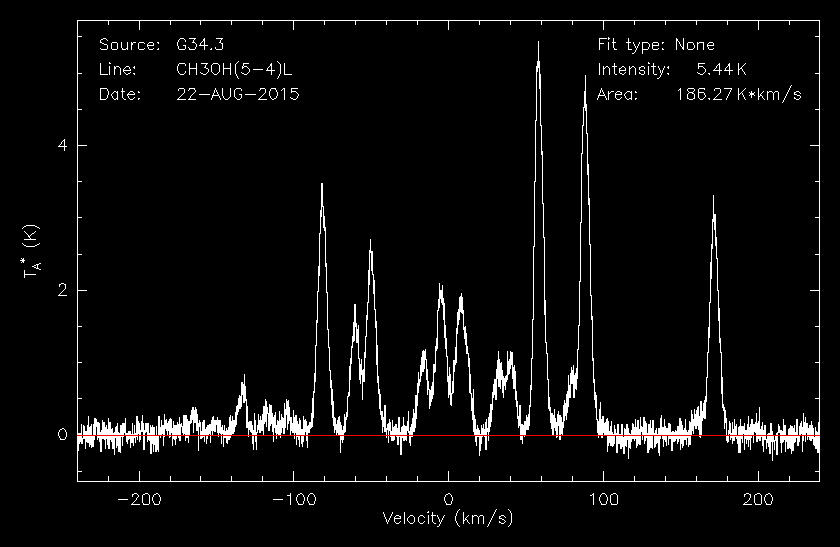

2015-08-22
4.92
64.2
5.44
186.28
---
---

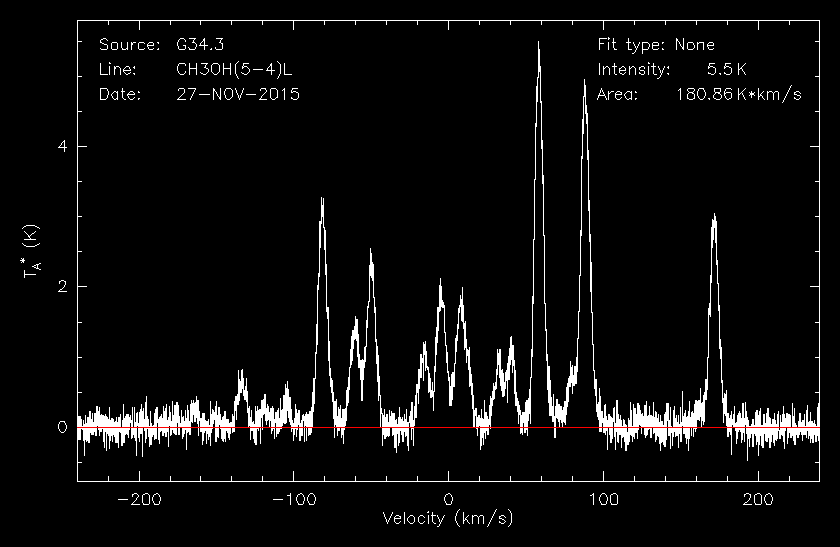

2015-11-27
4.77
34.9
5.50
180.87
---
---

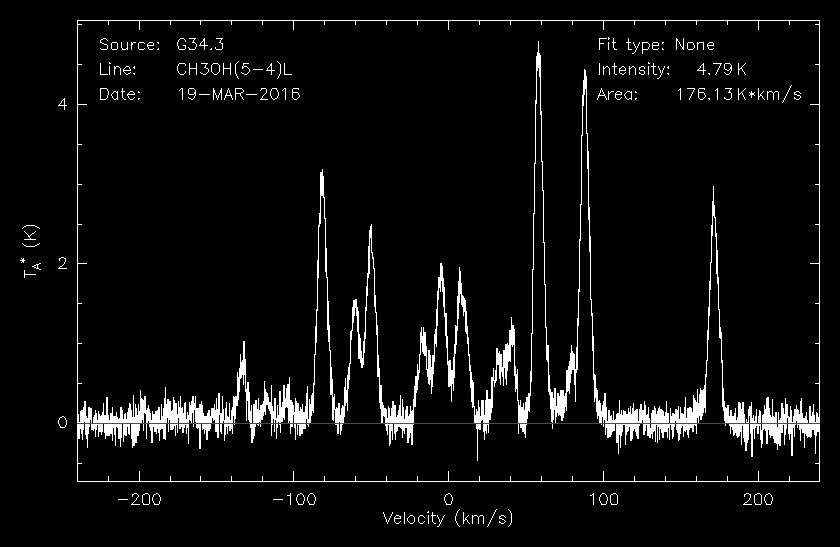

2016-03-19
4.80
40.5
4.80
176.14
---
---

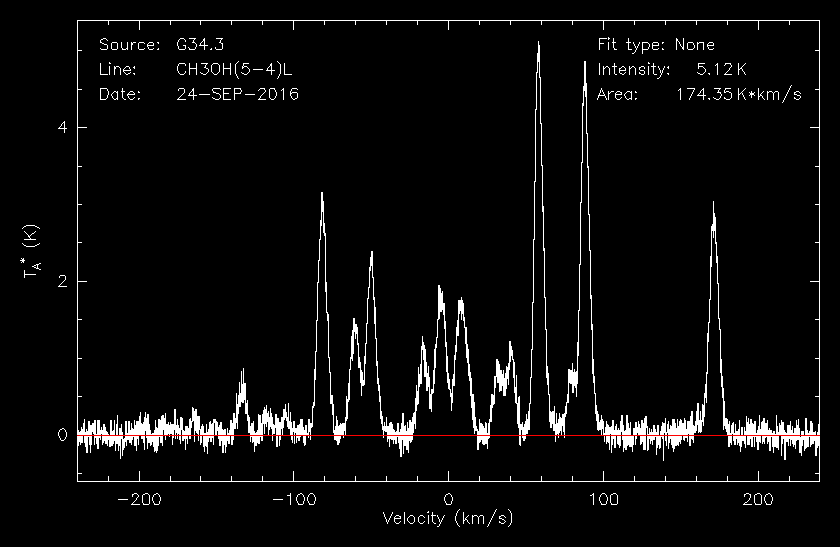

2016-09-24
2.72
32.7
5.13
174.36
---
---
